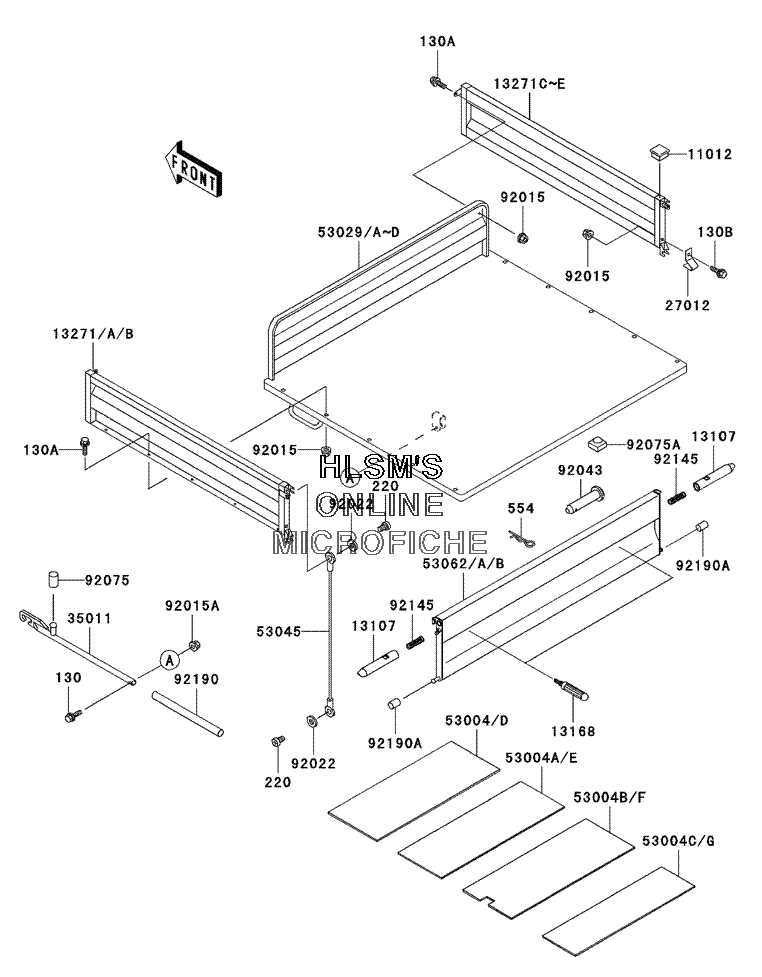

CARRIER(S) для Kawasaki MULE 3000 (KAF620-G3) - 2003 года выпуска
-
№АртикулНазвание
-
130130H0630 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
130A130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
130B130J0850 BOLT, FLANGED, 8X50BOLT, FLANGED, 8X50
-
220220F0610 SCREW, PAN, CROS, 6X10 (BLACK)SCREW, PAN, CROS, 6X10 (BLACK)
-
554554A1200 PIN, SNAP, 12MMPIN, SNAP, 12MM
-
1101211012-1784 CAPCAP
-
1310713107-1453 SHAFTSHAFT
-
1316813168-1695 LEVERLEVER
-
13271A13271-1430-B9 PLATE, CARRIER, SIDE (LEFT) (H.GREEN)PLATE, CARRIER, SIDE (LEFT) (H.GREEN)
-
13271B13271-1430-467 PLATE, CARRIER, SIDE (LEFT) (A.RED)PLATE, CARRIER, SIDE (LEFT) (A.RED)
-
13271D13271-1433-B9 PLATE, CARRIER, SIDE (RIGHT) (H.GREEN)PLATE, CARRIER, SIDE (RIGHT) (H.GREEN)
-
13271E13271-1433-467 PLATE, CARRIER, SIDE (RIGHT) (A.RED)PLATE, CARRIER, SIDE (RIGHT) (A.RED)
-
2701227012-1406 HOOK, TAIL GATEHOOK, TAIL GATE
-
3501135011-1648 STAY, CARRIER STOPPERSTAY, CARRIER STOPPER
-
53004D53004-1157 MATMAT
-
53004E53004-1158 MATMAT
-
53004F53004-1159 MATMAT
-
53004G53004-1160 MATMAT
-
53029C53029-1246-B9 CARRIER (H.GREEN)CARRIER (H.GREEN)
-
53029D53029-1246-467 CARRIER (A.RED)CARRIER (A.RED)
-
5304553045-1065 HOOK, ASSY., TAIL GATEHOOK, ASSY., TAIL GATE
-
53062A53062-1006-B9 GATE, TAIL (H.GREEN)GATE, TAIL (H.GREEN)
-
53062B53062-1006-467 GATE, TAIL (A.RED)GATE, TAIL (A.RED)
-
9201592015-1408 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9204392043-1428 PIN, 12X65PIN, 12X65
-
9207592075-1817 DAMPERDAMPER
-
92075A92075-1882 DAMPERDAMPER
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9219092190-1401 TUBE, 13X16X200TUBE, 13X16X200
-
92190A92190-1467 TUBE, 8X10X15TUBE, 8X10X15
