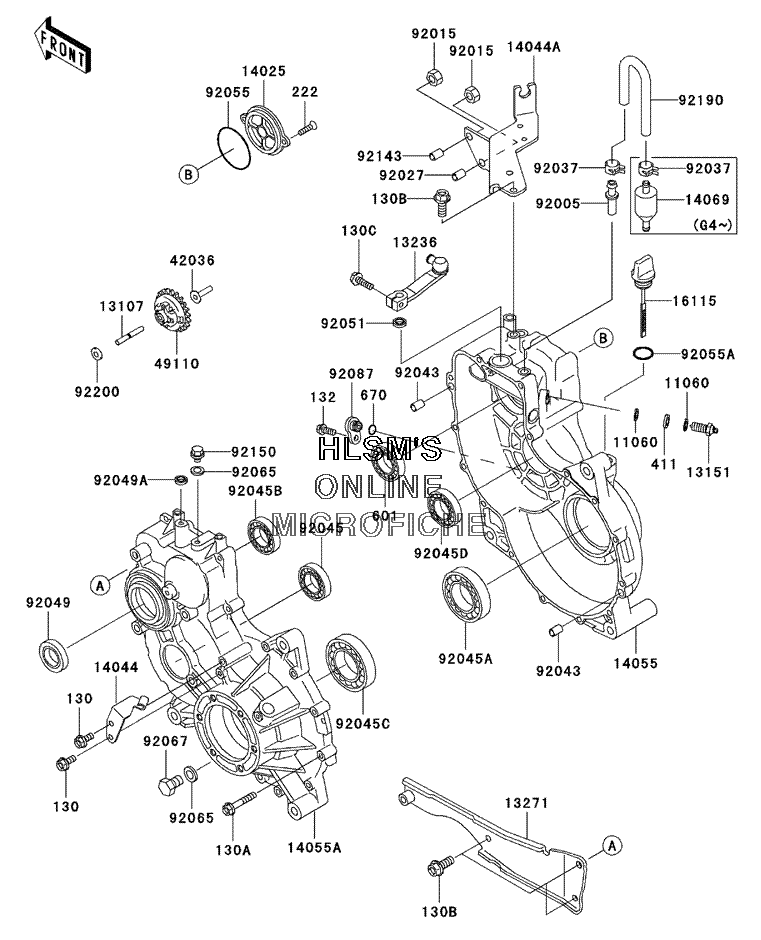

GEAR BOX для Kawasaki MULE 3000 (KAF620-G3) - 2003 года выпуска
-
№АртикулНазвание
-
130130D0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
130A130H0635 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
130B130H0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
130C130T0620 BOLT, FLANGEDBOLT, FLANGED
-
1106011060-1966 GASKETGASKET
-
1310713107-2235 SHAFTSHAFT
-
1315113151-1093 SWITCH, COMPSWITCH, COMP
-
1323613236-1372 LEVER, COMPLEVER, COMP
-
1327113271-1604 PLATEPLATE
-
1402514025-1813 COVERCOVER
-
1404414044-1065 HOLDER, CABLEHOLDER, CABLE
-
14044A14044-1098 HOLDER, CABLEHOLDER, CABLE
-
1405514055-1112 CASE, GEAR (RIGHT)CASE, GEAR (RIGHT)
-
14055A14055-1158 CASE, GEAR (LEFT)CASE, GEAR (LEFT)
-
1611516115-1060 CAP, OIL FILLERCAP, OIL FILLER
-
4203642036-2060 SLEEVESLEEVE
-
4911049110-1104 GOVERNOR, ASSY.GOVERNOR, ASSY.
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9202792027-1568 COLLAR, 8.3X11.5X9COLLAR, 8.3X11.5X9
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1142 BEARING, BALL, TMB304CCMBEARING, BALL, TMB304CCM
-
92045A92045-1162 BEARING, BALL, 6010CMBEARING, BALL, 6010CM
-
92045B92045-1207 BEARING, BALL, 62/28BEARING, BALL, 62/28
-
92045C92045-1213 BEARING, BALL, 6210CMBEARING, BALL, 6210CM
-
92045D92045-1285 BEARING, BALL, TMB205JR2BEARING, BALL, TMB205JR2
-
9204992049-1297 SEAL, OIL, TC28X47X7SEAL, OIL, TC28X47X7
-
92049A92049-2097 SEAL, OIL, VC, 6X10X2.5SEAL, OIL, VC, 6X10X2.5
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205592055-1120 O-RING, 55MMO-RING, 55MM
-
92055A92055-2185 O-RING, 20MMO-RING, 20MM
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9208792087-1058 BUSHING, METER GEARBUSHING, METER GEAR
-
9214392143-1642 COLLAR, 8.5X15X9COLLAR, 8.5X15X9
-
9215092150-1900 BOLTBOLT
-
9219092190-3807 TUBETUBE
-
9220092200-2036 WASHER, 6.2X20X0.5WASHER, 6.2X20X0.5
-
132132J0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
222222B0614 SCREW, CSK, RD, CROSSCREW, CSK, RD, CROS
-
411411B1000 WASHER, PLAIN, 10MMWASHER, PLAIN, 10MM
-
601601B6007 BEARING, BALL, #6007C3BEARING, BALL, #6007C3
-
670670D1510 O-RING, 10MMO-RING, 10MM
