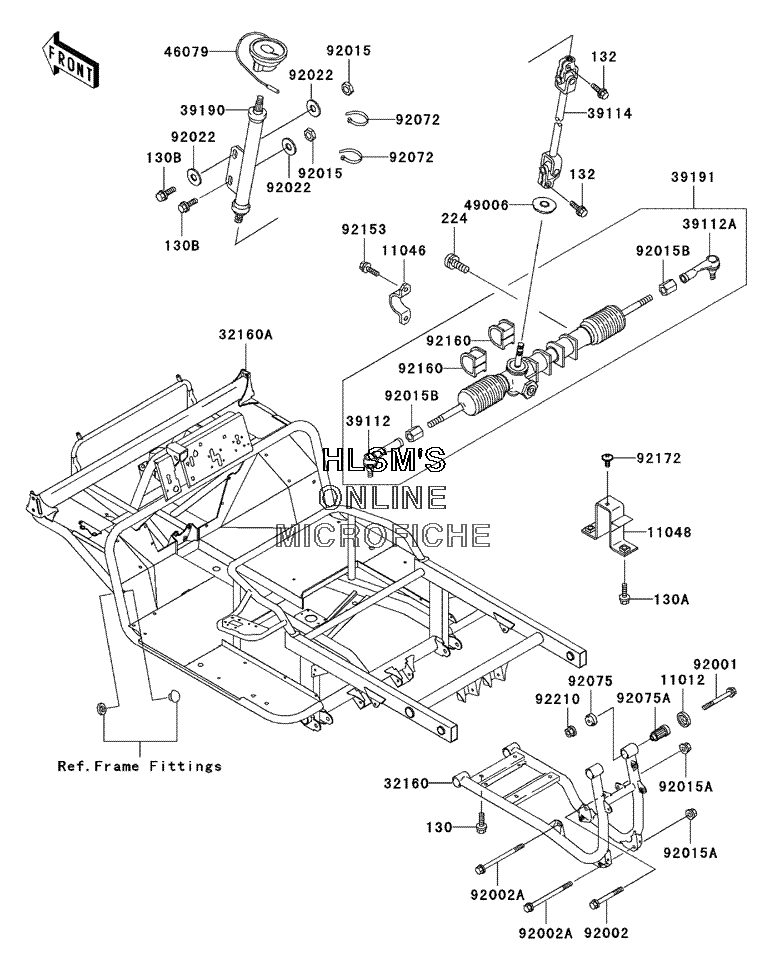

FRAME для Kawasaki MULE 3000 (KAF620-G3) - 2003 года выпуска
-
№АртикулНазвание
-
130130H0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
130A130J0820 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
130B130J1030 BOLT, FLANGED, 10X30BOLT, FLANGED, 10X30
-
132132J0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
224224B0508 SCREW, PAN, WP, CROS 5X8SCREW, PAN, WP, CROS 5X8
-
1101211012-1228 CAP, ENGINE BRACKETCAP, ENGINE BRACKET
-
1104611046-1858 BRACKET, STEERING GEARBRACKET, STEERING GEAR
-
1104811048-1245 BRACKET, REAR FRAMEBRACKET, REAR FRAME
-
3216032160-7506 FRAME, COMP, REARFRAME, COMP, REAR
-
3911239112-1068 RODEND, TIE, STEERING GEAR (LEFT)RODEND, TIE, STEERING GEAR (LEFT)
-
39112A39112-1069 RODEND, TIE, STEERING GEAR (RIGHT)RODEND, TIE, STEERING GEAR (RIGHT)
-
3911439114-1070 SHAFT, COMP, STRGSHAFT, COMP, STRG
-
3919039190-1006 SHAFT, ASSY., STEERINGSHAFT, ASSY., STEERING
-
3919139191-1007 GEAR, ASSY., STEERINGGEAR, ASSY., STEERING
-
4607946079-1063 CONTACT, HORN SWITCHCONTACT, HORN SWITCH
-
4900649006-1255 BOOT, STEERING SHAFT, LOWERBOOT, STEERING SHAFT, LOWER
-
9200192001-1619 BOLT, FLANGED, 10X85BOLT, FLANGED, 10X85
-
9200292002-1764 BOLT, FLANGED, 10X80BOLT, FLANGED, 10X80
-
92002A92002-1765 BOLT, FLANGED, 10X145BOLT, FLANGED, 10X145
-
9201592015-1189 NUT, LOCK, 10MM (BLACK)NUT, LOCK, 10MM (BLACK)
-
92015A92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
92015B92015-1864 NUTNUT
-
9202292022-1396 WASHER, 10.5X26X2.3 (BLACK)WASHER, 10.5X26X2.3 (BLACK)
-
9207292072-1239 BAND, L=188BAND, L=188
-
9207592075-1274 DAMPER, ENGINE MOUNT, SIDEDAMPER, ENGINE MOUNT, SIDE
-
92075A92075-1377 DAMPER, ENGINE MOUNT, MAINDAMPER, ENGINE MOUNT, MAIN
-
9215392153-1269 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9216092160-1084 DAMPER, STEERING GEARDAMPER, STEERING GEAR
-
9217292172-0004 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9221092210-1081 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
