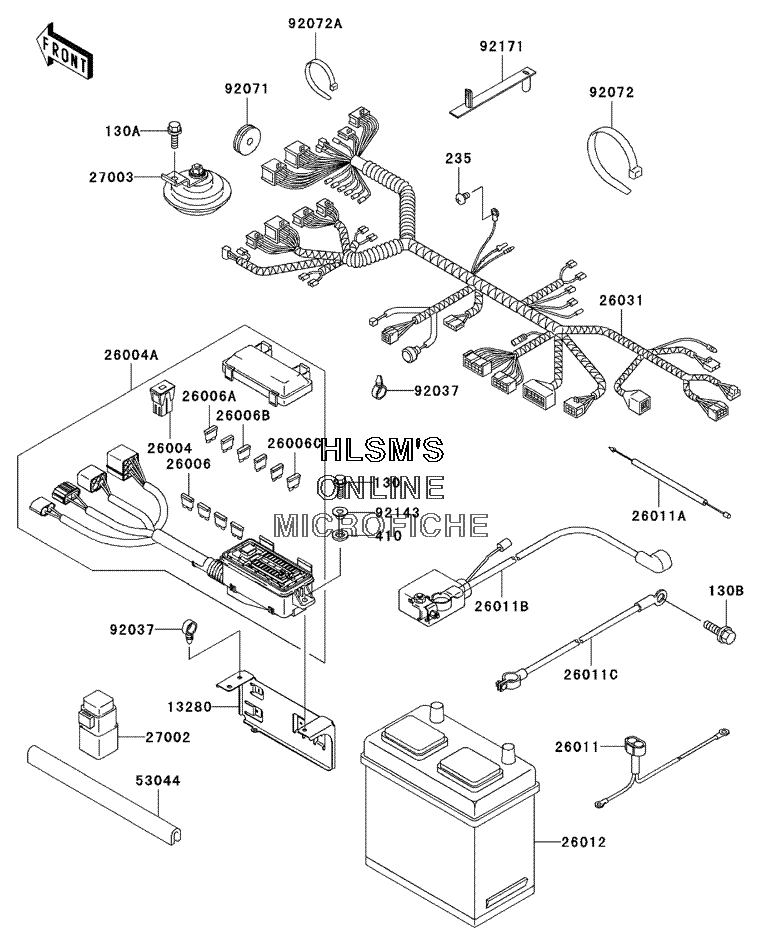

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B1) - 2003 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT-FLANGED, 6X16 (BLACK)BOLT-FLANGED, 6X16 (BLACK)
-
130A130J0620 BOLT-FLANGEDBOLT-FLANGED
-
130B130J0812 BOLT-FLANGEDBOLT-FLANGED
-
235235B0610 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
-
410410F1000 WASHER-PLAIN-SMALL, 10MM (BLACK)WASHER-PLAIN-SMALL, 10MM (BLACK)
-
1328013280-1220 HOLDERHOLDER
-
2600426004-1096 FUSE-ASSY, 50AFUSE-ASSY, 50A
-
26004A26004-7502 FUSE-ASSYFUSE-ASSY
-
2600626006-1077 FUSE, 5AFUSE, 5A
-
26006A26006-1078 FUSE, 10AFUSE, 10A
-
26006B26006-1079 FUSE, 20AFUSE, 20A
-
26006C26006-1080 FUSE, 30AFUSE, 30A
-
2601126011-7508 WIRE-LEAD, ALTERNATORWIRE-LEAD, ALTERNATOR
-
26011A26011-7509 WIRE-LEAD, OIL PRESSURE SWITCHWIRE-LEAD, OIL PRESSURE SWITCH
-
26011B26011-7512 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011C26011-7513 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-1377 BATTERYBATTERY
-
2603126031-7502 HARNESS, MAINHARNESS, MAIN
-
2700227002-1068 RELAY-ASSYRELAY-ASSY
-
2700327003-1276 HORNHORN
-
5304453044-1137 TRIMTRIM
-
9203792037-1827 CLAMP, HOSECLAMP, HOSE
-
9207192071-1136 GROMMETGROMMET
-
9207292072-1197 BAND, L=365BAND, L=365
-
92072A92072-1239 BAND, L=188BAND, L=188
-
9214392143-1057 COLLARCOLLAR
-
9217192171-1365 CLAMPCLAMP
