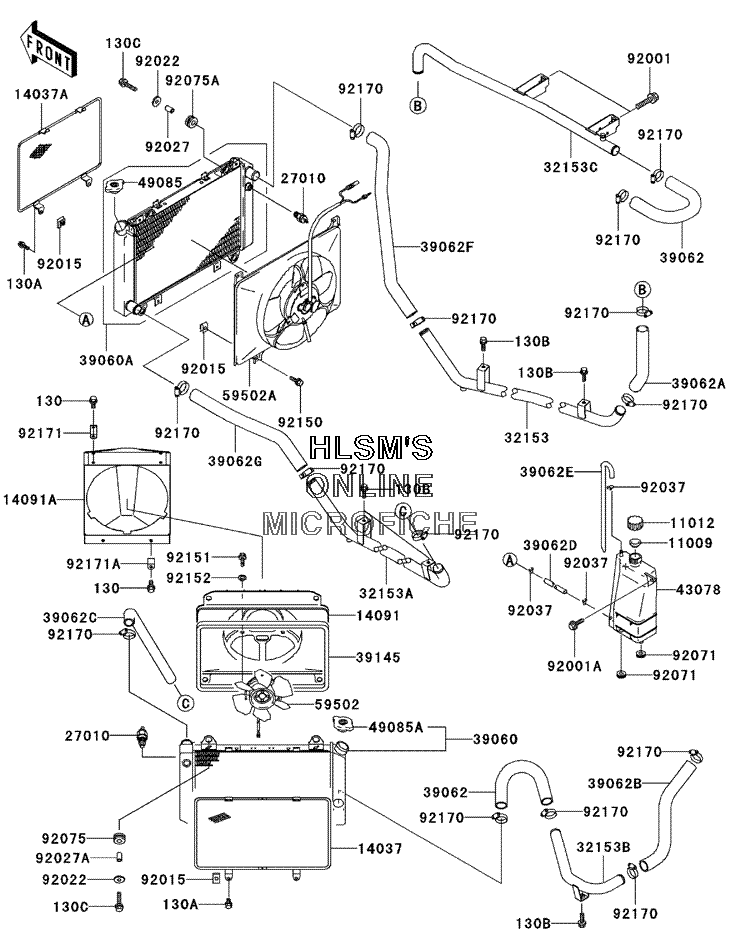

RADIATOR для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B1) - 2003 года выпуска
-
№АртикулНазвание
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1403714037-1258 SCREENSCREEN
-
14037A14037-1284 SCREENSCREEN
-
1409114091-1135 COVER, SHROUDCOVER, SHROUD
-
14091A14091-1216 COVERCOVER
-
2701027010-1317 SWITCH, FANSWITCH, FAN
-
3215332153-1056 PIPE (RIGHT)PIPE (RIGHT)
-
32153A32153-1255 PIPE (LEFT/FRONT)PIPE (LEFT/FRONT)
-
32153B32153-1256 PIPE (LEFT/REAR)PIPE (LEFT/REAR)
-
32153C32153-1933 PIPEPIPE
-
3906039060-1184 RADIATORRADIATOR
-
39060A39060-1187 RADIATORRADIATOR
-
3906239062-1797 HOSE-COOLINGHOSE-COOLING
-
39062A39062-1799 HOSE-COOLINGHOSE-COOLING
-
39062B39062-1800 HOSE-COOLINGHOSE-COOLING
-
39062C39062-1826 HOSE-COOLINGHOSE-COOLING
-
39062D39062-1829 HOSE-COOLINGHOSE-COOLING
-
39062E39062-1830 HOSE-COOLINGHOSE-COOLING
-
39062F39062-1834 HOSE-COOLINGHOSE-COOLING
-
39062G39062-1835 HOSE-COOLINGHOSE-COOLING
-
3914539145-1119 TRIM-SEALTRIM-SEAL
-
4307843078-1185 RESERVOIRRESERVOIR
-
4908549085-1066 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
49085A49085-1068 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-1134 FAN-ASSYFAN-ASSY
-
59502A59502-1137 FAN-ASSYFAN-ASSY
-
9200192001-1613 BOLT, FLANGED, 8X45BOLT, FLANGED, 8X45
-
92001A92001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9201592015-1487 NUTNUT
-
9202292022-1317 WASHER, 8.5X20X1.6 (BLACK)WASHER, 8.5X20X1.6 (BLACK)
-
9202792027-102 COLLAR, 8.8X12X10.7COLLAR, 8.8X12X10.7
-
92027A92027-1763 COLLAR, 8.2X10.5X15.6COLLAR, 8.2X10.5X15.6
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207192071-1115 GROMMETGROMMET
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
92075A92075-294 DAMPERDAMPER
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9215192151-1305 BOLT, 5X12BOLT, 5X12
-
9215292152-1241 COLLARCOLLAR
-
130130J0610 BOLT-FLANGEDBOLT-FLANGED
-
130A130J0612 BOLT-FLANGEDBOLT-FLANGED
-
130B130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
130C130J0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9217192171-1186 CLAMP, UPPERCLAMP, UPPER
-
92171A92171-1187 CLAMP, LOWERCLAMP, LOWER
