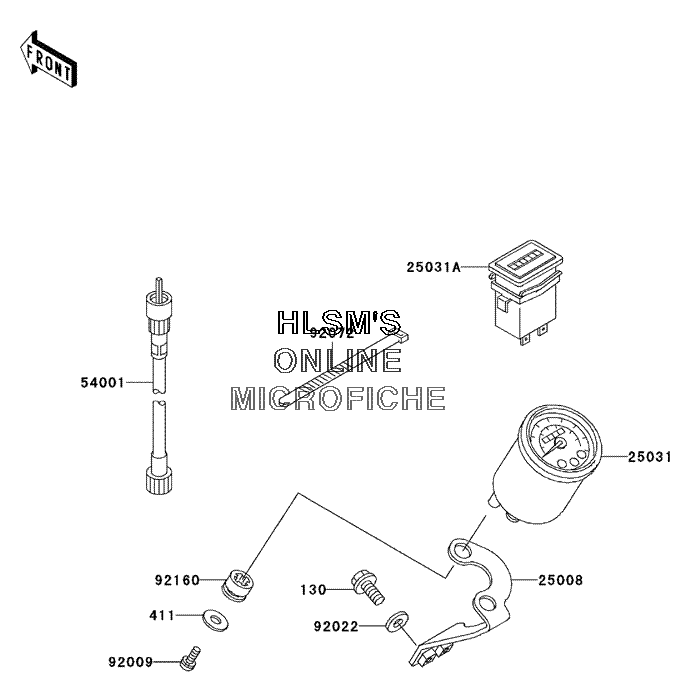

METER(S) для Kawasaki MULE 3010 Diesel 4x4 (KAF950-B1) - 2003 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
411411B0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
2500825008-1228 BRACKET-METERBRACKET-METER
-
2503125031-1190 METER-ASSY, MPHMETER-ASSY, MPH
-
25031A25031-7505 METER-ASSY, HOURMETER-ASSY, HOUR
-
5400154001-1135 CABLE-SPEEDOMETERCABLE-SPEEDOMETER
-
9200992009-3740 SCREW, 5X12SCREW, 5X12
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9207292072-1239 BAND, L=188BAND, L=188
-
9216092160-1461 DAMPERDAMPER
