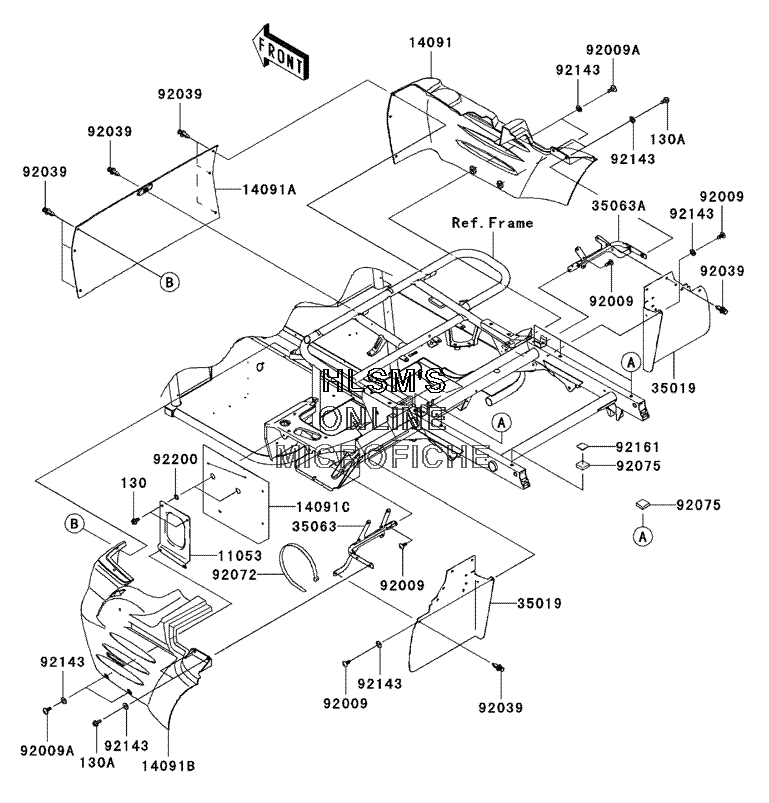

FRAME FITTINGS (REAR) для Kawasaki MULE 600 (KAF400-B1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
1105311053-0857 BRACKETBRACKET
-
1409114091-0224-283 COVER, REAR SIDE (RIGHT) (BLACK)COVER, REAR SIDE (RIGHT) (BLACK)
-
14091A14091-0341-283 COVER, FRONTONT GRILLE (BLACK)COVER, FRONTONT GRILLE (BLACK)
-
14091B14091-0395-283 COVER, REAR SIDE (LEFT) (BLACK)COVER, REAR SIDE (LEFT) (BLACK)
-
14091C14091-0464 COVERCOVER
-
3501935019-0029 FLAP, REAR, FRONTFLAP, REAR, FRONT
-
3506335063-0186 STAY (LEFT)STAY (LEFT)
-
35063A35063-0187 STAY (RIGHT)STAY (RIGHT)
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9203992039-1229 RIVETRIVET
-
9207292072-1197 BAND, L=365BAND, L=365
-
9207592075-1882 DAMPERDAMPER
-
9214392143-1087 COLLARCOLLAR
-
9216192161-0256 DAMPERDAMPER
-
9220092200-0234 WASHER, 7.04X12.5X0.6WASHER, 7.04X12.5X0.6
