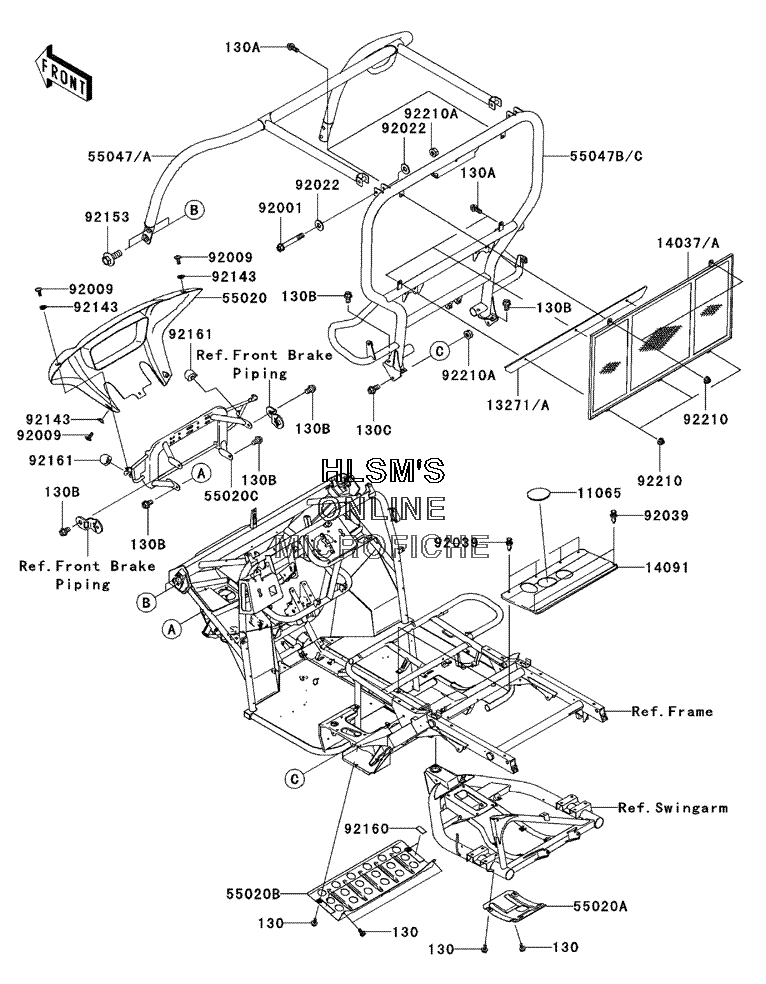

GUARD(S) / CAB FRAME для Kawasaki MULE 600 (KAF400-B1) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130J1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
130C130J1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
1106511065-1053-6Z CAP (F.BLACK)CAP (F.BLACK)
-
1327113271-0560-B9 PLATE, SCREEN (H.GREEN) (US ONLY)PLATE, SCREEN (H.GREEN) (US ONLY)
-
13271A13271-0560-467 PLATE, SCREEN (A.RED)PLATE, SCREEN (A.RED)
-
1403714037-0035-B9 SCREEN (H.GREEN) (US ONLY)SCREEN (H.GREEN) (US ONLY)
-
14037A14037-0035-467 SCREEN (A.RED)SCREEN (A.RED)
-
1409114091-0355 COVERCOVER
-
5502055020-0090-283 GUARD, FRONT BUMPER (BLACK)GUARD, FRONT BUMPER (BLACK)
-
55020A55020-0141 GUARD, DIFFGUARD, DIFF
-
55020B55020-0143 GUARDGUARD
-
55020C55020-0163 GUARD, FRONTGUARD, FRONT
-
5504755047-0006-B9 BAR-COMP, FRONT (H.GREEN) (US ONLY)BAR-COMP, FRONT (H.GREEN) (US ONLY)
-
55047A55047-0006-467 BAR-COMP, FRONT (A.RED)BAR-COMP, FRONT (A.RED)
-
55047B55047-0008-B9 BAR-COMP, REAR (H.GREEN) (US ONLY)BAR-COMP, REAR (H.GREEN) (US ONLY)
-
55047C55047-0008-467 BAR-COMP, REAR (A.RED)BAR-COMP, REAR (A.RED)
-
9200192001-1618 BOLT, FLANGED, 10X70BOLT, FLANGED, 10X70
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-1396 WASHER, 10.5X26X2.3 (BLACK)WASHER, 10.5X26X2.3 (BLACK)
-
9203992039-1229 RIVETRIVET
-
9214392143-1087 COLLARCOLLAR
-
9215392153-1282 BOLT, FLANGED, 14X36BOLT, FLANGED, 14X36
-
9216092160-1102 DAMPERDAMPER
-
9216192161-0157 DAMPERDAMPER
-
9221092210-0005 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
92210A92210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
