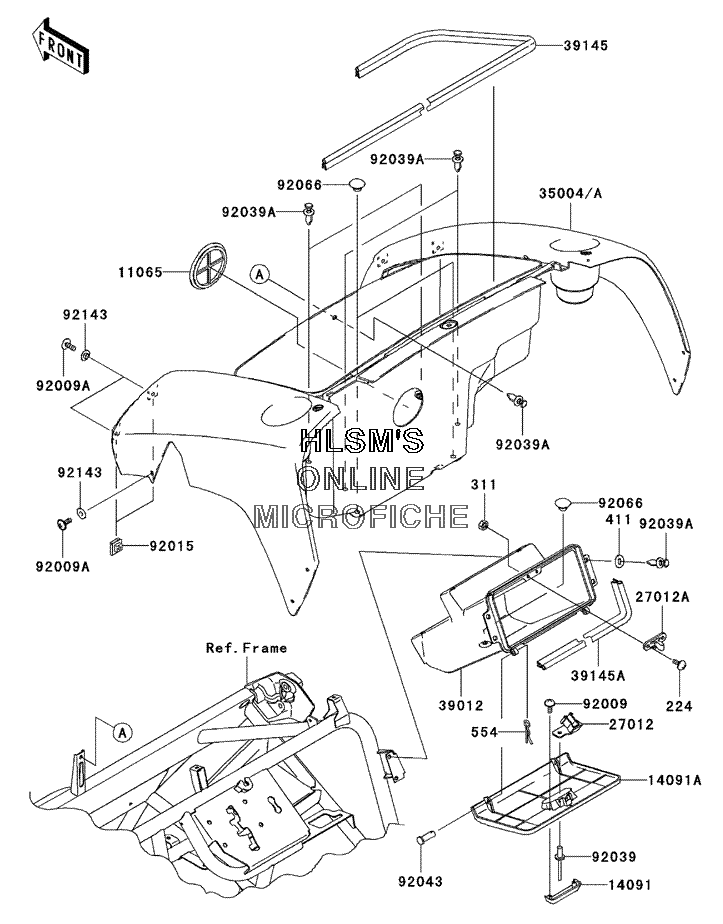

FRONT BOX для Kawasaki MULE 600 (KAF400-B1) - 2005 года выпуска
-
№АртикулНазвание
-
224224C0412 SCREW-PAN-WP-CROS, 4X12SCREW-PAN-WP-CROS, 4X12
-
311311C0400 NUT-HEXNUT-HEX
-
411411B0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
554554A0600 PIN-SNAPPIN-SNAP
-
1106511065-1053-6Z CAP (F.BLACK)CAP (F.BLACK)
-
1409114091-1228-284 COVER, GRAYCOVER, GRAY
-
14091A14091-1399-284 COVER, CONTROL PANEL (GRAY)COVER, CONTROL PANEL (GRAY)
-
2701227012-1607 HOOKHOOK
-
27012A27012-1612 HOOKHOOK
-
3500435004-0048-260 FENDER-FRONT, STORAGE (A.RED)FENDER-FRONT, STORAGE (A.RED)
-
35004A35004-0048-6A FENDER-FRONT, STORAGE (H.GREEN) (US ONLY)FENDER-FRONT, STORAGE (H.GREEN) (US ONLY)
-
3901239012-1061-284 CASE-STORAGE (RIGHT) (GRAY)CASE-STORAGE (RIGHT) (GRAY)
-
3914539145-0007 TRIM-SEAL, L=1940TRIM-SEAL, L=1940
-
39145A39145-1130 TRIM-SEAL, L=774TRIM-SEAL, L=774
-
9200992009-1444 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1678 NUT, CLAMP, 6MMNUT, CLAMP, 6MM
-
9203992039-1041 RIVETRIVET
-
92039A92039-1229 RIVETRIVET
-
9204392043-125 PIN, 6X14.5PIN, 6X14.5
-
9206692066-1485 PLUGPLUG
-
9214392143-1087 COLLARCOLLAR
