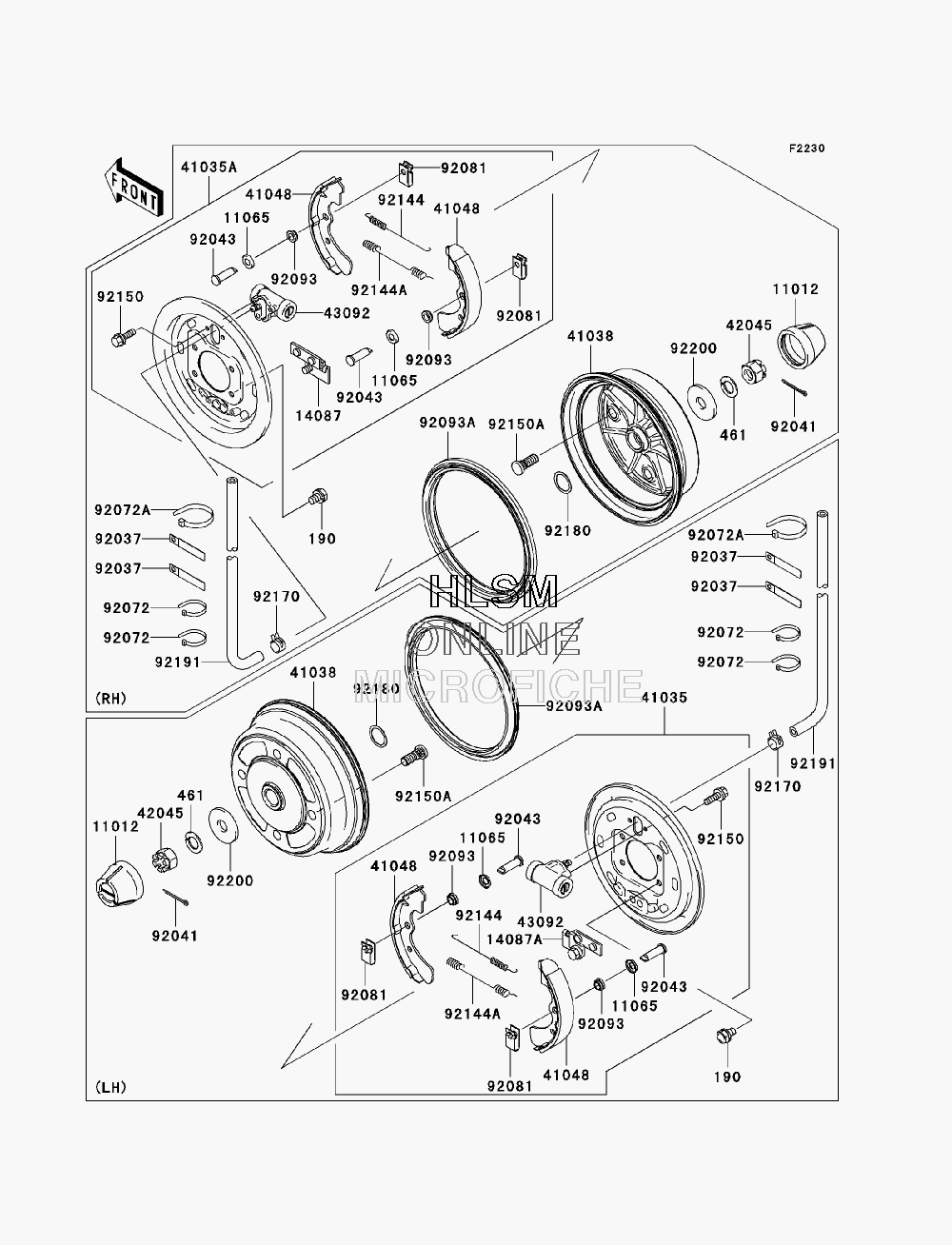

BRAKE - FRONT W/ HUB для Kawasaki MULE 3010 TRANS4X4 DIESEL (KAF950C7F) - 2007 года выпуска
-
№АртикулНазвание
-
190190H1016 BOLT-UPSET-WS, 10X16BOLT-UPSET-WS, 10X16
-
461461F1800 WASHER-SPRING, 18MMWASHER-SPRING, 18MM
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1106511065-1175 CAPCAP
-
1408714087-1001 RETAINER-ASSY, RIGHT HANDRETAINER-ASSY, RIGHT HAND
-
14087A14087-1002 RETAINER-ASSY, LEFT HANDRETAINER-ASSY, LEFT HAND
-
4103541035-7502 PANEL-ASSY-BRAKE, FRONT, LEFT HANDPANEL-ASSY-BRAKE, FRONT, LEFT HAND
-
41035A41035-7504 PANEL-ASSY-BRAKE, FRONT, RIGHT HANDPANEL-ASSY-BRAKE, FRONT, RIGHT HAND
-
4103841038-7501 DRUM, FRONT BRAKEDRUM, FRONT BRAKE
-
4104841048-7501 SHOE-BRAKESHOE-BRAKE
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
4309243092-1054 CYLINDER, FRONT BRAKE PANELCYLINDER, FRONT BRAKE PANEL
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1636 PINPIN
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-031 BAND, L=149BAND, L=149
-
9208192081-1904 SPRING, SHOE CLAMPSPRING, SHOE CLAMP
-
9209392093-1532 SEALSEAL
-
92093A92093-1543 SEAL, BS184.8X13.5ZSSEAL, BS184.8X13.5ZS
-
9214492144-1300 SPRING, BRAKESPRING, BRAKE
-
92144A92144-1301 SPRING, BRAKESPRING, BRAKE
-
9215092150-1166 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
92150A92150-1366 BOLTBOLT
-
9217092170-2042 CLAMPCLAMP
-
9218092180-1353 SHIM, 25.2X32.5X0.6SHIM, 25.2X32.5X0.6
-
9219192191-1615 TUBE, 4.7X9.5X1480TUBE, 4.7X9.5X1480
-
9220092200-1474 WASHER, 18.5X52X4.5WASHER, 18.5X52X4.5
