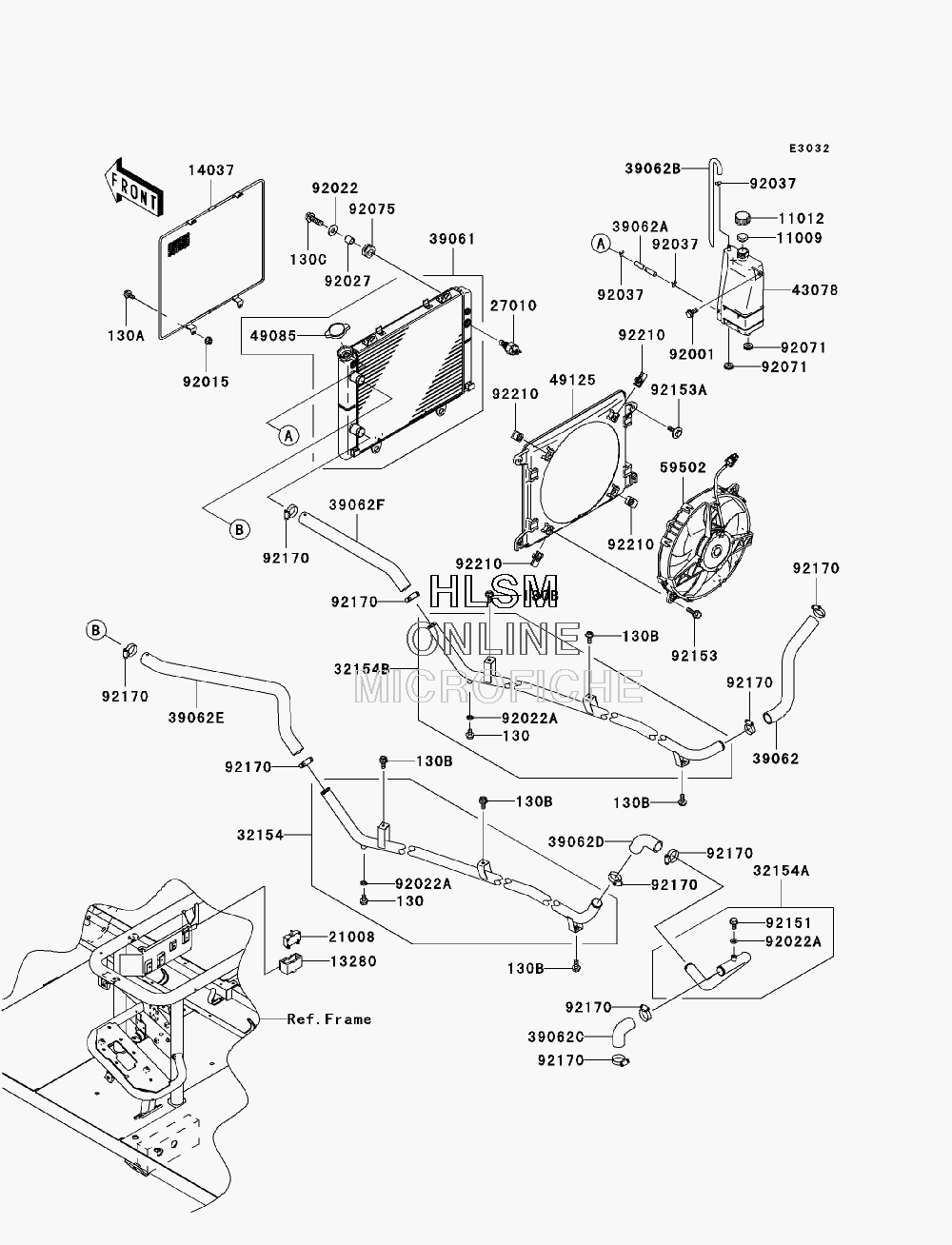

RADIATOR для Kawasaki MULE 3010 TRANS4X4 DIESEL (KAF950C7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130J0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130C130J0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
1403714037-7506 SCREENSCREEN
-
2100821008-0005 BREAKER, FAN MOTORBREAKER, FAN MOTOR
-
2701027010-1317 SWITCH, FANSWITCH, FAN
-
3215432154-7503 PIPE, RIGHT HAND FRPIPE, RIGHT HAND FR
-
32154A32154-7608 PIPE, RIGHT HANDPIPE, RIGHT HAND
-
32154B32154-7610 PIPE, LEFT HANDPIPE, LEFT HAND
-
3906139061-7504 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0032 HOSE-COOLINGHOSE-COOLING
-
39062A39062-1829 HOSE-COOLING, 5.5X10.5X600HOSE-COOLING, 5.5X10.5X600
-
39062B39062-1830 HOSE-COOLING, DRAINHOSE-COOLING, DRAIN
-
39062C39062-7503 HOSE-COOLINGHOSE-COOLING
-
39062D39062-7504 HOSE-COOLINGHOSE-COOLING
-
39062E39062-7505 HOSE-COOLINGHOSE-COOLING
-
39062F39062-7506 HOSE-COOLINGHOSE-COOLING
-
4307843078-1185 RESERVOIRRESERVOIR
-
4908549085-7501 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
4912549125-7501 SHROUDSHROUD
-
5950259502-7501 FAN-ASSYFAN-ASSY
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9201592015-1193 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1317 WASHER, 8.5X20X1.6, BLACKWASHER, 8.5X20X1.6, BLACK
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202792027-102 COLLAR, 8.8X12X10.7COLLAR, 8.8X12X10.7
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9207192071-1115 GROMMETGROMMET
-
9207592075-294 DAMPERDAMPER
-
9215192151-1832 BOLT, 6X10BOLT, 6X10
-
9215392153-7505 BOLTBOLT
-
92153A92153-7506 BOLTBOLT
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9221092210-1331 NUTNUT
