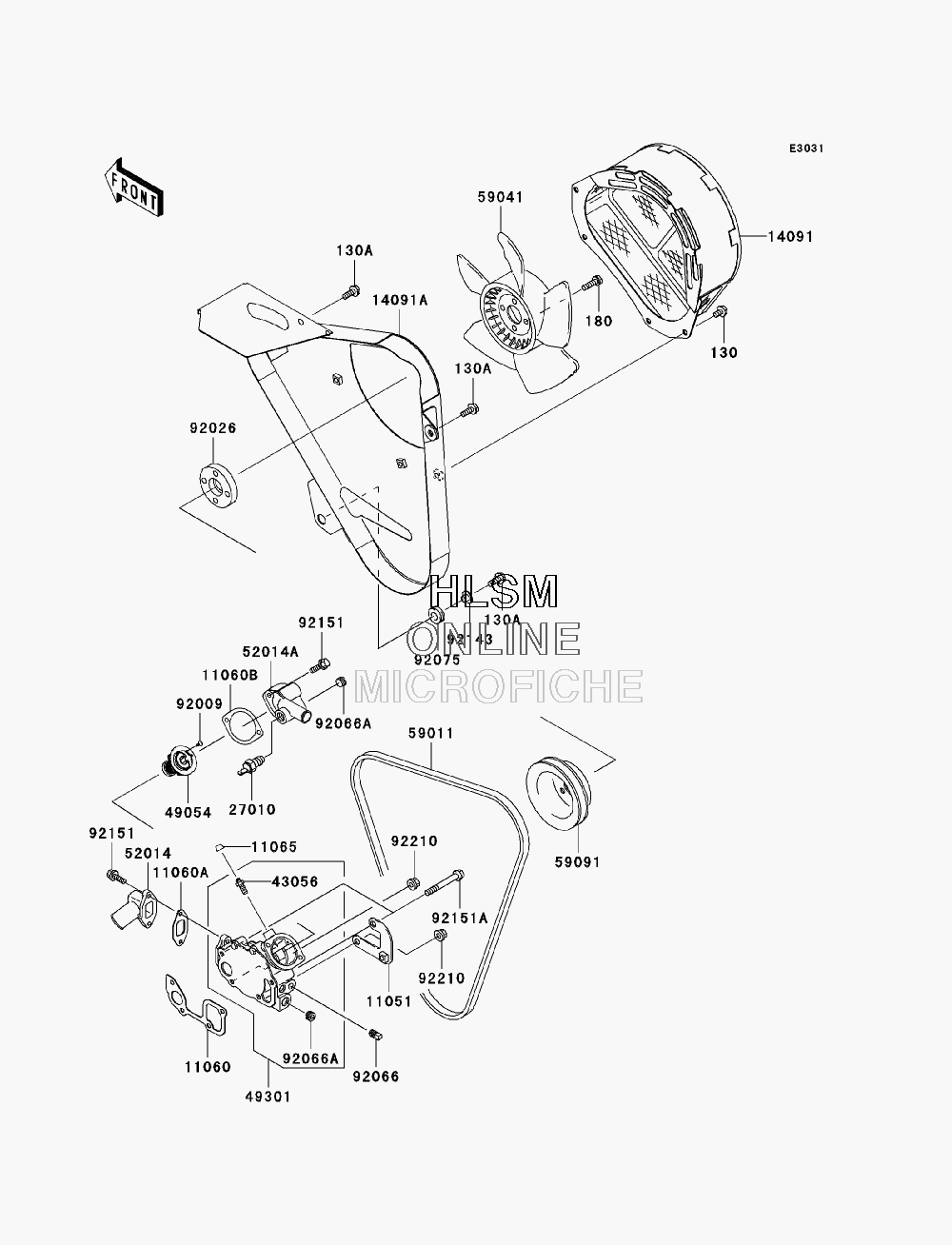

WATER PUMP для Kawasaki MULE 3010 TRANS4X4 DIESEL (KAF950C7F) - 2007 года выпуска
-
№АртикулНазвание
-
130130J0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
130A130J0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
180180J0622 BOLT-UPSET-WS, 6X22BOLT-UPSET-WS, 6X22
-
1105111051-1567 BRACKET, BELT COVERBRACKET, BELT COVER
-
1106011060-1957 GASKET, WATER PUMPGASKET, WATER PUMP
-
11060A11060-1958 GASKET, ELBOW, INLETGASKET, ELBOW, INLET
-
11060B11060-1959 GASKET, ELBOW, OUTLETGASKET, ELBOW, OUTLET
-
1106511065-1155 CAP, BREATHERCAP, BREATHER
-
1409114091-0010 COVER, FANCOVER, FAN
-
14091A14091-0126 COVER, BELTCOVER, BELT
-
2701027010-1414 SWITCH, THERMOSTATSWITCH, THERMOSTAT
-
4305643056-1057 BREATHER-PUMPBREATHER-PUMP
-
4905449054-1068 THERMOSTATTHERMOSTAT
-
4930149301-1052 PUMP-ASSY-WATERPUMP-ASSY-WATER
-
5201452014-1095 ELBOW, INLETELBOW, INLET
-
52014A52014-1096 ELBOW, OUTLETELBOW, OUTLET
-
5901159011-1075 BELTBELT
-
5904159041-1060 FANFAN
-
5909159091-1105 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
9200992009-1915 SCREW, TAPPING, 2.6X8SCREW, TAPPING, 2.6X8
-
9202692026-1571 SPACERSPACER
-
9206692066-1531 PLUG, WATER PUMPPLUG, WATER PUMP
-
92066A92066-1532 PLUG, ELBOW OUTLETPLUG, ELBOW OUTLET
-
9207592075-161 DAMPERDAMPER
-
9214392143-1057 COLLARCOLLAR
-
9215192151-1667 BOLT, 6X20BOLT, 6X20
-
92151A92151-1690 BOLT, 8X50BOLT, 8X50
-
9221092210-1216 NUT, 8MMNUT, 8MM
