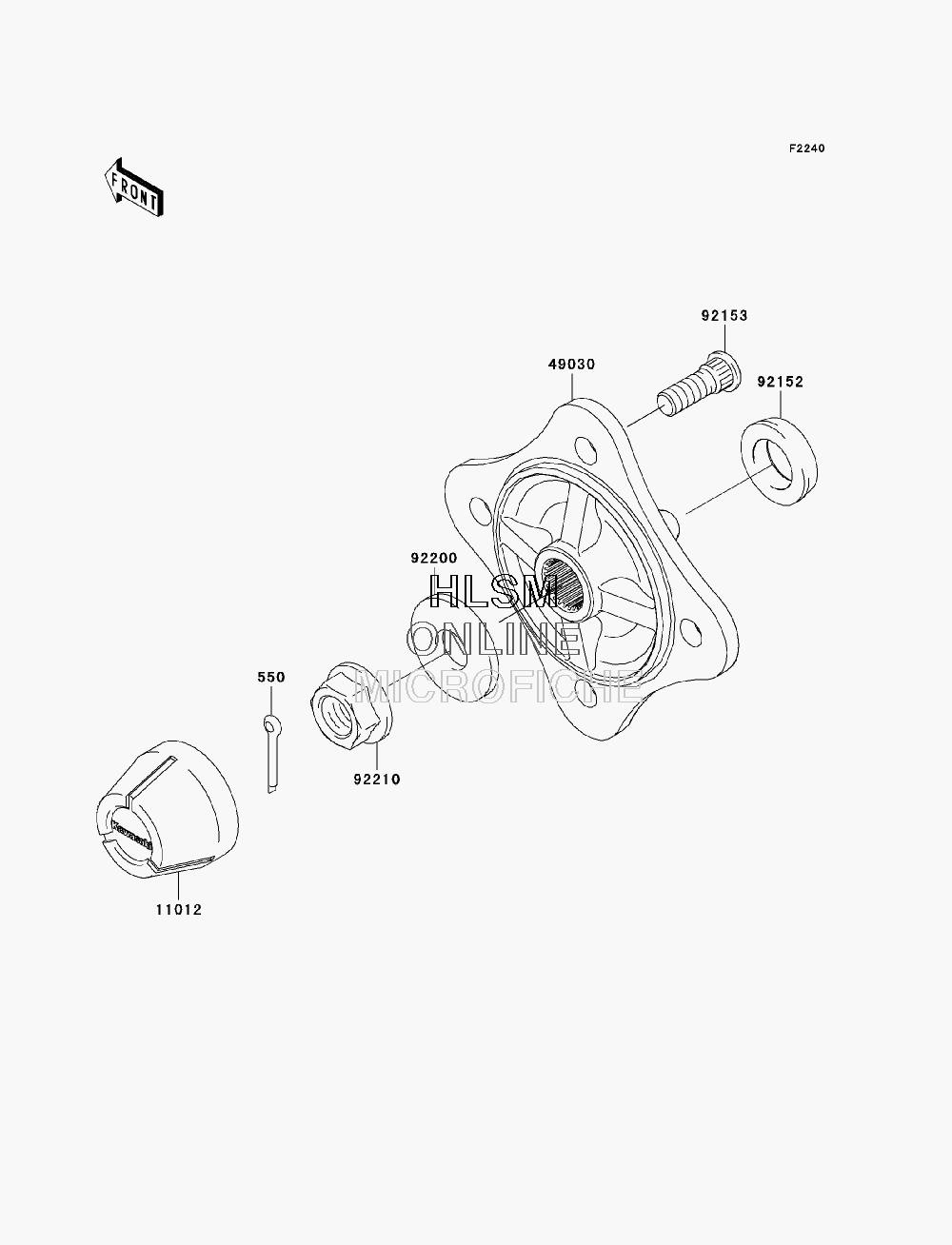

BRAKE - REAR W/ HUBS для Kawasaki TERYX 750 4X4 LE (KRF750D8F) - 2008 года выпуска
-
№АртикулНазвание
-
550550AA4030 PIN-COTTER, 4.0X30PIN-COTTER, 4.0X30
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
4903049030-0025 HUB, REARHUB, REAR
-
9215292152-0631 COLLARCOLLAR
-
9215392153-1915 BOLT, 12MMBOLT, 12MM
-
9220092200-0130 WASHER, 20.3X52X4.5WASHER, 20.3X52X4.5
-
9221092210-2093 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
