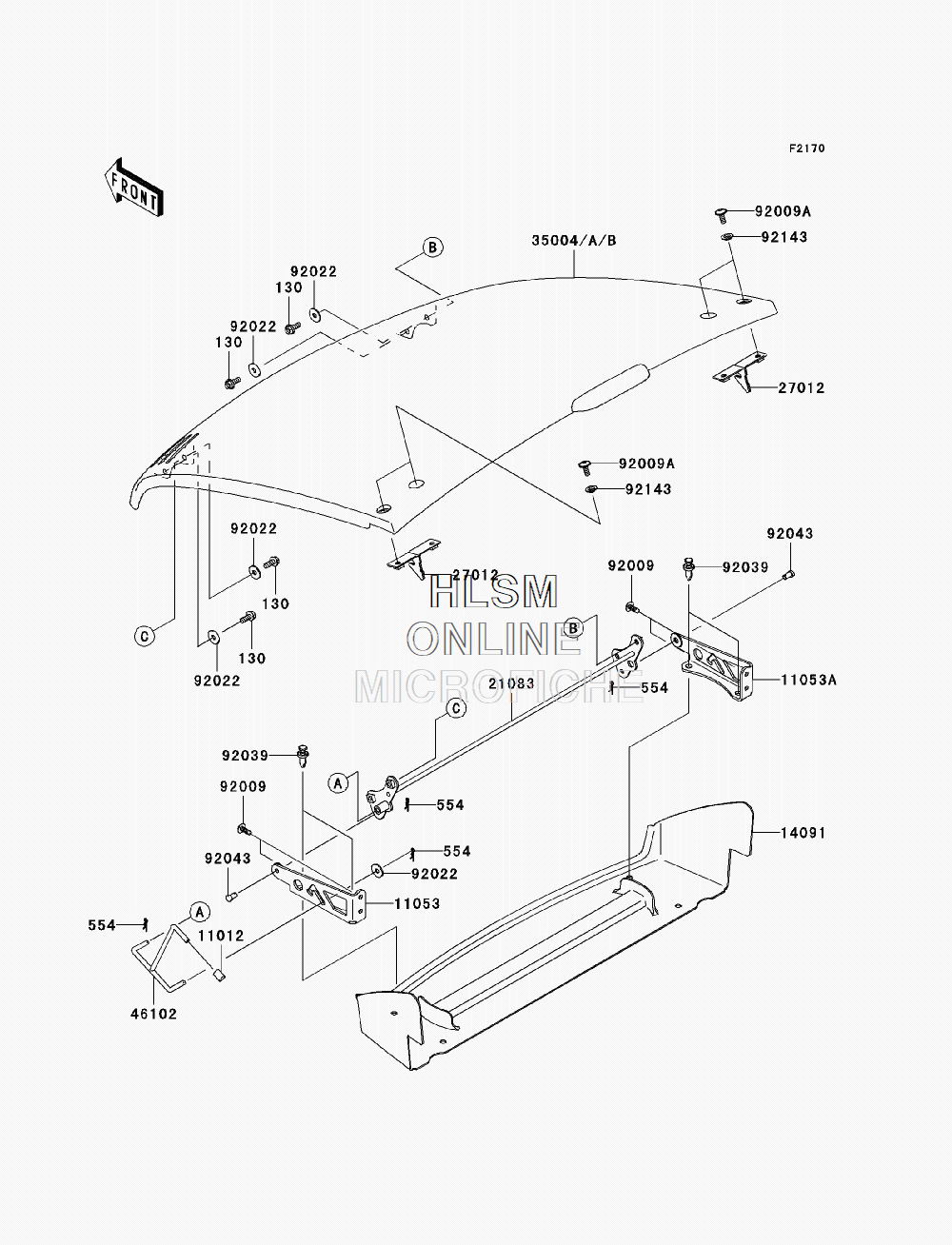

FENDER(S) для Kawasaki MULE 600 (KAF400B9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1101211012-1899 CAPCAP
-
1105311053-1451 BRACKETBRACKET
-
11053A11053-1452 BRACKETBRACKET
-
1409114091-0368 COVERCOVER
-
2108321083-0021 ARMARM
-
2701227012-0065 HOOKHOOK
-
3500435004-0029-16L FENDER-FRONT, HOOD, D. R. RED (FOR 16M)FENDER-FRONT, HOOD, D. R. RED (FOR 16M)
-
35004B35004-0029-286 FENDER-FRONT, HOOD, W. GREEN (FOR 398)FENDER-FRONT, HOOD, W. GREEN (FOR 398)
-
4610246102-0048 RODROD
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9202292022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9203992039-1229 RIVETRIVET
-
9204392043-1626 PIN, 6X9PIN, 6X9
-
9214392143-1087 COLLARCOLLAR
