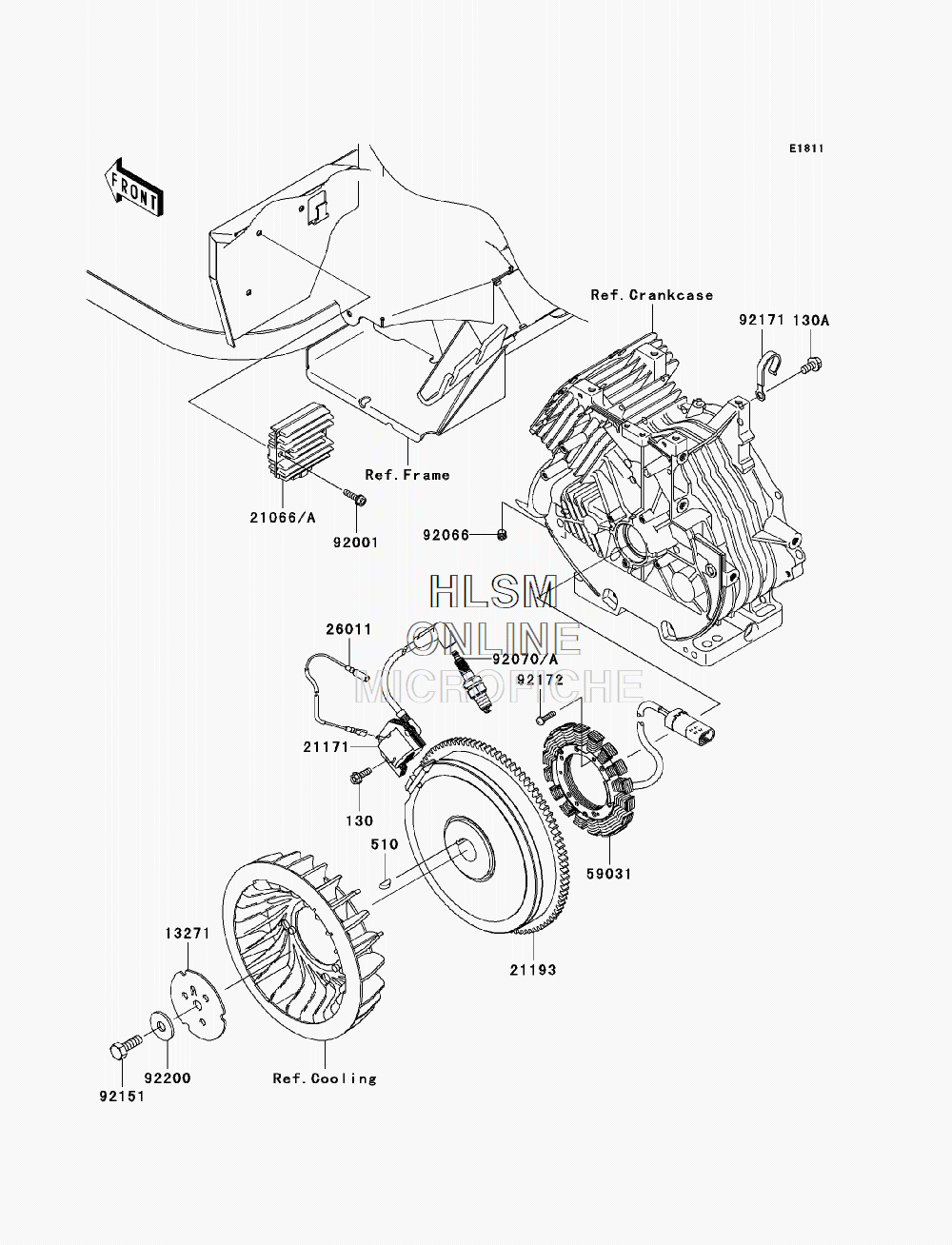

GENERATOR W/ IGNITION SYSTEM для Kawasaki MULE 600 (KAF400B9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130AA0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
130A130AA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
510510A5100 KEY-WOODRUFFKEY-WOODRUFF
-
1327113271-7029 PLATE, FANPLATE, FAN
-
21066A21066-0039 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
2117121171-7035 COIL-ASSY-IGNITIONCOIL-ASSY-IGNITION
-
2119321193-7023 FLYWHEEL-ASSYFLYWHEEL-ASSY
-
2601126011-7014 WIRE-LEADWIRE-LEAD
-
5903159031-2132 COIL-CHARGINGCOIL-CHARGING
-
9200192001-1352 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
9206692066-7002 PLUGPLUG
-
92070A92070-2088 PLUG-SPARK, BPR5ES (NGK), SOLIDPLUG-SPARK, BPR5ES (NGK), SOLID
-
9215192151-2097 BOLT, 12X30BOLT, 12X30
-
9217192171-7005 CLAMPCLAMP
-
9217292172-7018 SCREW, 5X20SCREW, 5X20
-
9220092200-7002 WASHERWASHER
