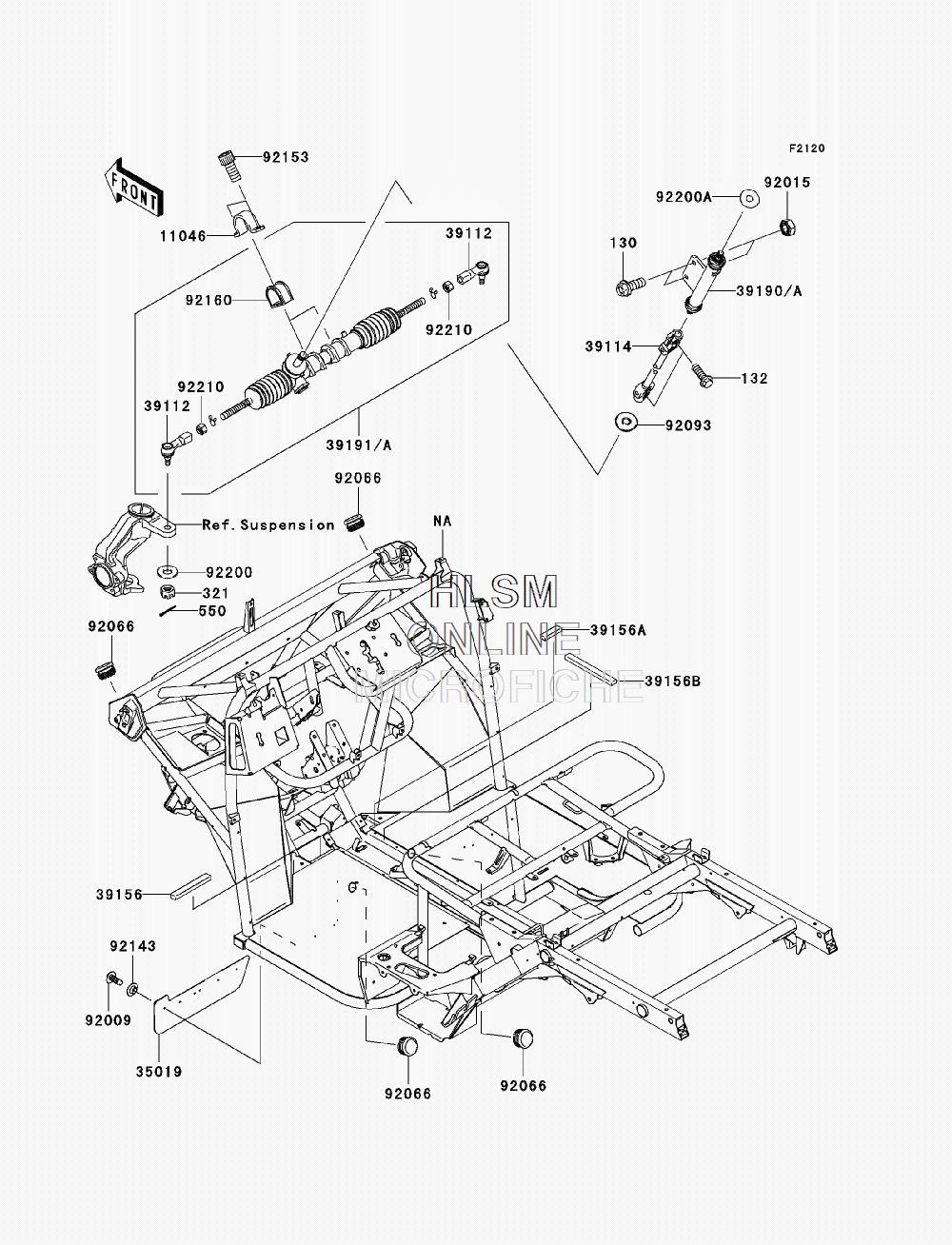

FRAME для Kawasaki MULE 600 (KAF400B9F) - 2009 года выпуска
-
№АртикулНазвание
-
130130BB1025 BOLT-FLANGED, 10X25BOLT-FLANGED, 10X25
-
132132BB0825 BOLT-FLANGED-SMALL, 8X25BOLT-FLANGED-SMALL, 8X25
-
321321BA1000 NUT-CASTLENUT-CASTLE
-
550550AA2022 PIN-COTTER, 2.0X22PIN-COTTER, 2.0X22
-
1104611046-1858 BRACKET, STEERING GEARBRACKET, STEERING GEAR
-
3501935019-0037 FLAP, FRONTFLAP, FRONT
-
3911239112-0008 RODEND-TIE, STEERING GEARRODEND-TIE, STEERING GEAR
-
3911439114-0003 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3915639156-0068 PADPAD
-
39156A39156-0069 PADPAD
-
39156B39156-0070 PADPAD
-
39190A39190-0004 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
39191A39191-0014 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1189 NUT, LOCK, 10MM, BLACKNUT, LOCK, 10MM, BLACK
-
9206692066-0036 PLUGPLUG
-
9209392093-1313 SEALSEAL
-
9214392143-1087 COLLARCOLLAR
-
9215392153-1269 BOLT, SOCKET, 10X23BOLT, SOCKET, 10X23
-
9216092160-1084 DAMPER, STEERING GEARDAMPER, STEERING GEAR
-
9220092200-0140 WASHER, 10.3X23X1.6WASHER, 10.3X23X1.6
-
92200A92200-1130 WASHER, 15X45X0.6WASHER, 15X45X0.6
-
9221092210-0217 NUT, 14MMNUT, 14MM
