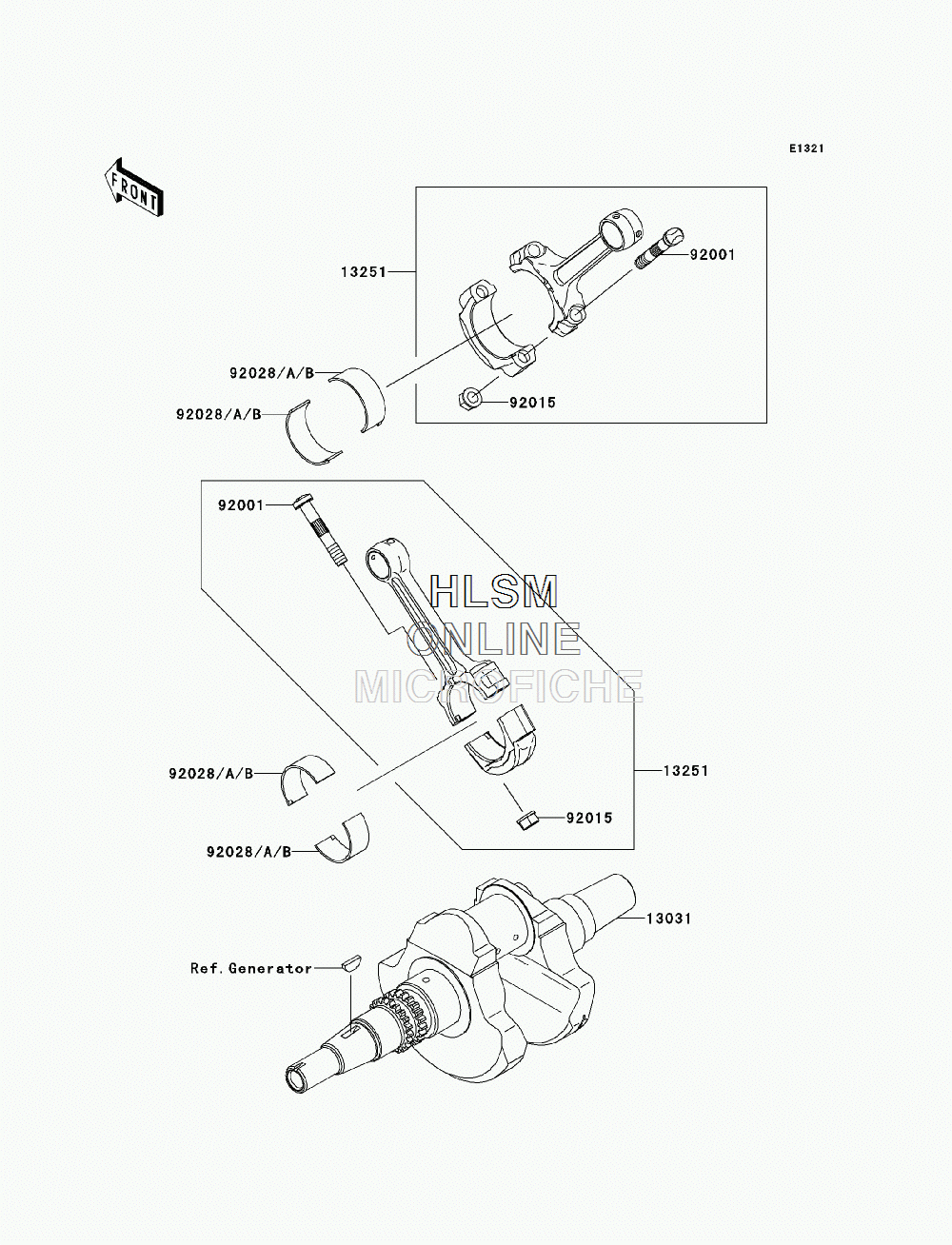

CRANKSHAFT для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SCS) - 2012 года выпуска
-
№АртикулНазвание
-
1303113031-0030 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1325113251-1143 ROD-ASSY-CONNECTINGROD-ASSY-CONNECTING
-
9200192001-1980 BOLT,CONNECTING RODBOLT,CONNECTING ROD
-
9201592015-1311 NUT,FLANGED,8MMNUT,FLANGED,8MM
-
9202892028-1961 BUSHING,CONNECTING ROD,GREENBUSHING,CONNECTING ROD,GREEN
-
92028A92028-1962 BUSHING,CONNECTING ROD,YELLOWBUSHING,CONNECTING ROD,YELLOW
-
92028B92028-1963 BUSHING,CONNECTING ROD,BROWNBUSHING,CONNECTING ROD,BROWN
