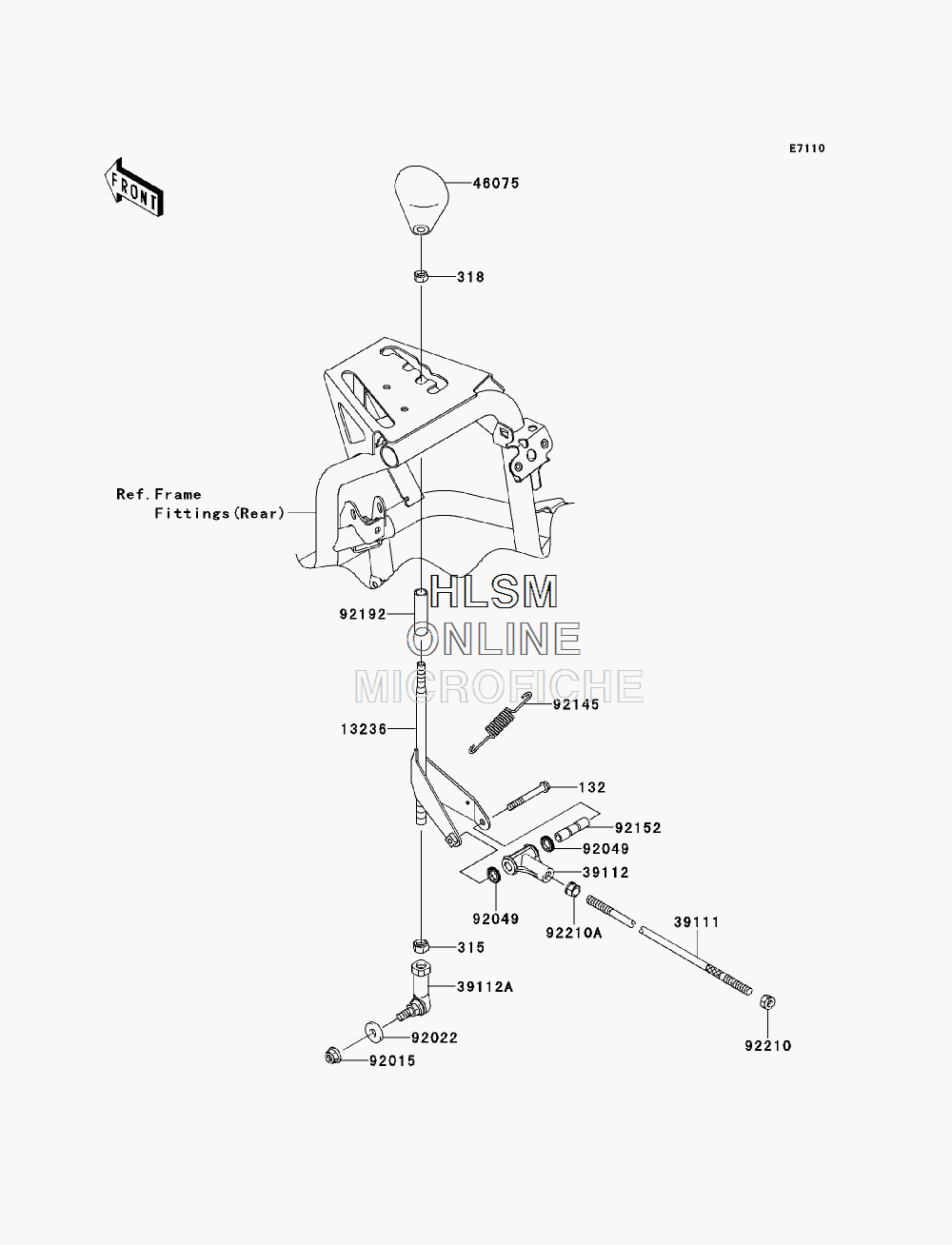

SHIFT LEVER(S) для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SCS) - 2012 года выпуска
-
№АртикулНазвание
-
132132BB0650 BOLT-FLANGED-SMALL,6X50BOLT-FLANGED-SMALL,6X50
-
315315AA1000 NUT-HEX-FINE,10MMNUT-HEX-FINE,10MM
-
318318BA0800 NUT-HEX-SMALL,8MMNUT-HEX-SMALL,8MM
-
1323613236-0152 LEVER-COMPLEVER-COMP
-
3911139111-0040 ROD-TIEROD-TIE
-
3911239112-1079 RODEND-TIERODEND-TIE
-
39112A39112-1084 RODEND-TIE,CONTROL PIVOTRODEND-TIE,CONTROL PIVOT
-
4607546075-0046 GRIP,SHIFTGRIP,SHIFT
-
9201592015-1432 NUT,8MMNUT,8MM
-
9202292022-276 WASHER,8.5X22X3.2WASHER,8.5X22X3.2
-
9204992049-1458 SEAL-OILSEAL-OIL
-
9214592145-0130 SPRINGSPRING
-
9215292152-1222 COLLAR,RODEND-TIECOLLAR,RODEND-TIE
-
9219292192-0812 TUBE,10X13X50TUBE,10X13X50
-
9221092210-1242 NUT,8MMNUT,8MM
-
92210A92210-1284 NUT, LEFT HAND,THREAD 8MMNUT, LEFT HAND,THREAD 8MM
