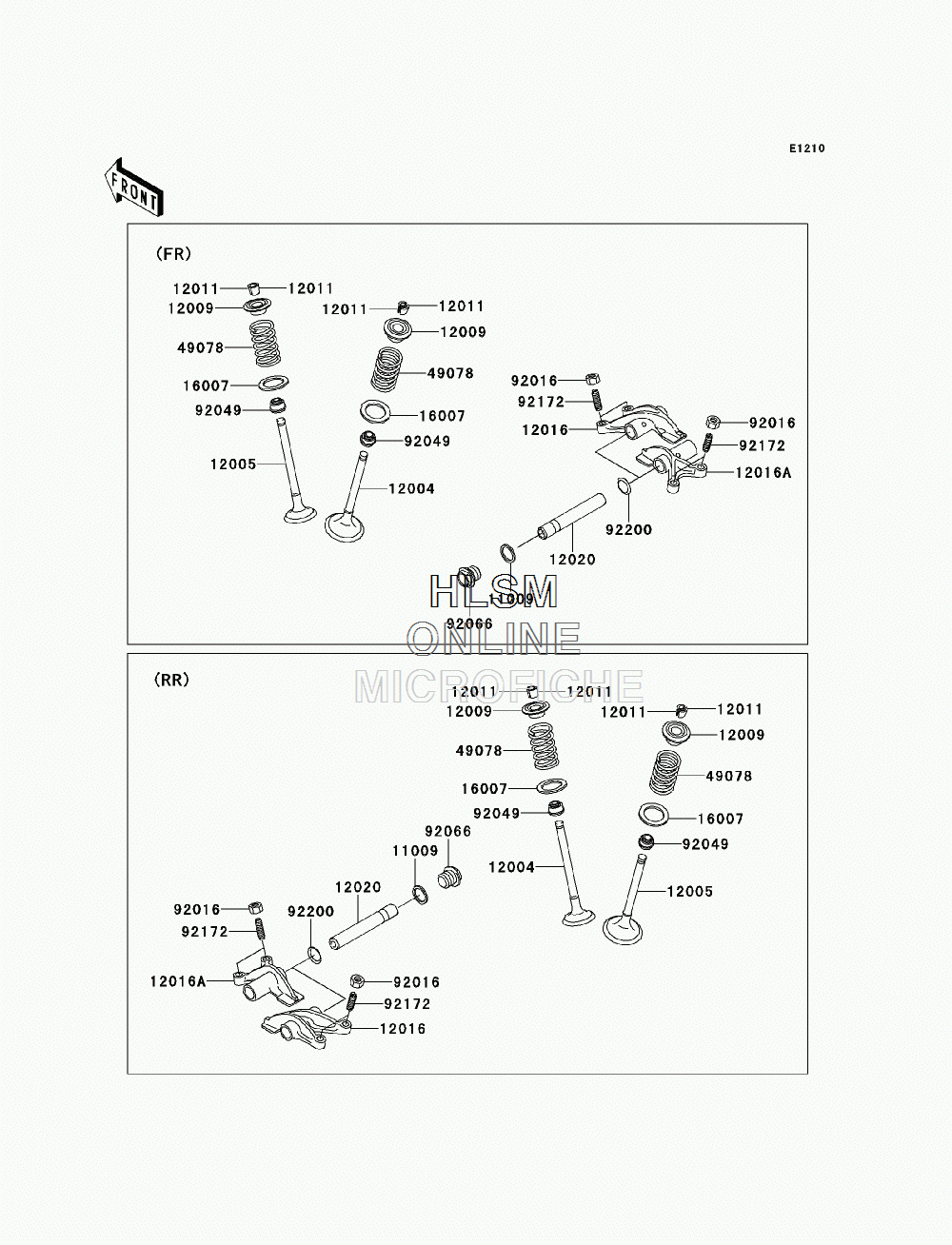

VALVE(S) для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SCS) - 2012 года выпуска
-
№АртикулНазвание
-
1100911009-1430 GASKET,14X18X1.5GASKET,14X18X1.5
-
1200412004-0007 VALVE-INTAKEVALVE-INTAKE
-
1200512005-0047 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-1056 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-1051 COLLETCOLLET
-
1201612016-1128 ARM-ROCKER,EXHAUSTARM-ROCKER,EXHAUST
-
12016A12016-1129 ARM-ROCKER,INTAKEARM-ROCKER,INTAKE
-
1202012020-0004 SHAFT-ROCKERSHAFT-ROCKER
-
1600716007-1178 SEAT-SPRING,17.5X23.8X0.5SEAT-SPRING,17.5X23.8X0.5
-
4907849078-0014 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
9201692016-061 NUT,6MMNUT,6MM
-
9204992049-1218 SEAL-OIL,VSB58.558SEAL-OIL,VSB58.558
-
9206692066-2196 PLUG,DRAINPLUG,DRAIN
-
9217292172-0737 SCREW,6MMSCREW,6MM
-
9220092200-1508 WASHER,13X17X0.3WASHER,13X17X0.3
