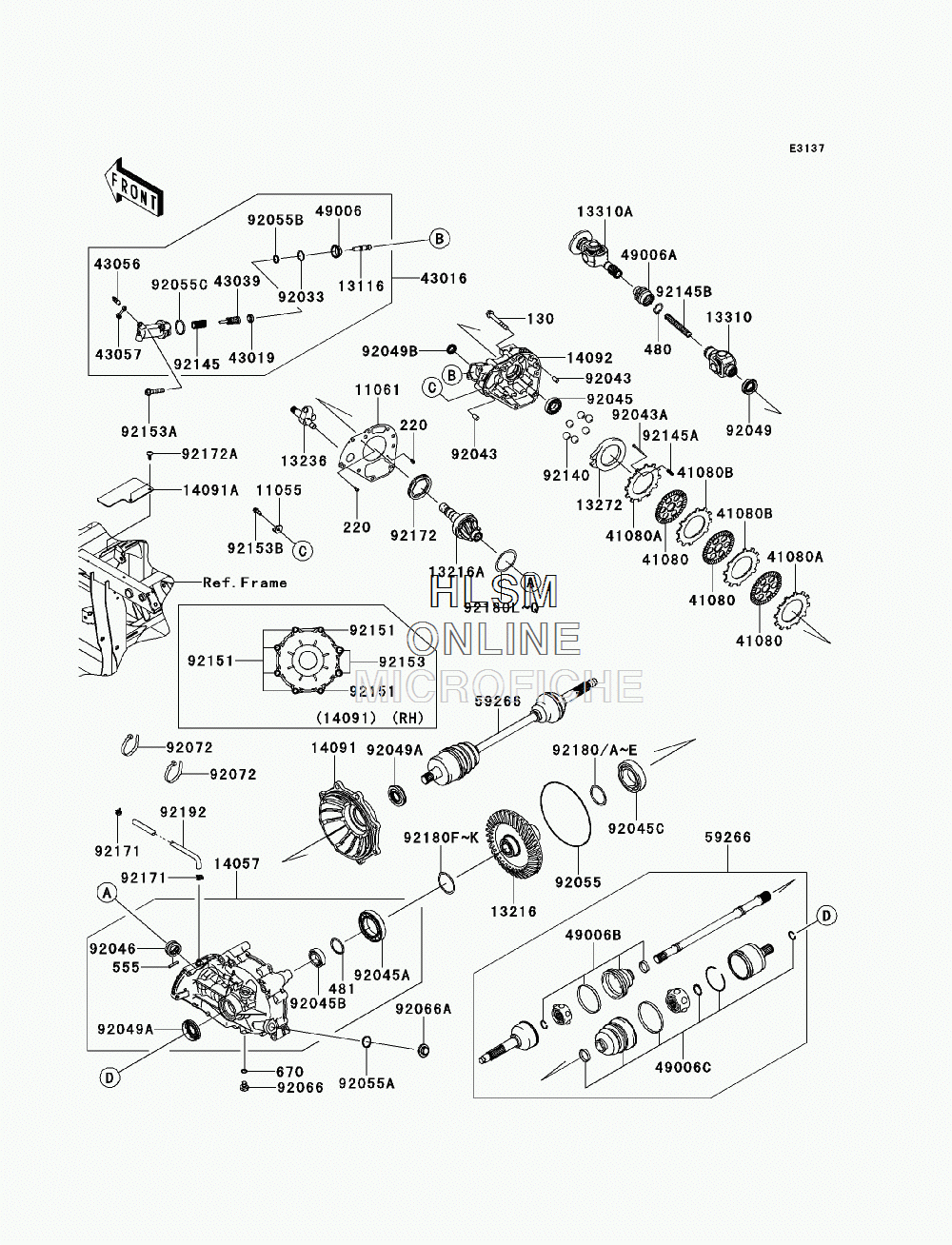

DRIVE SHAFT (REAR) для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SDF) - 2013 года выпуска
-
№АртикулНазвание
-
1105511055-0372 BRACKETBRACKET
-
1106111061-0270 GASKET, FRONT COVERGASKET, FRONT COVER
-
1311613116-0026 ROD-PUSHROD-PUSH
-
1321613216-0862 GEAR-COMP, 35TGEAR-COMP, 35T
-
13216A13216-0869 GEAR-COMP, 8TGEAR-COMP, 8T
-
1323613236-0171 LEVER-COMPLEVER-COMP
-
1327213272-1083 PLATEPLATE
-
1331013310-0030 SHAFT-ASSY, GEAR ASSY SIDESHAFT-ASSY, GEAR ASSY SIDE
-
13310A13310-0574 SHAFT-ASSY, ENG SIDESHAFT-ASSY, ENG SIDE
-
1405714057-0006 CASE-COMP-GEARCASE-COMP-GEAR
-
1409114091-0677 COVER, RIGHT HANDCOVER, RIGHT HAND
-
14091A14091-0998 COVERCOVER
-
1409214092-0128 COVER, FRONTCOVER, FRONT
-
4108041080-1482 DISC, FRICTIONDISC, FRICTION
-
41080A41080-1483 DISC, PRESSUREDISC, PRESSURE
-
41080B41080-1484 DISC, SEPARATERDISC, SEPARATER
-
4301643016-0053 CYLINDER-MASTERCYLINDER-MASTER
-
4301943019-0002 CUP-BRAKECUP-BRAKE
-
4303943039-0006 PISTON-BRAKEPISTON-BRAKE
-
4305643056-1056 BREATHER-BRAKEBREATHER-BRAKE
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
4900649006-0072 BOOTBOOT
-
49006A49006-0108 BOOT, GEAR ASSY SIDEBOOT, GEAR ASSY SIDE
-
49006B49006-0553 BOOTBOOT
-
49006C49006-0554 BOOTBOOT
-
5926659266-0702 JOINT-BALLJOINT-BALL
-
9203392033-0055 RING-SNAPRING-SNAP
-
9204392043-1567 PIN, 8X14PIN, 8X14
-
92043A92043-1617 PIN, 3X35PIN, 3X35
-
9204592045-0077 BEARING-BALL, #6005BEARING-BALL, #6005
