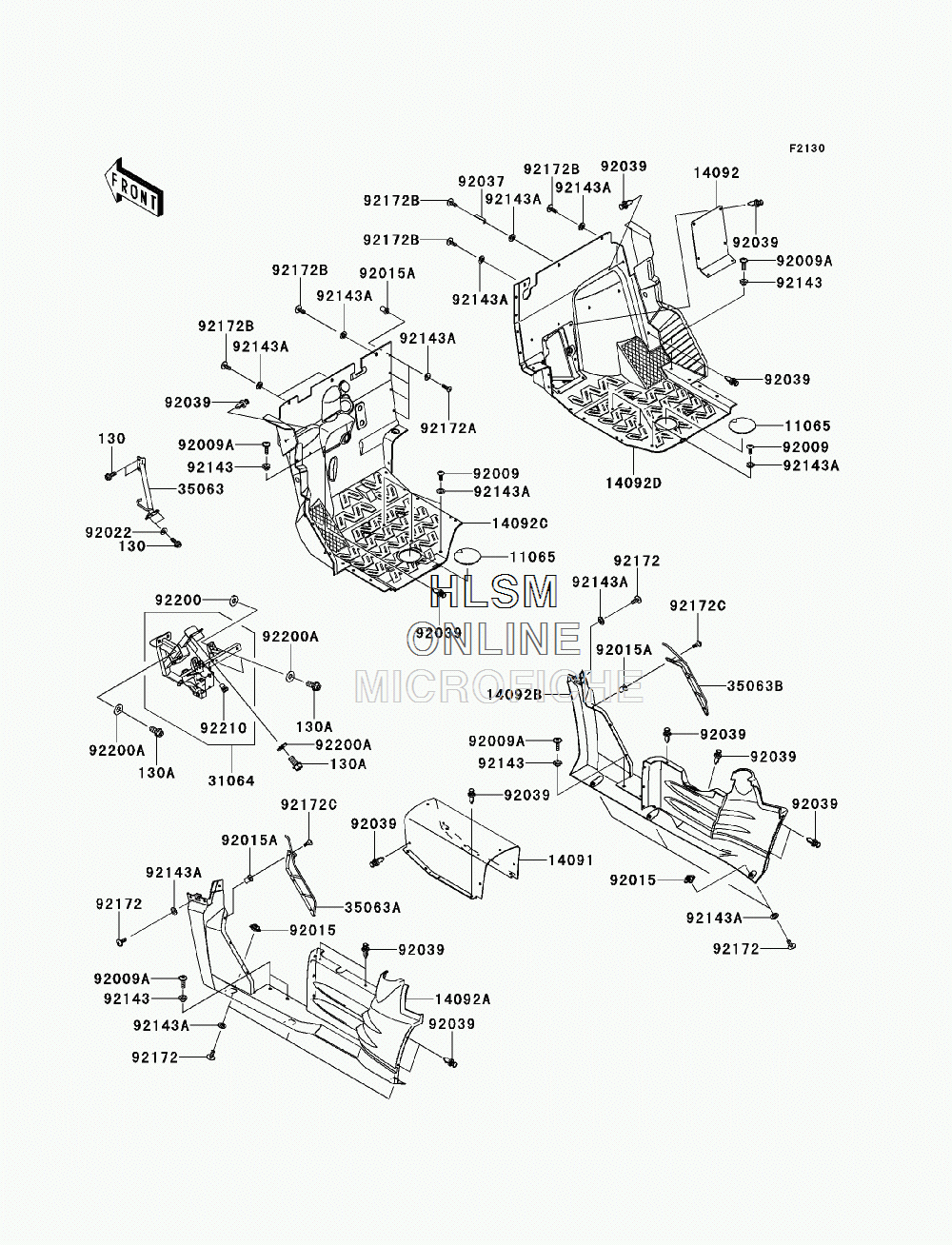

FRAME FITTINGS (FRONT) для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130A130CA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
1106511065-0267 CAPCAP
-
1409114091-0696-6Z COVER, CENTER, (F.BLACK) (FOR 40E)COVER, CENTER, (F.BLACK) (FOR 40E)
-
1409214092-0079-6Z COVER, RESERV. TANK, (F.BLACK) (FOR 40E)COVER, RESERV. TANK, (F.BLACK) (FOR 40E)
-
14092A14092-0889-6Z COVER, SIDE, LEFT HAND, (F.BLACK) (FOR 40E)COVER, SIDE, LEFT HAND, (F.BLACK) (FOR 40E)
-
14092B14092-0890-6Z COVER, SIDE, RIGHT HAND, (F.BLACK) (FOR 40E)COVER, SIDE, RIGHT HAND, (F.BLACK) (FOR 40E)
-
14092C14092-0898 COVER, FLOOR, LEFT HANDCOVER, FLOOR, LEFT HAND
-
14092D14092-0899 COVER, FLOOR, RIGHT HANDCOVER, FLOOR, RIGHT HAND
-
3106431064-0172 PIPE-COMPPIPE-COMP
-
3506335063-0518 STAY, MASTER CYLINDERSTAY, MASTER CYLINDER
-
35063A35063-0544 STAY, SIDE COVER, LEFT HANDSTAY, SIDE COVER, LEFT HAND
-
35063B35063-0545 STAY, SIDE COVER, RIGHT HANDSTAY, SIDE COVER, RIGHT HAND
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, (BLACK)SCREW, 6X22, (BLACK)
-
9201592015-1487 NUTNUT
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-2373 WASHER, 6.2X15.0X1.2WASHER, 6.2X15.0X1.2
-
9203792037-1316 CLAMP, HARNESSCLAMP, HARNESS
-
9203992039-1229 RIVETRIVET
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9217292172-0236 SCREW, 6X16SCREW, 6X16
-
92172A92172-0504 SCREW, 5X18SCREW, 5X18
-
92172B92172-0739 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92172C92172-2081 SCREW, 5X20SCREW, 5X20
-
9220092200-0121 WASHER, 10X22X3.2WASHER, 10X22X3.2
-
92200A92200-2009 WASHER, 10.3X23X1.6WASHER, 10.3X23X1.6
-
9221092210-1397 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
