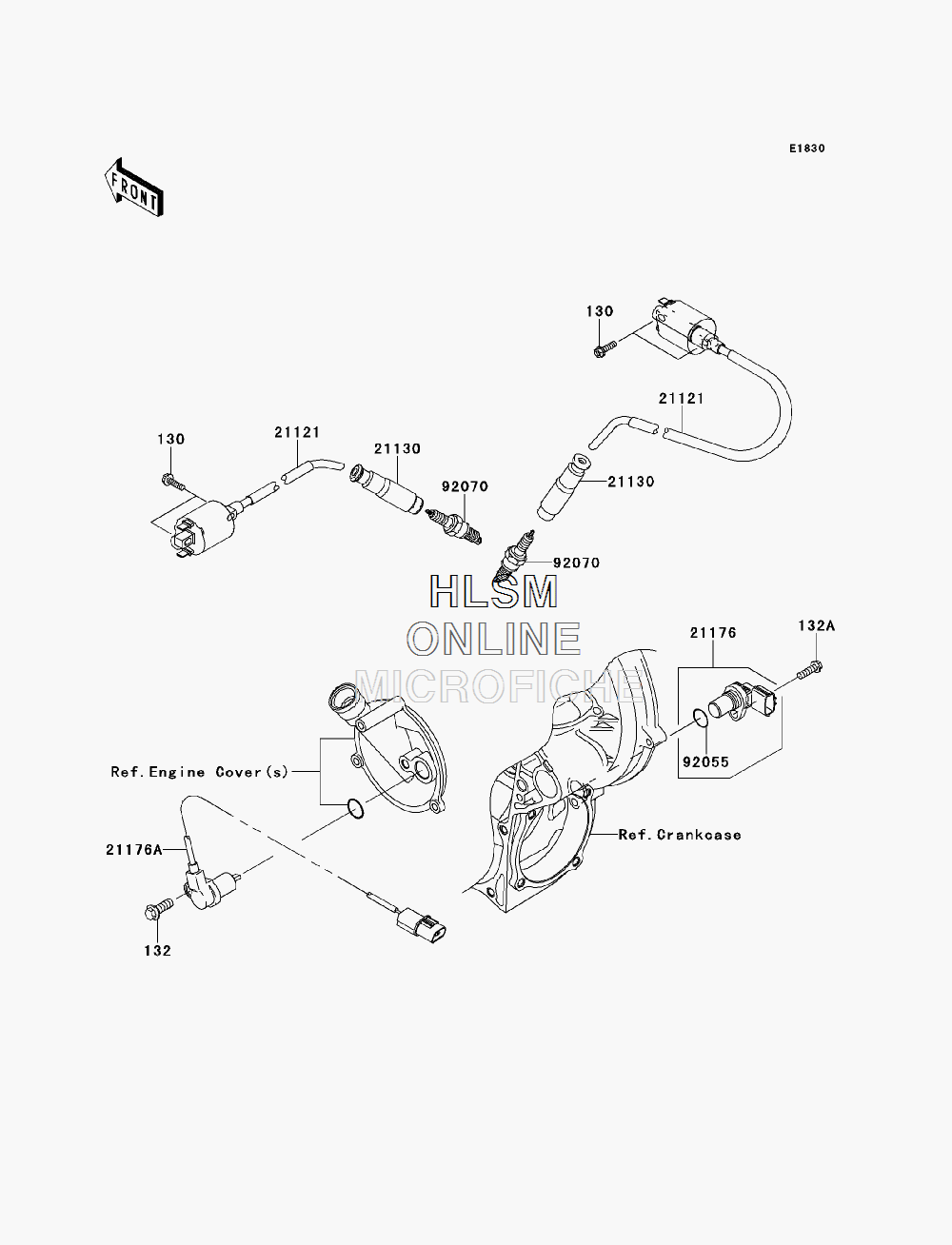

IGNITION SYSTEM для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SDF) - 2013 года выпуска
-
№АртикулНазвание
-
130130BB0518 BOLT-FLANGED, 5X18BOLT-FLANGED, 5X18
-
132132BA0822 BOLT-FLANGED-SMALL, 8X22BOLT-FLANGED-SMALL, 8X22
-
132A132BD0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
2112121121-0045 COIL-IGNITIONCOIL-IGNITION
-
2113021130-1071 CAP-SPARK PLUGCAP-SPARK PLUG
-
2117621176-1104 SENSOR, SPEEDSENSOR, SPEED
-
21176A21176-1109 SENSOR, REVERSESENSOR, REVERSE
-
9205592055-1718 RING-ORING-O
-
9207092070-1209 PLUG-SPARK, CR7E(NGK)PLUG-SPARK, CR7E(NGK)
