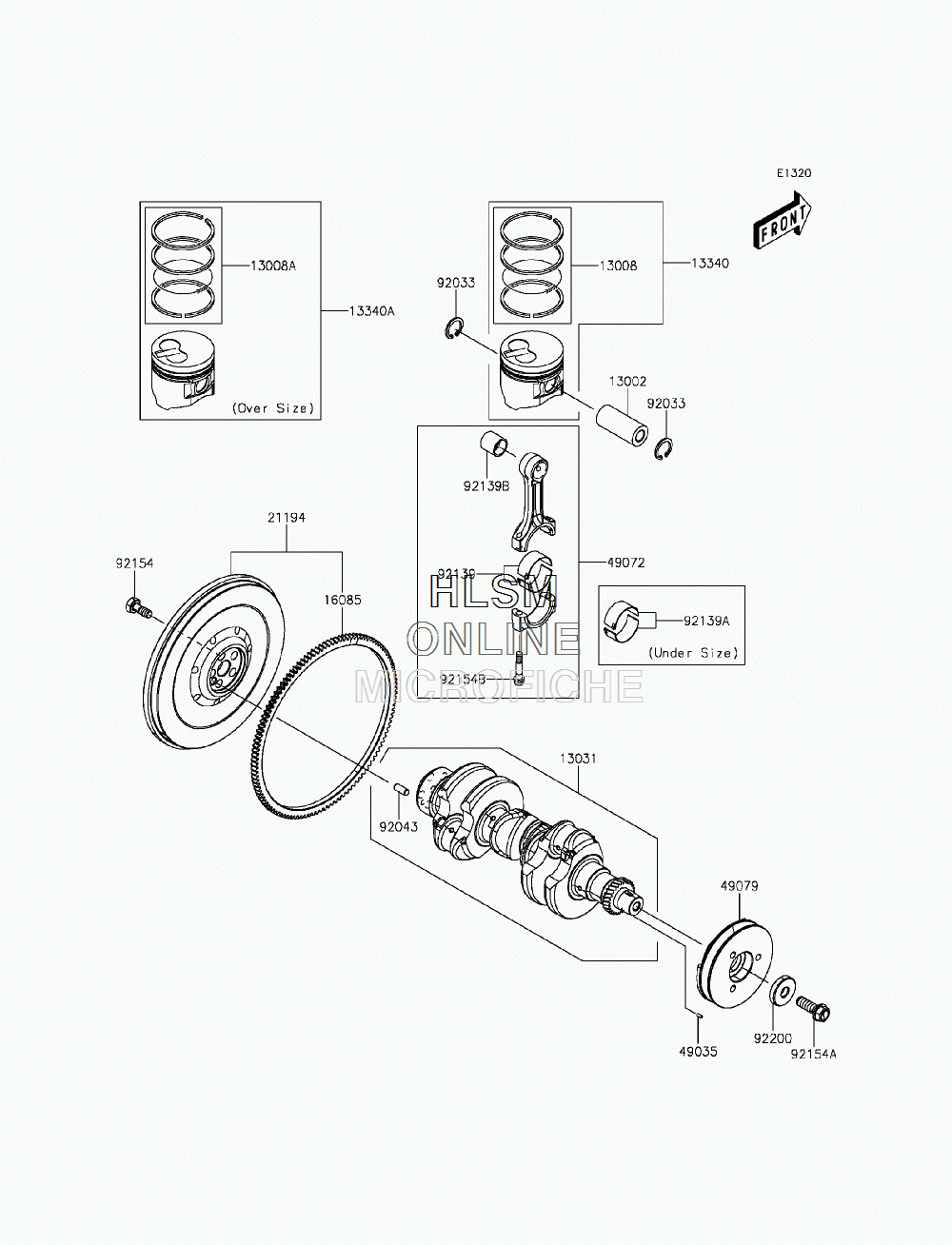

CRANKSHAFT W/ PISTON(S) для Kawasaki MULE PRO-DX EPS (KAF1000EGF) - 2016 года выпуска
-
№АртикулНазвание
-
1300213002-0047 PIN-PISTONPIN-PISTON
-
1300813008-0563 RING-SET-PISTON, STDRING-SET-PISTON, STD
-
13008A13008-0566 RING-SET-PISTON, O/S, 0.25RING-SET-PISTON, O/S, 0.25
-
1303113031-0841 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
1334013340-0004 PISTON-ASSY-ENGINE, STDPISTON-ASSY-ENGINE, STD
-
13340A13340-0005 PISTON-ASSY-ENGINE, O/S, 0.25PISTON-ASSY-ENGINE, O/S, 0.25
-
1608516085-0655 GEAR, RINGGEAR, RING
-
2119421194-0037 FLYWHEEL-COMPFLYWHEEL-COMP
-
4903549035-0017 PIN-SPRINGPIN-SPRING
-
4907249072-0001 ROD-COMP-CONNECTINGROD-COMP-CONNECTING
-
4907949079-0026 PULLEY-BELTPULLEY-BELT
-
9203392033-0774 RING-SNAPRING-SNAP
-
9204392043-0886 PIN, 8X16PIN, 8X16
-
9213992139-0860 BUSHING, STDBUSHING, STD
-
92139A92139-0864 BUSHING, U/S, 0.25BUSHING, U/S, 0.25
-
92139B92139-0865 BUSHING, PISTON PINBUSHING, PISTON PIN
-
9215492154-1992 BOLT, FLYWHEELBOLT, FLYWHEEL
-
92154A92154-1993 BOLT, FLANGEDBOLT, FLANGED
-
92154B92154-1994 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
9220092200-1807 WASHERWASHER
