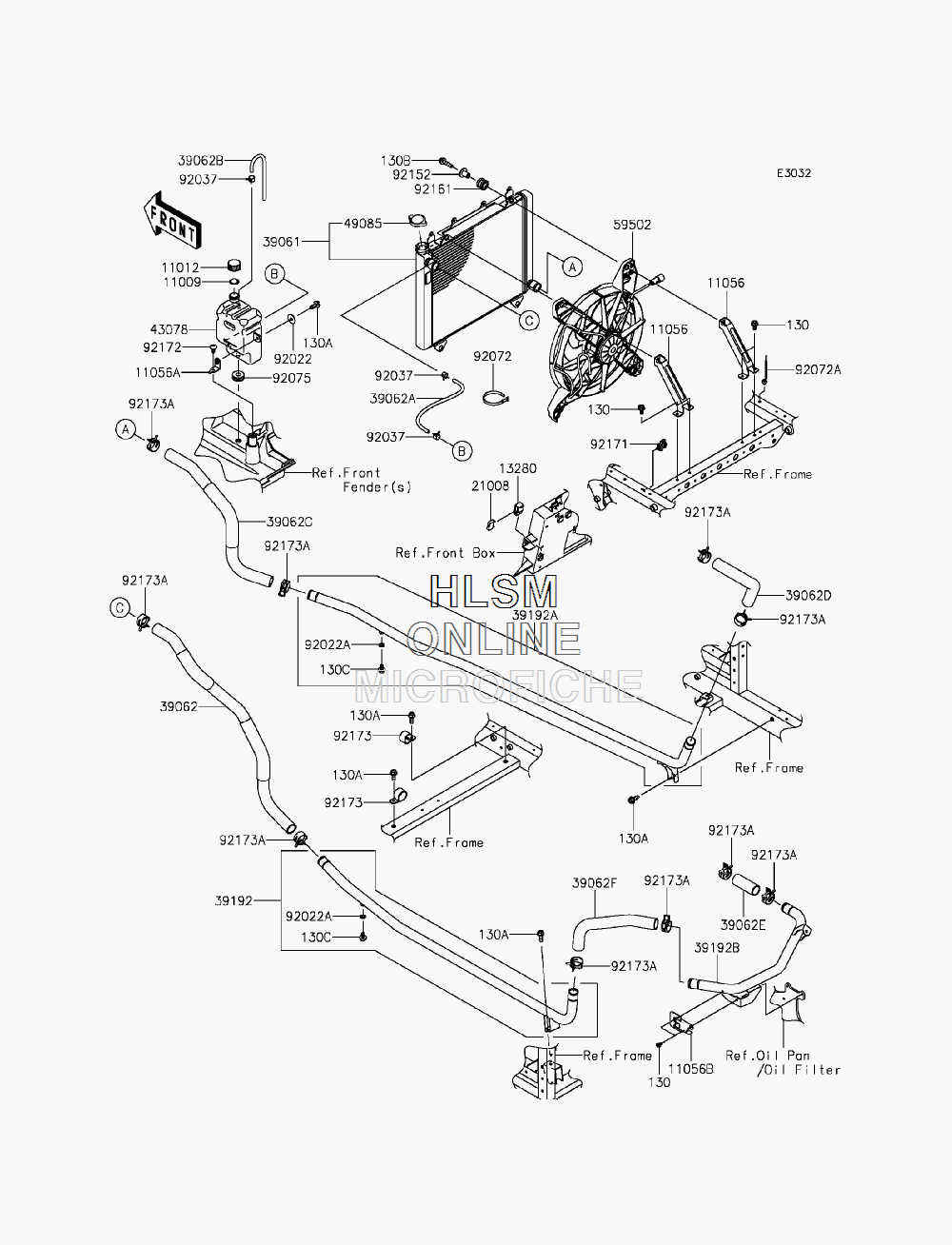

RADIATOR для Kawasaki MULE PRO-DX EPS (KAF1000EGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
130C130BB0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
1100911009-1145 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1101211012-1084 CAPCAP
-
1105611056-2833 BRACKET, RADIATORBRACKET, RADIATOR
-
11056A11056-3856 BRACKET, RESERVOIRBRACKET, RESERVOIR
-
11056B11056-7479 BRACKET, HARNESSBRACKET, HARNESS
-
1328013280-0082 HOLDER, BREAKERHOLDER, BREAKER
-
2100821008-0554 BREAKER, RAD. FAN, 20ABREAKER, RAD. FAN, 20A
-
3906139061-0706 RADIATOR-ASSYRADIATOR-ASSY
-
3906239062-0650 HOSE-COOLING, RADIATOR INHOSE-COOLING, RADIATOR IN
-
39062A39062-0657 HOSE-COOLING, RAD.-RESERVOIRHOSE-COOLING, RAD.-RESERVOIR
-
39062B39062-0696 HOSE-COOLING, OVER FLOWHOSE-COOLING, OVER FLOW
-
39062C39062-0697 HOSE-COOLING, RADIATOR OUTHOSE-COOLING, RADIATOR OUT
-
39062D39062-0713 HOSE-COOLING, ENGINE INHOSE-COOLING, ENGINE IN
-
39062E39062-0714 HOSE-COOLING, ENGINE OUTHOSE-COOLING, ENGINE OUT
-
39062F39062-0715 HOSE-COOLING, ENGINE OUTHOSE-COOLING, ENGINE OUT
-
3919239192-0575 PIPE-WATER, LEFT HANDPIPE-WATER, LEFT HAND
-
39192A39192-0591 PIPE-WATER, RIGHT HANDPIPE-WATER, RIGHT HAND
-
39192B39192-0593 PIPE-WATER, CENTERPIPE-WATER, CENTER
-
4307843078-0571 RESERVOIRRESERVOIR
-
4908549085-0005 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-0566 FAN-ASSYFAN-ASSY
-
9202292022-165 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
9207292072-056 BAND, L=186BAND, L=186
-
92072A92072-1414 BANDBAND
-
9207592075-1185 DAMPERDAMPER
-
9215292152-1512 COLLARCOLLAR
-
9216192161-1349 DAMPERDAMPER
-
9217192171-0453 CLAMPCLAMP
-
9217292172-0284 SCREW, 6X16SCREW, 6X16
-
9217392173-1204 CLAMPCLAMP
-
92173A92173-1205 CLAMP, 28.6MMCLAMP, 28.6MM
