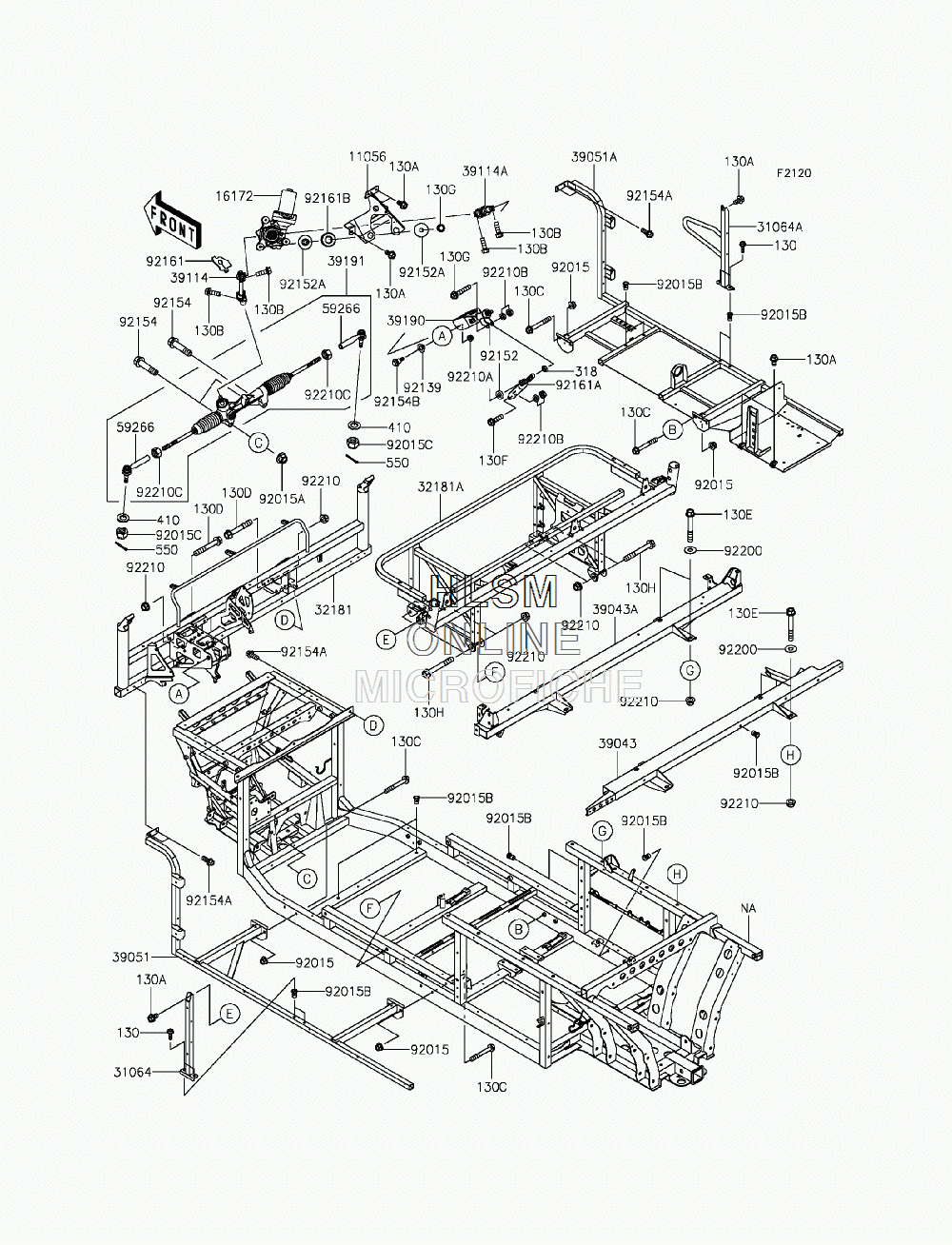

FRAME для Kawasaki MULE PRO-DX EPS (KAF1000EGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130A130BA0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
130B130BA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130C130BA0860 BOLT-FLANGED, 8X60BOLT-FLANGED, 8X60
-
130D130BA1065 BOLT-FLANGED, 10X65BOLT-FLANGED, 10X65
-
130E130BA1070 BOLT-FLANGED, 10X70BOLT-FLANGED, 10X70
-
130F130CA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
1105611056-2838 BRACKETBRACKET
-
1617216172-0557 ACTUATOR, EPSACTUATOR, EPS
-
3106431064-0664 PIPE-COMP, SEAT SIDE, LEFT HANDPIPE-COMP, SEAT SIDE, LEFT HAND
-
31064A31064-0665 PIPE-COMP, SEAT SIDE, RIGHT HANDPIPE-COMP, SEAT SIDE, RIGHT HAND
-
3218132181-0011 FRAME-SUB-COMP, DASH PANELFRAME-SUB-COMP, DASH PANEL
-
32181A32181-0013 FRAME-SUB-COMP, SEATFRAME-SUB-COMP, SEAT
-
3904339043-0020 CROSSMEMBER-COMP, REAR CROSSCROSSMEMBER-COMP, REAR CROSS
-
39043A39043-0026 CROSSMEMBER-COMP, C-PILLARCROSSMEMBER-COMP, C-PILLAR
-
3905139051-0003 FRAME-COMP-SIDE, LEFT HANDFRAME-COMP-SIDE, LEFT HAND
-
39051A39051-0008 FRAME-COMP-SIDE, RIGHT HANDFRAME-COMP-SIDE, RIGHT HAND
-
3911439114-0015 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
39114A39114-0019 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
3919039190-0006 SHAFT-ASSY-STEERINGSHAFT-ASSY-STEERING
-
3919139191-0030 GEAR-ASSY-STEERINGGEAR-ASSY-STEERING
-
5926659266-0712 JOINT-BALLJOINT-BALL
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
92015B92015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015C92015-1841 NUT, CASTLE, 14MMNUT, CASTLE, 14MM
-
9213992139-0230 BUSHINGBUSHING
-
9215292152-1848 COLLAR, 8.2X18X5COLLAR, 8.2X18X5
-
92152A92152-2149 COLLAR, 8.5X30X10.6COLLAR, 8.5X30X10.6
-
9215492154-1008 BOLT, FLANGED, 12X50BOLT, FLANGED, 12X50
-
92154A92154-1226 BOLT, FLANGED, 8X20BOLT, FLANGED, 8X20
-
92154B92154-1320 BOLT, 6X21.5BOLT, 6X21.5
-
9216192161-1689 DAMPERDAMPER
-
92161A92161-1825 DAMPERDAMPER
-
92161B92161-7517 DAMPER, ACTUATORDAMPER, ACTUATOR
-
9220092200-1595 WASHER, 10.5X25X1.6WASHER, 10.5X25X1.6
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
-
92210A92210-0303 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92210B92210-0934 NUT, HARD LOCK, 8MMNUT, HARD LOCK, 8MM
-
92210C92210-0969 NUT, 16MMNUT, 16MM
-
130G130CA0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
130H130CA1075 BOLT-FLANGED, 10X75BOLT-FLANGED, 10X75
-
318318BA0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
410410AA1400 WASHER-PLAIN-SMALL, 14MMWASHER-PLAIN-SMALL, 14MM
-
550550AA3025 PIN-COTTER, 3.0X25PIN-COTTER, 3.0X25
