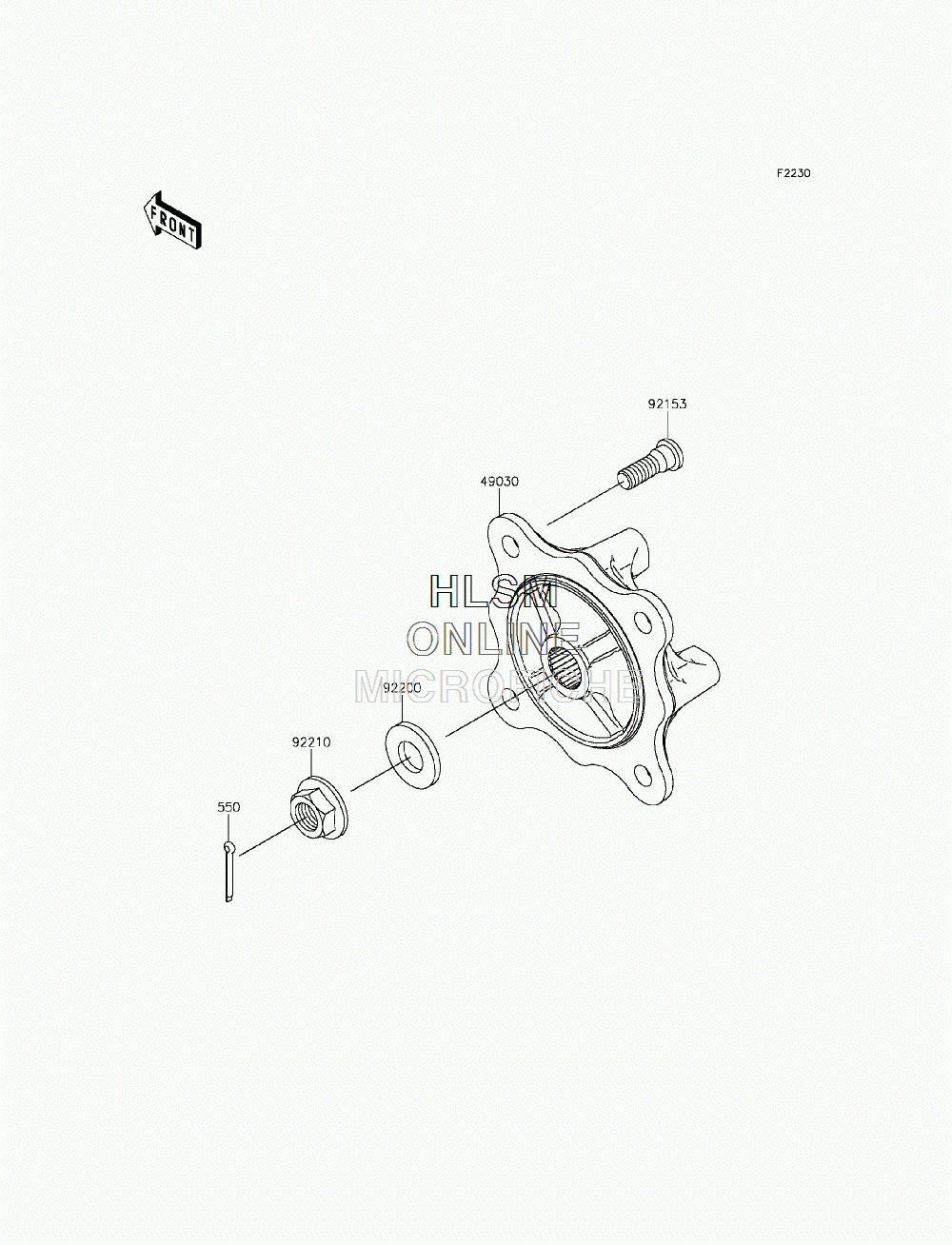

BRAKE - FRONT W/ HUB для Kawasaki MULE PRO-FXT RANCH EDITION (KAF820JGF) - 2016 года выпуска
-
№АртикулНазвание
-
550550AA4030 PIN-COTTER, 4.0X30PIN-COTTER, 4.0X30
-
4903049030-0048 HUB, FRONTHUB, FRONT
-
9215392153-1915 BOLT, 12MMBOLT, 12MM
-
9220092200-0921 WASHER, 20.3X41X4.5WASHER, 20.3X41X4.5
-
9221092210-2093 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
