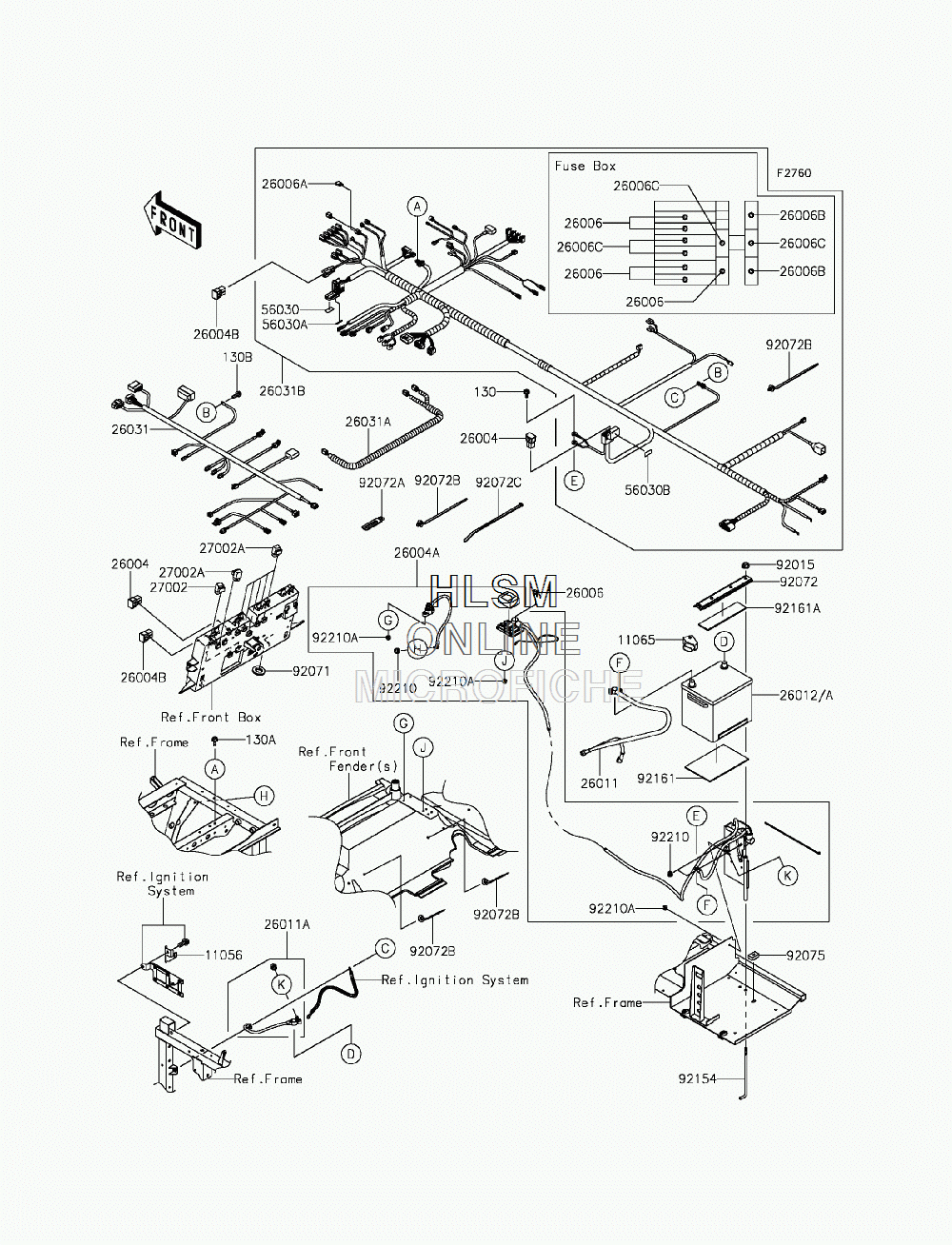

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki MULE PRO-FXT RANCH EDITION (KAF820JGF) - 2016 года выпуска
-
№АртикулНазвание
-
130130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130B130BA0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
1105611056-4397 BRACKETBRACKET
-
1106511065-0850 CAPCAP
-
2600426004-0024 FUSE-ASSY, 60AFUSE-ASSY, 60A
-
26004A26004-0025 FUSE-ASSYFUSE-ASSY
-
26004B26004-1093 FUSE-ASSY, 40AFUSE-ASSY, 40A
-
2600626006-0009 FUSE, MINI BLADE, 10A, REDFUSE, MINI BLADE, 10A, RED
-
26006A26006-0052 FUSE, MINI BLADE, 2A, GRAYFUSE, MINI BLADE, 2A, GRAY
-
26006B26006-1080 FUSE, MINI BLADE, 30A, GREENFUSE, MINI BLADE, 30A, GREEN
-
26006C26006-3704 FUSE, MINI BLADE, 20A, YELLOWFUSE, MINI BLADE, 20A, YELLOW
-
2601126011-0851 WIRE-LEAD, BATTERY (+)WIRE-LEAD, BATTERY (+)
-
26011A26011-0912 WIRE-LEAD, BATTERY (-)WIRE-LEAD, BATTERY (-)
-
2601226012-0619 BATTERY, 12V 32AH (USA ONLY)BATTERY, 12V 32AH (USA ONLY)
-
26012A26012-7501 BATTERY, WET, (26R) (CANADA ONLY)BATTERY, WET, (26R) (CANADA ONLY)
-
2603126031-1644 HARNESSHARNESS
-
26031A26031-1647 HARNESS, SUBHARNESS, SUB
-
26031B26031-1857 HARNESS, MAINHARNESS, MAIN
-
2700227002-0022 RELAY-ASSYRELAY-ASSY
-
27002A27002-1062 RELAY-ASSYRELAY-ASSY
-
5603056030-0850 LABEL, FUSE BOX1LABEL, FUSE BOX1
-
56030A56030-0854 LABEL, FUSE BOX2LABEL, FUSE BOX2
-
56030B56030-0891 LABEL, FUSE CASELABEL, FUSE CASE
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9207192071-0729 GROMMET, 22X45X9GROMMET, 22X45X9
-
9207292072-0767 BANDBAND
-
92072A92072-0770 BANDBAND
-
92072B92072-1414 BANDBAND
-
92072C92072-3509 BAND, L=292.1BAND, L=292.1
-
9207592075-099 DAMPERDAMPER
-
9215492154-1650 BOLT, BATTERYBOLT, BATTERY
-
9216192161-0578 DAMPERDAMPER
-
92161A92161-1753 DAMPERDAMPER
-
9221092210-0978 NUT, LOCK, M6NUT, LOCK, M6
-
92210A92210-1427 NUT, LOCK, M5NUT, LOCK, M5
