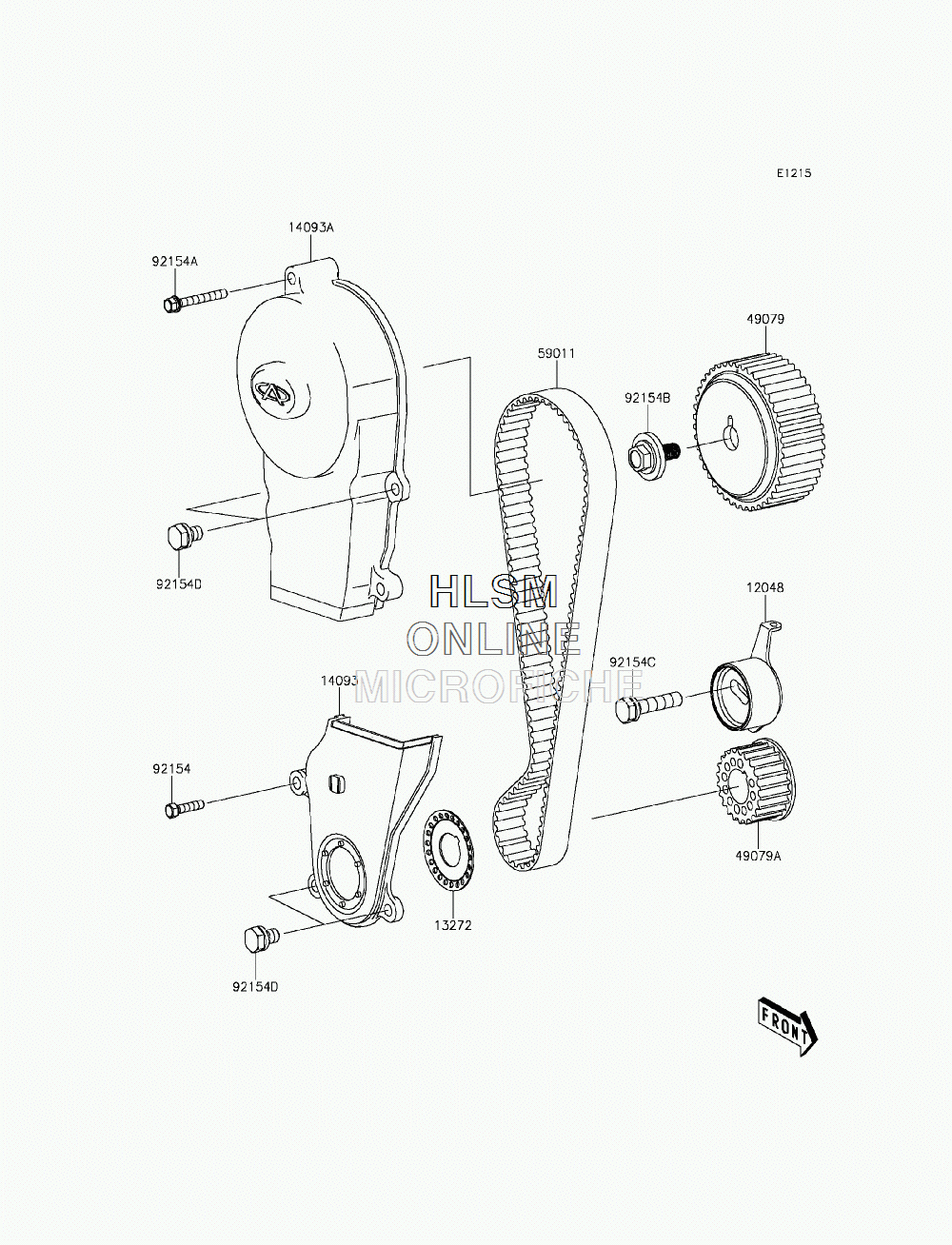

TIMING BELT для Kawasaki MULE PRO-FXT RANCH EDITION (KAF820JGF) - 2016 года выпуска
-
№АртикулНазвание
-
1204812048-0093 TENSIONER-ASSYTENSIONER-ASSY
-
1327213272-1872 PLATE, TIMING BELTPLATE, TIMING BELT
-
1409314093-0200 COVER, TIMING BELT, LOWERCOVER, TIMING BELT, LOWER
-
14093A14093-0201 COVER, TIMING BELT, UPPERCOVER, TIMING BELT, UPPER
-
4907949079-0023 PULLEY-BELT, CAMSHAFTPULLEY-BELT, CAMSHAFT
-
49079A49079-0024 PULLEY-BELT, CRANKSHAFTPULLEY-BELT, CRANKSHAFT
-
5901159011-0042 BELT, TIMINGBELT, TIMING
-
9215492154-1583 BOLT, 6X25BOLT, 6X25
-
92154A92154-1591 BOLT, 6X50BOLT, 6X50
-
92154B92154-1614 BOLT, FLANGEDBOLT, FLANGED
-
92154C92154-1615 BOLT, 10X45BOLT, 10X45
-
92154D92154-1617 BOLT, 6X16BOLT, 6X16
