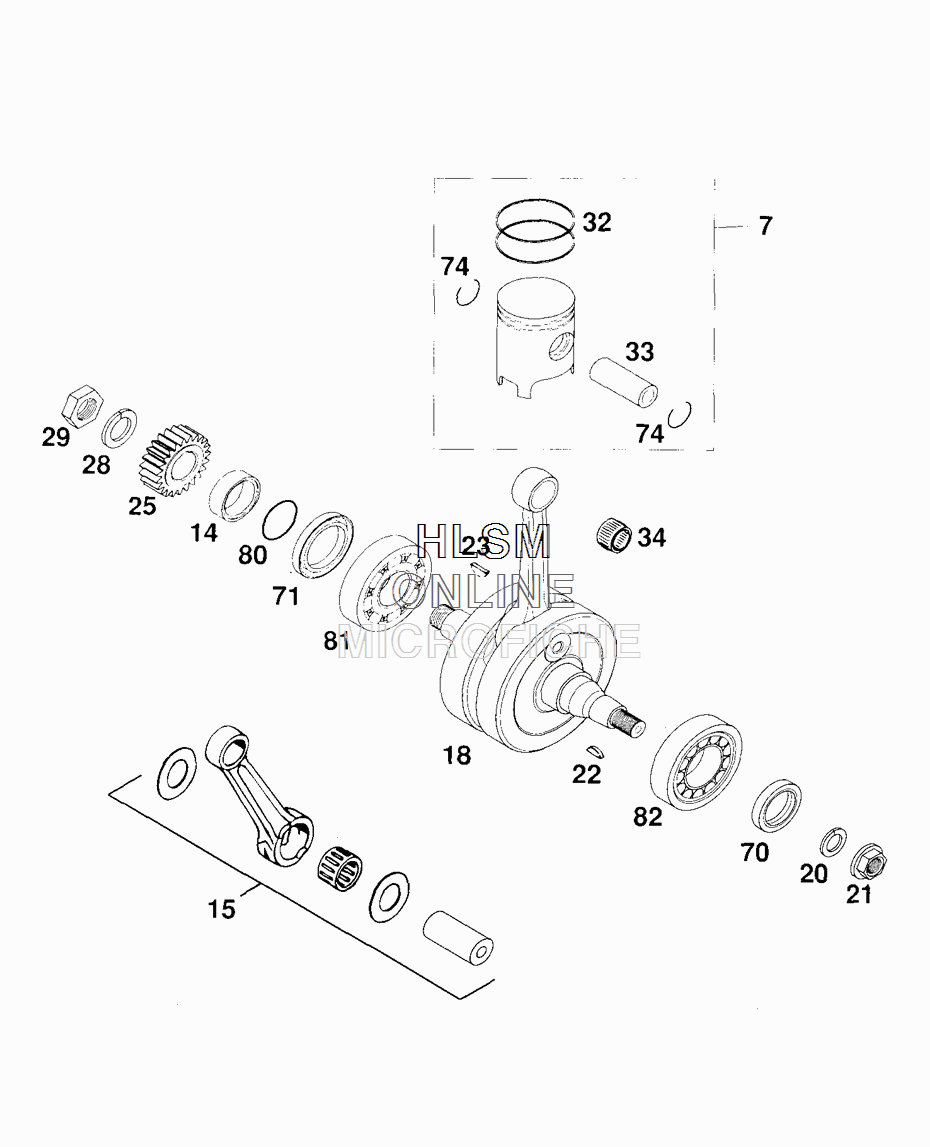

CRANKSHAFT W/ PISTON для Ktm 125 SX - 2000 года выпуска

№

Артикул

Название
7

50330007000 1 PISTON I CPL. 54,25MM (ONE RING)

PISTON I CPL. 54,25MM (ONE RING)

0 ₽
7

50330007000 2 PISTON II CPL. 54,25MM (ONE RING)

PISTON II CPL. 54,25MM (ONE RING)

0 ₽
7

50330007200I PISTON I CPL. 54,25MM (TWO RING)

PISTON I CPL. 54,25MM (TWO RING)

50 570 ₽
7

50330007200II PISTON II CPL. 54,25MM (TWO RING)

PISTON II CPL. 54,25MM (TWO RING)

56 600 ₽
14

54633014100 SPACER BUSHING 12 MM

SPACER BUSHING 12 MM

5 140 ₽
15

50330015000 CON.ROD REPAIR KIT

CON.ROD REPAIR KIT

99 500 ₽
18

50330018000 CRANKSHAFT STROKE 54

CRANKSHAFT STROKE 54

170 ₽
20

50230029012 LOCKING RING VSK 12

LOCKING RING VSK 12

290 ₽
21

49030021000 COLLAR NUT M12X1 (RIGHT)

COLLAR NUT M12X1 (RIGHT)

2 660 ₽
22

0888030050 WOODRUFF KEY DIN6888-3X5X13

WOODRUFF KEY DIN6888-3X5X13

290 ₽
23

6946005 WOODRUFF KEY 5X6,5 HARDED

WOODRUFF KEY 5X6,5 HARDED

290 ₽
25

50332023023 PRIMARY PINION 23-T

PRIMARY PINION 23-T

22 170 ₽
28

50230029016 LOCKING RING VSK 16

LOCKING RING VSK 16

350 ₽
29

50330029000 HEXAGON NUT M 16 X 1,5 - (LEFT)

HEXAGON NUT M 16 X 1,5 - (LEFT)

1 870 ₽
32

50230032500 SQUARE RING 54,25X1

SQUARE RING 54,25X1

10 410 ₽
33

50130033000 PISTON PIN 9X15X46,3

PISTON PIN 9X15X46,3

9 980 ₽
33

52330033000 PISTON PIN 10X16X46 200'98

PISTON PIN 10X16X46 200'98

7 920 ₽
34

51030034000 NEEDLE BEARING K15 X 19 X 20

NEEDLE BEARING K15 X 19 X 20

6 750 ₽
70

0760253570 SHAFT SEAL RING 25X35X7 BTSL

SHAFT SEAL RING 25X35X7 BTSL

4 650 ₽
71

0760324564 SHAFT SEAL RING 32X45X6,5 BT

SHAFT SEAL RING 32X45X6,5 BT

5 780 ₽
74

52030074000 WIRE LOCK RING C15X1,2

WIRE LOCK RING C15X1,2

520 ₽
80

0770250020 O-RING 25,00X2,00 NBR 70

O-RING 25,00X2,00 NBR 70

560 ₽
81

0625063054 BALL BEARING NSK 6305 C4E

BALL BEARING NSK 6305 C4E

0 ₽
82

50330082000 CYL.ROLLER BEAR. NJ206 E T2XC3

CYL.ROLLER BEAR. NJ206 E T2XC3

22 490 ₽
