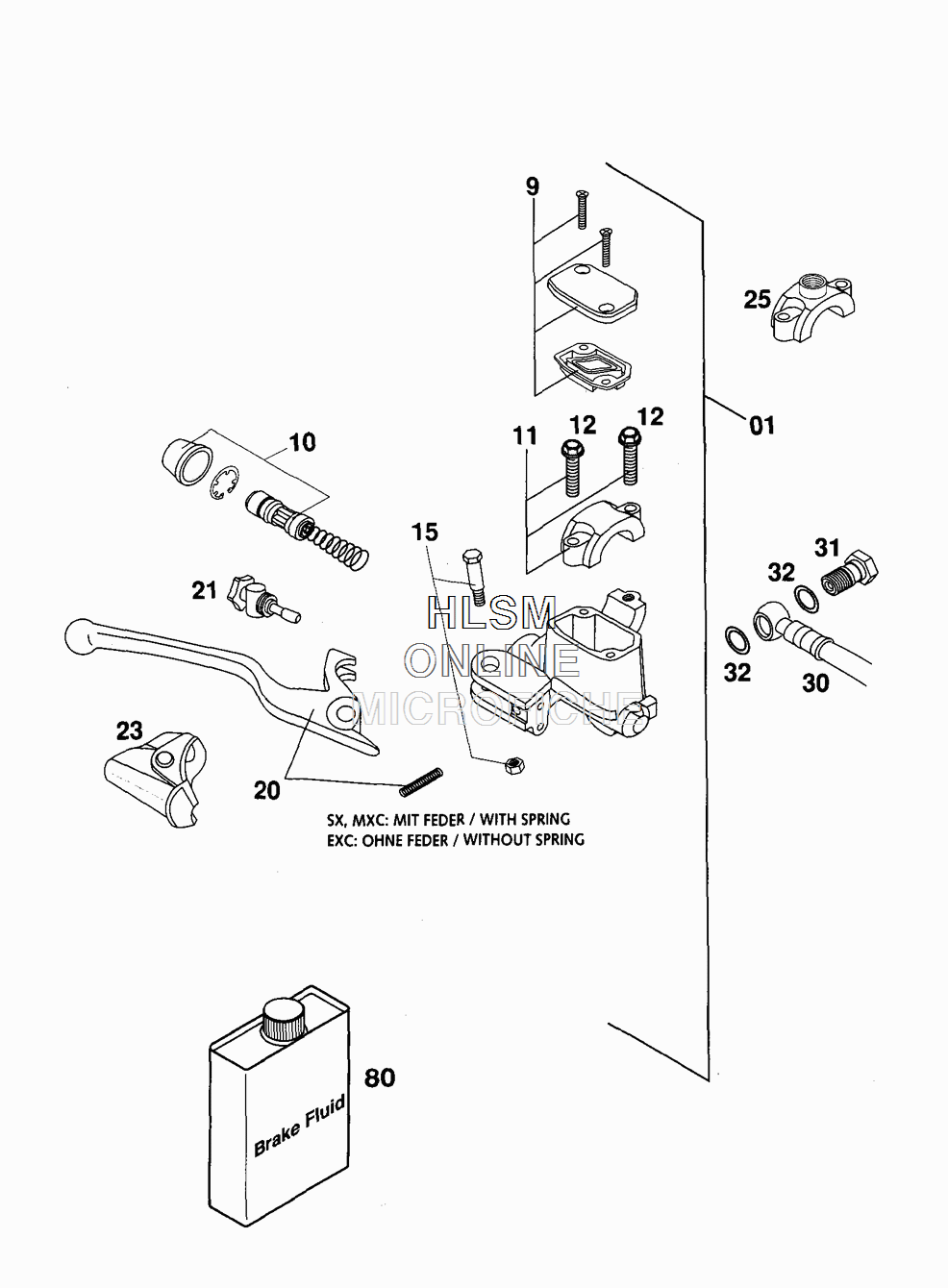

HAND BRAKE CYLINDER для Ktm 125 SX - 2000 года выпуска
-
№АртикулНазвание
-
0150313001000 HANDBRAKE CYL. SMALL NATUREHANDBRAKE CYL. SMALL NATURE
-
950313003000 HANDBRAKE CYL. COVER CPL.NATUREHANDBRAKE CYL. COVER CPL.NATURE
-
1050313008000 REP.SET PISTONREP.SET PISTON
-
1150313005000 CLAMP CPL. NATURECLAMP CPL. NATURE
-
120015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1550313006000 LEVER SCREW CPL. MOD.LEVER SCREW CPL. MOD.
-
2050313002000 HANDBRAKELEVER SHORT 18MMHANDBRAKELEVER SHORT 18MM
-
2150313007000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
2350313004000 PROTECTION CAP HAND BRAKE CYLINDERPROTECTION CAP HAND BRAKE CYLINDER
-
2558012040150 CLAMP FOR MIRROW '94CLAMP FOR MIRROW '94
-
3059013010000 BRAKEHO. FRONT 1235MMBRAKEHO. FRONT 1235MM
-
3150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
3242013226000 CU-SEAL RING DIN7603-1OX16X1CU-SEAL RING DIN7603-1OX16X1
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
Все узлы модели:
- ACCESSORIES
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR (KEIHIN PWK 39/38AG)
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM (USA)
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST PIPE
- EXHAUST SILENCER
- FLASHER - REAR LIGHT
- FORK LEGS (W/ PAINT)
- FRAME W/ SUB FRAME
- FRESH OIL LUBRICATION
- FRONT FORK (W/ PAINT)
- FRONT WHEEL
- • HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- HEAD LIGHT
- IGNITION SYSTEM (KOKUSAN)
- KICKSTARTER
- MASK W/ FENDER
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CONTROL
- SHIFTING MECHANISM
- SHOCK ABSORBER (W/ PAINT)
- SIDE AND CENTER STAND
- SPECIAL TOOLS
- SPEEDOMETER
- SPEEDOMETER (SIGMA SPORT)
- SPEEDOMETER ODOMETER
- SWINGARM W/ CHAIN GUARD
- TANK - SEAT - COVER
- TRANSMISSION I
- TRANSMISSION II
- TWIN VALVE CONTROL
