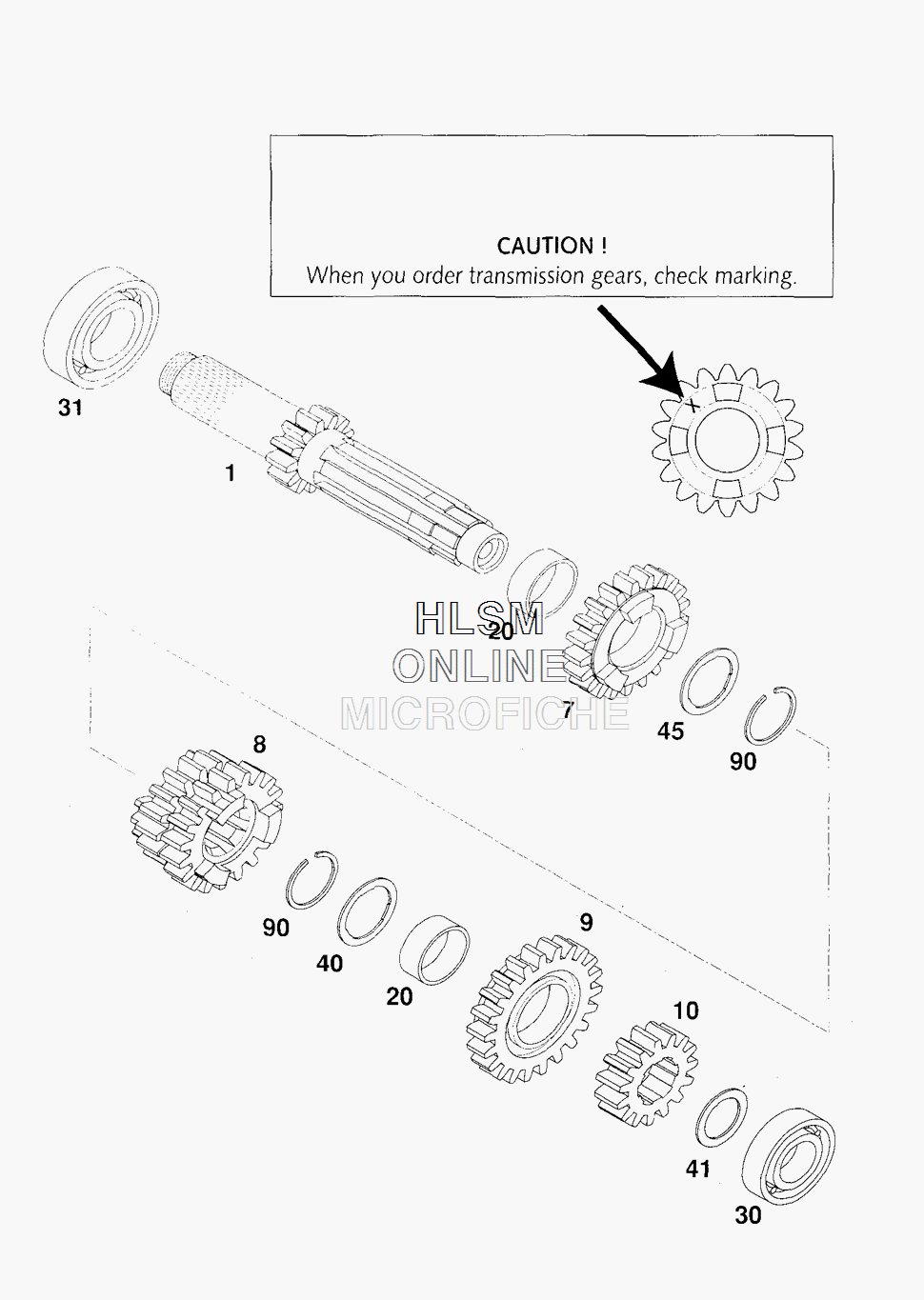

TRANSMISSION I для Ktm 125 SX - 2000 года выпуска
-
№АртикулНазвание
-
150333001144 MAIN SHAFT CPL. 12-TMAIN SHAFT CPL. 12-T
-
150333001044 MAIN SHAFT CPL. 13-TMAIN SHAFT CPL. 13-T
-
750333007000 IDLER G.5TH G.21-T "5S21"IDLER G.5TH G.21-T "5S21"
-
752333007000 IDLER G.5TH G.17-T "5G17"IDLER G.5TH G.17-T "5G17"
-
850333008000 SLIDING GEAR 3/4.GEAR 17/19-T ("351SLIDING GEAR 3/4.GEAR 17/19-T ("351
-
950333009000 IDLER G.6TH G.22-T "6522"IDLER G.6TH G.22-T "6522"
-
950333009100 IDLER G.6TH G.20-T "6620"IDLER G.6TH G.20-T "6620"
-
950333009300 IDLER G.6TH G.22-T "6622"IDLER G.6TH G.22-T "6622"
-
1050333010000 SOLID GEAR 2ND GEAR 15-TSOLID GEAR 2ND GEAR 15-T
-
2050333020000 IDLER GEAR BUSHING 22X25X11,1IDLER GEAR BUSHING 22X25X11,1
-
300625060031 BALL BEARING 6003 TNH C3BALL BEARING 6003 TNH C3
-
310625060041 BALL BEARING 6004 TNH C3BALL BEARING 6004 TNH C3
-
4050333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
4550333045000 STOP DISK 22,2X27,8X1STOP DISK 22,2X27,8X1
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
