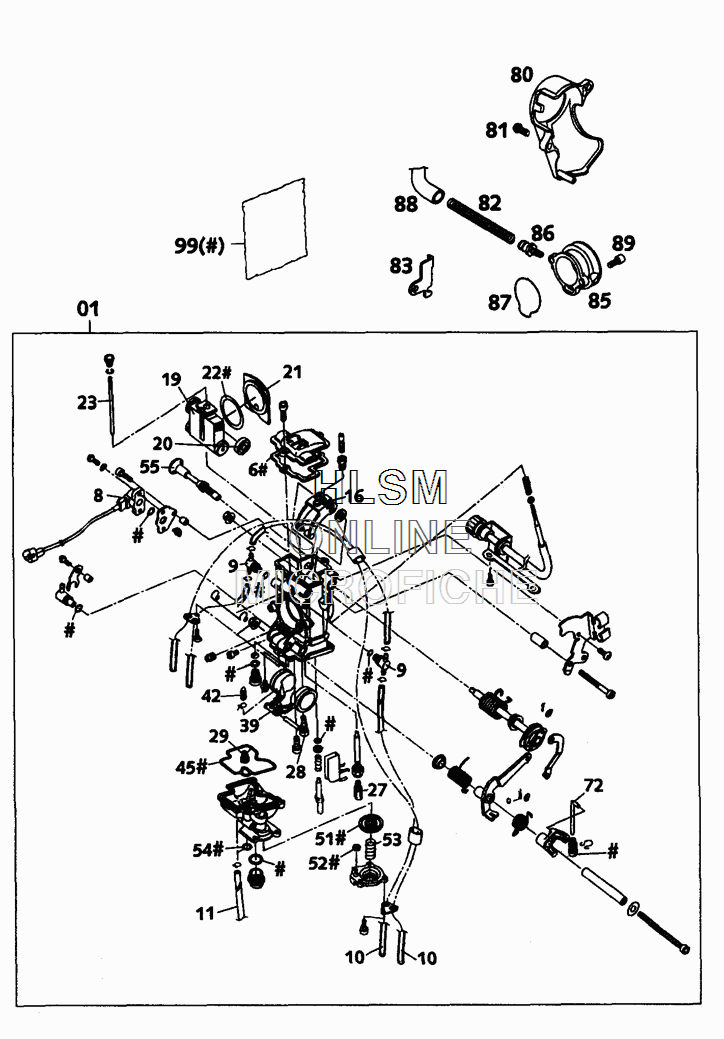

CARBURETOR (KEIHIN MX-FCR39) для Ktm 520 EXC Racing - 2000 года выпуска
-
№АртикулНазвание
-
0159031001000 CARBURETOR KEIH. MX FCR39CARBURETOR KEIH. MX FCR39
-
659031028000 GASKET CARBURETOR COVERGASKET CARBURETOR COVER
-
859031077000 THROTTLE POSITION SENSORTHROTTLE POSITION SENSOR
-
959031083000 T-JOINT BREATHER HOSET-JOINT BREATHER HOSE
-
1031007007101 BREATHER HOSE 4 X 6 MMBREATHER HOSE 4 X 6 MM
-
1152031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
1659031035051 LINK ARM THROTTLE VALVE CPL.LINK ARM THROTTLE VALVE CPL.
-
1959031035015 THROTTLE VALVE 15 CPL.THROTTLE VALVE 15 CPL.
-
2059031035050 BEARING THROTTLE VALVEBEARING THROTTLE VALVE
-
2159031035053 GASKET PLATE THROTTLE VALVEGASKET PLATE THROTTLE VALVE
-
2259031035052 GASKET WASHER THROTTLE VALVEGASKET WASHER THROTTLE VALVE
-
23590310340VR JET NEEDLE OBDVRJET NEEDLE OBDVR
-
23590310340TM JET NEEDLE OBDTMJET NEEDLE OBDTM
-
2759031023172 MAIN JET 172MAIN JET 172
-
2759031023175 MAIN JET 175MAIN JET 175
-
2759031023178 MAIN JET 178MAIN JET 178
-
2759031023180 MAIN JET 180MAIN JET 180
-
2859031607048 IDLE JET 48IDLE JET 48
-
2859031607050 IDLE JET 50IDLE JET 50
-
2859031607052 IDLE JET 52IDLE JET 52
-
2959031051085 STARTER JET 85STARTER JET 85
-
3959031009000 FLOAT CPLFLOAT CPL
-
4259031020000 FLOAT VALVE CPL.FLOAT VALVE CPL.
-
4559031010000 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
5159031057000 DIAPHRAGM ACCELERATOR PUMPDIAPHRAGM ACCELERATOR PUMP
-
5259031058000 U-RINGU-RING
-
5359031059000 COIL SPRINGCOIL SPRING
-
5459031058100 O-RINGO-RING
-
5559031048000 STARTER VALVE CPLSTARTER VALVE CPL
-
7259031061000 ROD ACCELERATOR PUMPROD ACCELERATOR PUMP
-
8059031086000 CARBURETOR COVER RACING 2000CARBURETOR COVER RACING 2000
-
810015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
8232003073000 PRESSURE SPRINGPRESSURE SPRING
-
8359031029024 SLIDE STOP 24,5MMSLIDE STOP 24,5MM
-
8559031040000 INTAKE FUNNELINTAKE FUNNEL
-
8659031040050 CONNECTION SCREW WS=13CONNECTION SCREW WS=13
-
8759031040010 O-RING FOR INTAKE FUNNELO-RING FOR INTAKE FUNNEL
-
8859031050000 TUBE ENGINE BREATHER 0,71MTUBE ENGINE BREATHER 0,71M
-
890912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
9959031099000 GASKET SET FCR39 KEIHINGASKET SET FCR39 KEIHIN
