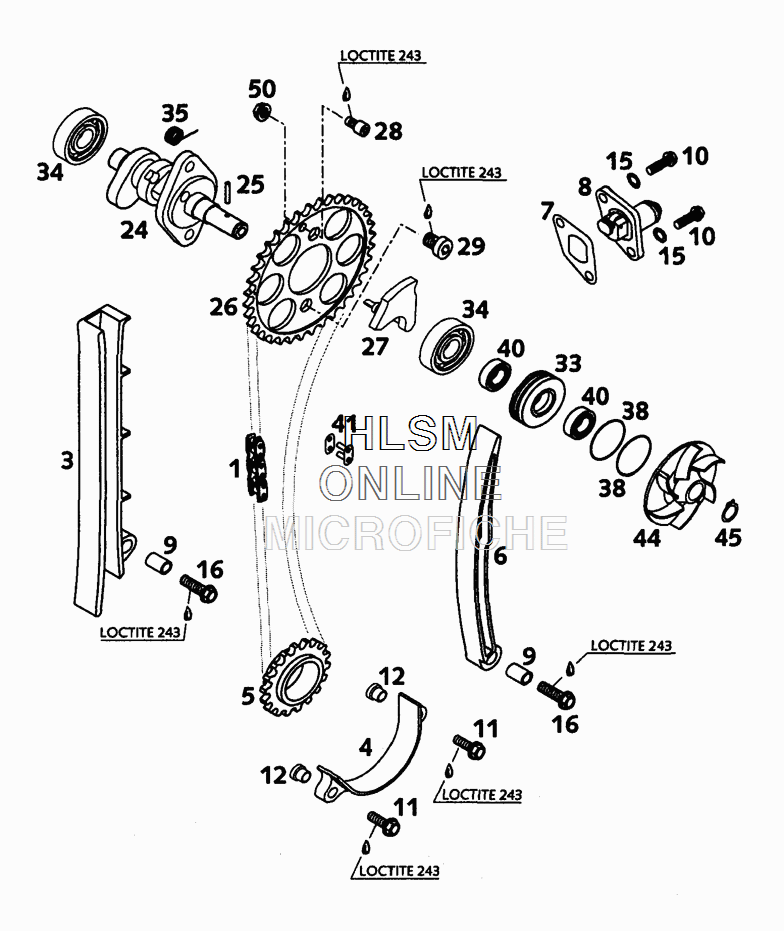

TIMING VALVE для Ktm 520 EXC Racing - 2000 года выпуска
-
№АртикулНазвание
-
159036013000 TIMING CHAIN 97 ROLLSTIMING CHAIN 97 ROLLS
-
359036001000 TIMING CHAIN GUIDE RACINGTIMING CHAIN GUIDE RACING
-
459036018000 SECURING GUIDE RACINGSECURING GUIDE RACING
-
559036014000 TIMING GEAR 18-TTIMING GEAR 18-T
-
659036002000 TIMING CHAIN TENSIONERTIMING CHAIN TENSIONER
-
759036003050 GASKET TIMING CHAIN TENSIONERGASKET TIMING CHAIN TENSIONER
-
859036003000 TIMINGCHAIN TENSIONER CPL.TIMINGCHAIN TENSIONER CPL.
-
959036001050 SPACER BUSHING 6,1X8,2X13,1SPACER BUSHING 6,1X8,2X13,1
-
100015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
110015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
1259036018050 SUPPORTING SLEEVE 5,2X7X10X7,7SUPPORTING SLEEVE 5,2X7X10X7,7
-
150603061001 CU-SEAL RING DIN7603- 6X10X1CU-SEAL RING DIN7603- 6X10X1
-
160015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
2459036010000 CAMSHAFT "55"CAMSHAFT "55"
-
250402031380 NEEDLE ROLLER DIN5402 3X13,8NEEDLE ROLLER DIN5402 3X13,8
-
2659036011000 CAMSHAFT GEAR 36-TCAMSHAFT GEAR 36-T
-
2759036016000 AUTO DECOMPRESSION SHAFTAUTO DECOMPRESSION SHAFT
-
280912050106 AH SCREW M5X10 DIN912 10.9AH SCREW M5X10 DIN912 10.9
-
290984080103 AH SCREW DIN7984-M 8X10 8.8AH SCREW DIN7984-M 8X10 8.8
-
3359036081000 GASKET SUPPORT 33X11GASKET SUPPORT 33X11
-
340625062014 BALL BEARING 6201 C3 NTNBALL BEARING 6201 C3 NTN
-
3559036017000 SPRING 0,55MM FOR AUTODECOMPR.SPRING 0,55MM FOR AUTODECOMPR.
-
380770230020 O-RING 23,00X2,00 NBR70O-RING 23,00X2,00 NBR70
-
400760101840 SHAFT SEAL R.10X18X4/4.8 ASX7SHAFT SEAL R.10X18X4/4.8 ASX7
-
4159036013050 RIVET LINK FOR TIMING CHAINRIVET LINK FOR TIMING CHAIN
-
4459035055000 WATER PUMP WHEELWATER PUMP WHEEL
-
450471100010 CIRCLIPDIN0471-10X1CIRCLIPDIN0471-10X1
-
500985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
