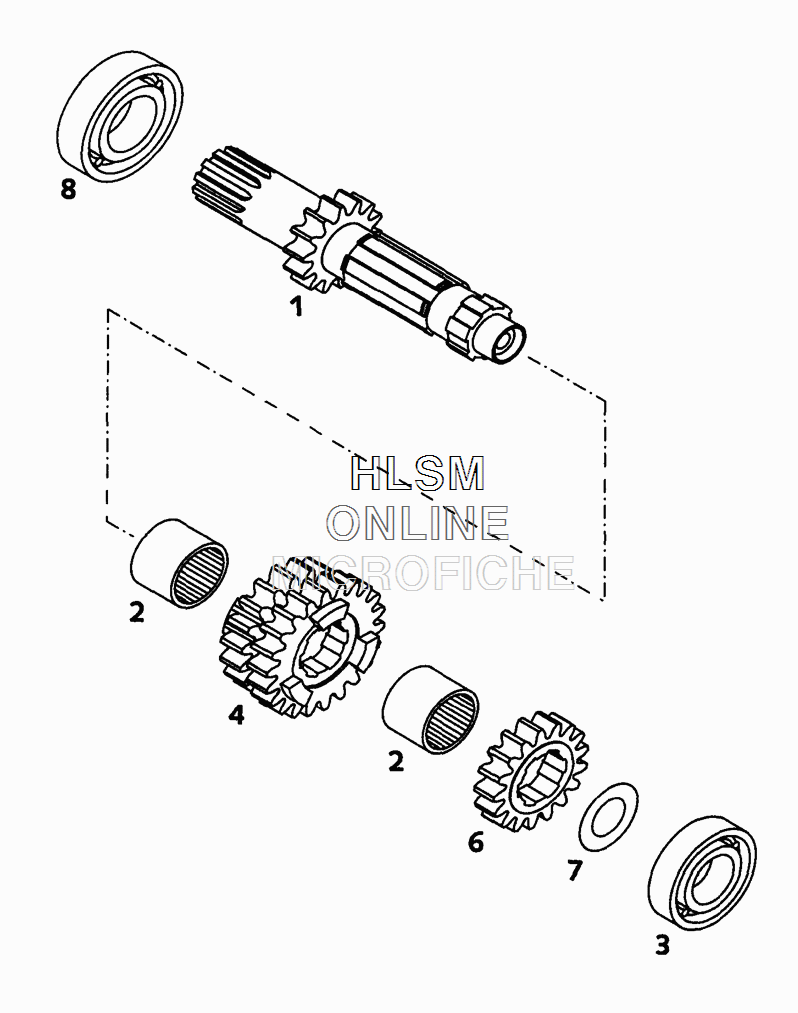

TRANSMISSION I 4 GEAR для Ktm 520 EXC Racing - 2000 года выпуска
-
№АртикулНазвание
-
159033001000 MAIN SHAFT 14-ZMAIN SHAFT 14-Z
-
259033032000 SPACER BUSHING 25X29X24,4SPACER BUSHING 25X29X24,4
-
30625062034 BALL BEARING 6203 C3 NTNBALL BEARING 6203 C3 NTN
-
459033003038 SLIDING GEAR 3/4.G 22/20-Z"38"SLIDING GEAR 3/4.G 22/20-Z"38"
-
659033002037 SOLID GEAR 2.G 18-TSOLID GEAR 2.G 18-T
-
76227430 THRUST WASHER 17,2X30X1THRUST WASHER 17,2X30X1
-
80625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
