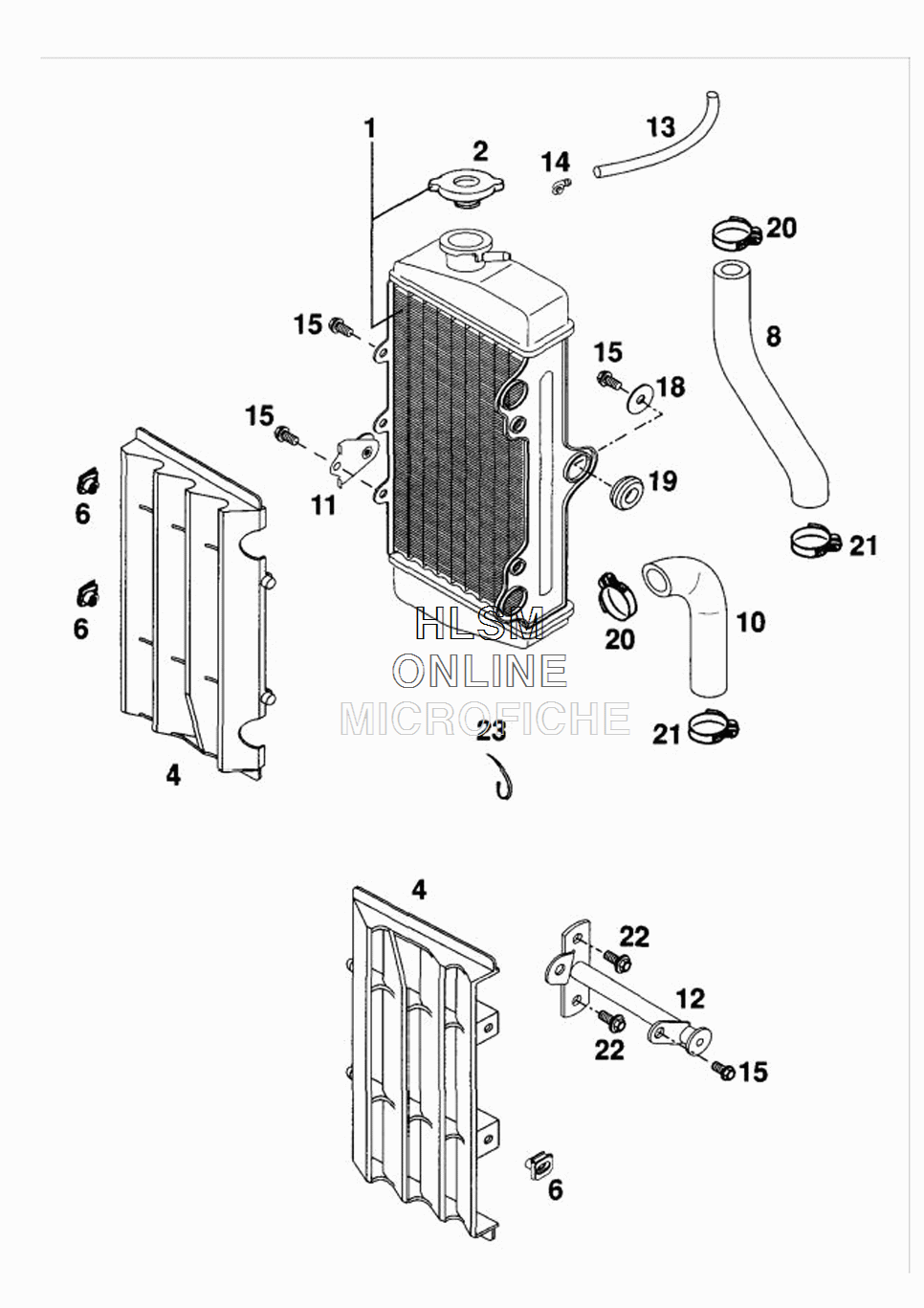

COOLING SYSTEM для Ktm 65 SX - 2000 года выпуска
-
№АртикулНазвание
-
146035008000 RADIATOR (45301) (RIGHT)RADIATOR (45301) (RIGHT)
-
258035016000 RADIATOR CAP SMALL 1,4 BARRADIATOR CAP SMALL 1,4 BAR
-
454535034000 RADIATOR PROTECTOR 60165 (LEFT)RADIATOR PROTECTOR 60165 (LEFT)
-
650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
846035025000 PREFORMED HOSE 18X25 LONGPREFORMED HOSE 18X25 LONG
-
1046035026000 PREFORMED HOSE 18X25 SHORTPREFORMED HOSE 18X25 SHORT
-
1146008153000 BRACKET FOR SPOILER (RIGHT)BRACKET FOR SPOILER (RIGHT)
-
1246008053000 BRACKET FOR SPOILER (LEFT)BRACKET FOR SPOILER (LEFT)
-
1355007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
1450303089000 ANGEL PIECEANGEL PIECE
-
150015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
180021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1941001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
2010001020000 HOSE CLAMP GEMI 16/27HOSE CLAMP GEMI 16/27
-
2110001020100 HOSE CLAMP GEMI 12/22HOSE CLAMP GEMI 12/22
-
220014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
2344011076200 CABLE TIE 200MMCABLE TIE 200MM
-
2344011076305 CABLE TIE 290MMCABLE TIE 290MM
