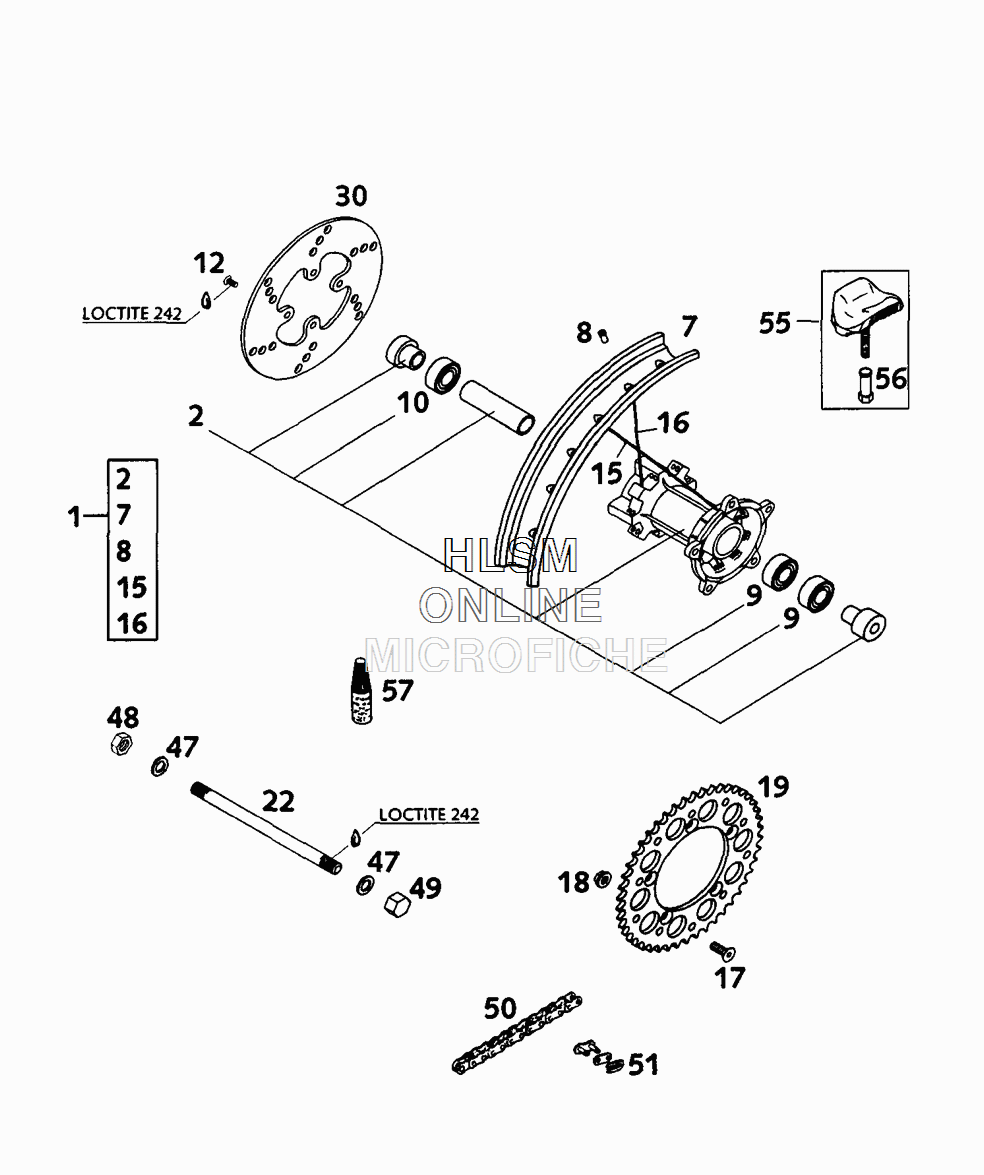

REAR WHEEL для Ktm 65 SX - 2000 года выпуска
-
№АртикулНазвание
-
146010001144 REARWHEEL CPL.1,6X12"REARWHEEL CPL.1,6X12"
-
246010010144 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
746010070000 RIM REAR 1,6X12" ALURIM REAR 1,6X12" ALU
-
846009072000 SPOKE NIPPLE M3,5SPOKE NIPPLE M3,5
-
90625060037 GROOVED BALL BEAR.6003 2RSR.C3GROOVED BALL BEAR.6003 2RSR.C3
-
100625062032 GROOVED BALL BEAR.6203 2RSR.C3GROOVED BALL BEAR.6203 2RSR.C3
-
120991060163 FLAT HEAD SCR. DIN7991-M 6X16FLAT HEAD SCR. DIN7991-M 6X16
-
1546010071100 SPOKE M3,5X127-20G 12" (LEFT)SPOKE M3,5X127-20G 12" (LEFT)
-
1646010171100 SPOKE M3,5X131-27G 12" (RIGHT)SPOKE M3,5X131-27G 12" (RIGHT)
-
170991080253 FLAT HEAD SCREW DIN7991-M 8X25FLAT HEAD SCREW DIN7991-M 8X25
-
1854310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
1946010051044 REAR SPROCKET 44-TREAR SPROCKET 44-T
-
1946010051046 REAR SPROCKET 46-TREAR SPROCKET 46-T
-
2246010085100 AXLE REAR 213MM M12X1AXLE REAR 213MM M12X1
-
3046010060000 BRAKE DISC REAR D=160MMBRAKE DISC REAR D=160MM
-
470125120003 FLAT WASHER DIN0125-A13FLAT WASHER DIN0125-A13
-
480934120103 HEXAGON NUT DIN0934-M12X1HEXAGON NUT DIN0934-M12X1
-
490917120103 NUT DIN917-M12X1NUT DIN917-M12X1
-
5046010065108 CHAIN 1/2X1/4" 108 ROLLENCHAIN 1/2X1/4" 108 ROLLEN
-
5146010066000 CHAIN LOCK 1/2X1/4"CHAIN LOCK 1/2X1/4"
-
5551009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
-
5650310090050 NUT WHEEL HOLDERNUT WHEEL HOLDER
-
576899785 LOCTITE 242 BLUE 6CCMLOCTITE 242 BLUE 6CCM
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR (MIKUNI VM24)
- CLUTCH #1
- CLUTCH #2
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- REAR BRAKE CONTROL
- • REAR WHEEL
- SHIFTING MECHANISM #1
- SHIFTING MECHANISM #2
- SPECIAL TOOL
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION #1
- TRANSMISSION #2
