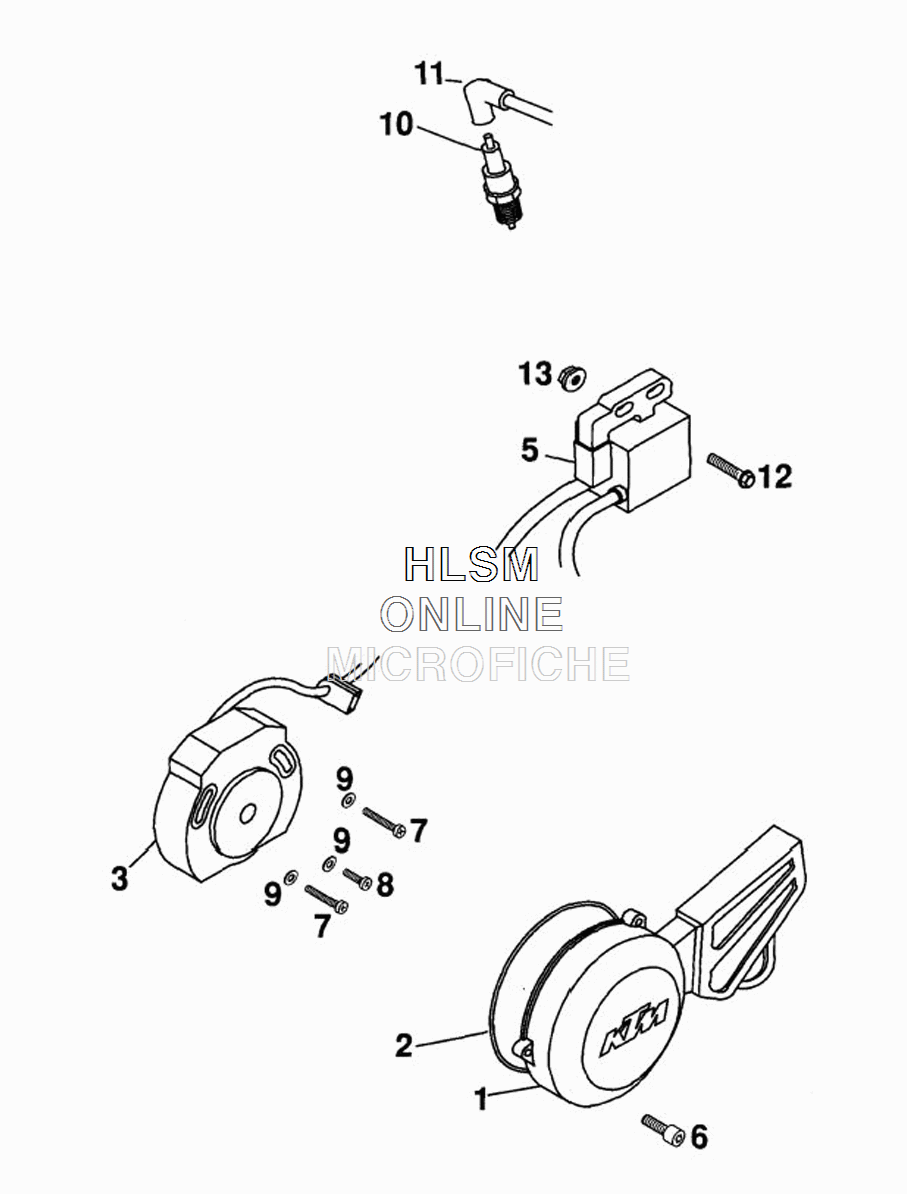

IGNITION SYSTEM для Ktm 65 SX - 2000 года выпуска
-
№АртикулНазвание
-
146030002000 IGNITION COVER (SILVER)IGNITION COVER (SILVER)
-
20770020480 O-RING 120,37X1,78 NBR70O-RING 120,37X1,78 NBR70
-
346039002000 IGNITION SYSTEMIGNITION SYSTEM
-
546039006000 IGNITION COIL CPL.IGNITION COIL CPL.
-
60912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
70985040353 FLAT HEAD SCREW DIN7985-M 4X35FLAT HEAD SCREW DIN7985-M 4X35
-
80985040203 FLAT HEAD SCREW DIN7985-M 4X20FLAT HEAD SCREW DIN7985-M 4X20
-
90125040003 WASHER DIN0125-A 4,0WASHER DIN0125-A 4,0
-
1046039093055 SPARKING PLUG CHAMPION C 55SPARKING PLUG CHAMPION C 55
-
1154531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
120015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1356509064000 SELF LOCKING NUT M6SELF LOCKING NUT M6
