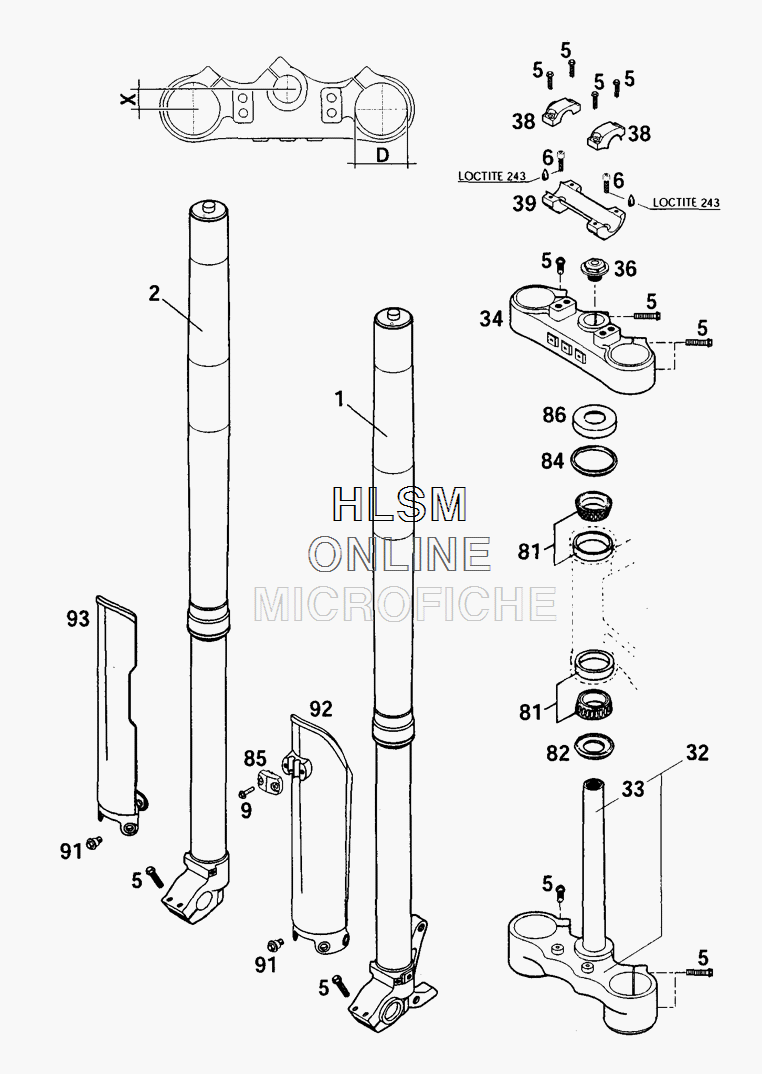

FRONT FORK для Ktm 380 MXC - 2001 года выпуска
-
№АртикулНазвание
-
10518V704LS FORK LEG L/S WPFORK LEG L/S WP
-
20518V704RS FORK LEG R/S WPFORK LEG R/S WP
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60912100250 AH SCREW DIN0912-M10X25 WLOCKAH SCREW DIN0912-M10X25 WLOCK
-
90017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
3259001132020 BOT.TRIPLE CLAMP X=20MM/D=57MMBOT.TRIPLE CLAMP X=20MM/D=57MM
-
3350101033100 FORK TUBE L=244FORK TUBE L=244
-
3459001034020 TOP TRIPLE CLAMP X=20MM/D=54MMTOP TRIPLE CLAMP X=20MM/D=54MM
-
3650301036000 STEER.HEAD SCREW M2OX1,5 SW=27STEER.HEAD SCREW M2OX1,5 SW=27
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3959001039000 HANDLEBAR SUPPORT 22M 2THANDLEBAR SUPPORT 22M 2T
-
8154201081000 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
8254601084100 O-RING SUPPORT W SEALING LIPO-RING SUPPORT W SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8559001085100 CLAMP F.SPEED.CABLE D=6MM (BLACK)CLAMP F.SPEED.CABLE D=6MM (BLACK)
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 SW=8SPECIAL SCREW M6X12,5 SW=8
-
9259001092100 FORK PROTECTION L/S BLACKFORK PROTECTION L/S BLACK
-
9359001093100 FORK PROTECTION R/S BLACKFORK PROTECTION R/S BLACK
