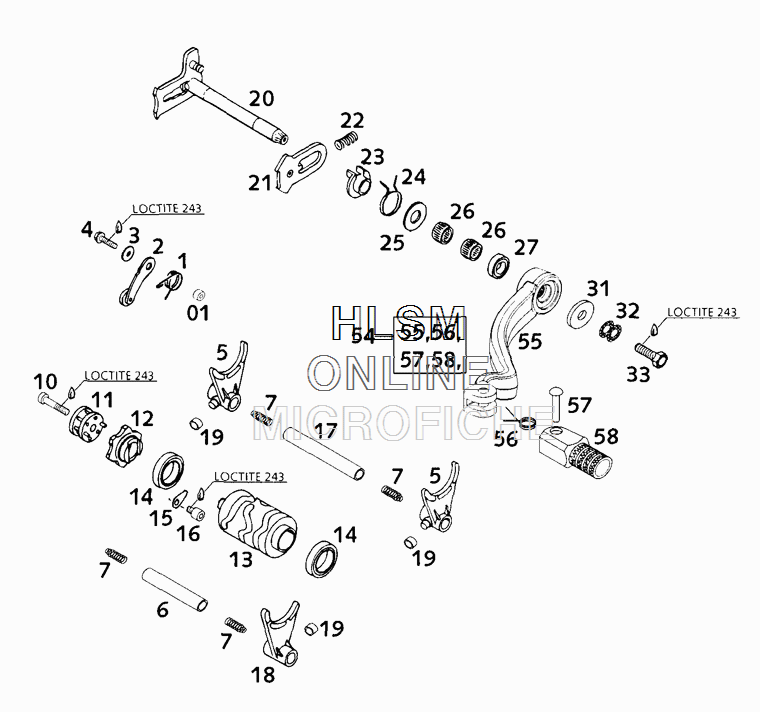

SHIFTING MECHANISM для Ktm 380 MXC - 2001 года выпуска
-
№АртикулНазвание
-
154634023300 LOCKING LEVER SPRING D=2,3MMLOCKING LEVER SPRING D=2,3MM
-
0154634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
254634024144 LOCKING LEVER CPLLOCKING LEVER CPL
-
30021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
40015050203 HH COLLAR SCREW M 5X20 WS=8HH COLLAR SCREW M 5X20 WS=8
-
554734002000 SHIFTING FORK 1./3.GEAR+2.G'SHIFTING FORK 1./3.GEAR+2.G'
-
654734019000 SHIFTING RAIL 75,8MM MAINS.SHIFTING RAIL 75,8MM MAINS.
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
100912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
1154634013044 DRIVER F. SHIFT ROLLER W NEEDLEDRIVER F. SHIFT ROLLER W NEEDLE
-
1254634015000 LOCKING ROLLERLOCKING ROLLER
-
1354734012000 SHIFT ROLLERSHIFT ROLLER
-
140625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
1554634049000 RETAINING PLATERETAINING PLATE
-
160912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
1754734020000 SHIFTING RAIL 96,8MM COUNT.SHIFTING RAIL 96,8MM COUNT.
-
1854734001000 SHIFTING FORK 4./5.GANGSHIFTING FORK 4./5.GANG
-
1950334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
2054634005044 SHIFTING SHAFT CPLSHIFTING SHAFT CPL
-
2154634008000 SLIDING PLATESLIDING PLATE
-
2256534013100 SPANNER SPRING 0,8MMSPANNER SPRING 0,8MM
-
2354634020000 SPRING GUIDESPRING GUIDE
-
2454634014100 RETURN SPRING 2,2MMRETURN SPRING 2,2MM
-
2554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
2654632095000 NEEDLE BEAR.HK 1412 14,6X20X12NEEDLE BEAR.HK 1412 14,6X20X12
-
270760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3150232050001 STEEL WASHER 6X17X3STEEL WASHER 6X17X3
-
3250233041000 PAIR OF WASHERS M6 NORDLOCKPAIR OF WASHERS M6 NORDLOCK
-
330933060165 HH SCREW DIN0933-M 6X16HH SCREW DIN0933-M 6X16
-
5454734031000 SHIFT LEVER CPL. 2-STROKESHIFT LEVER CPL. 2-STROKE
-
5654634032100 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
5754634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
5854634131000 STEP PLATE FOR SHIFT LEVERSTEP PLATE FOR SHIFT LEVER
