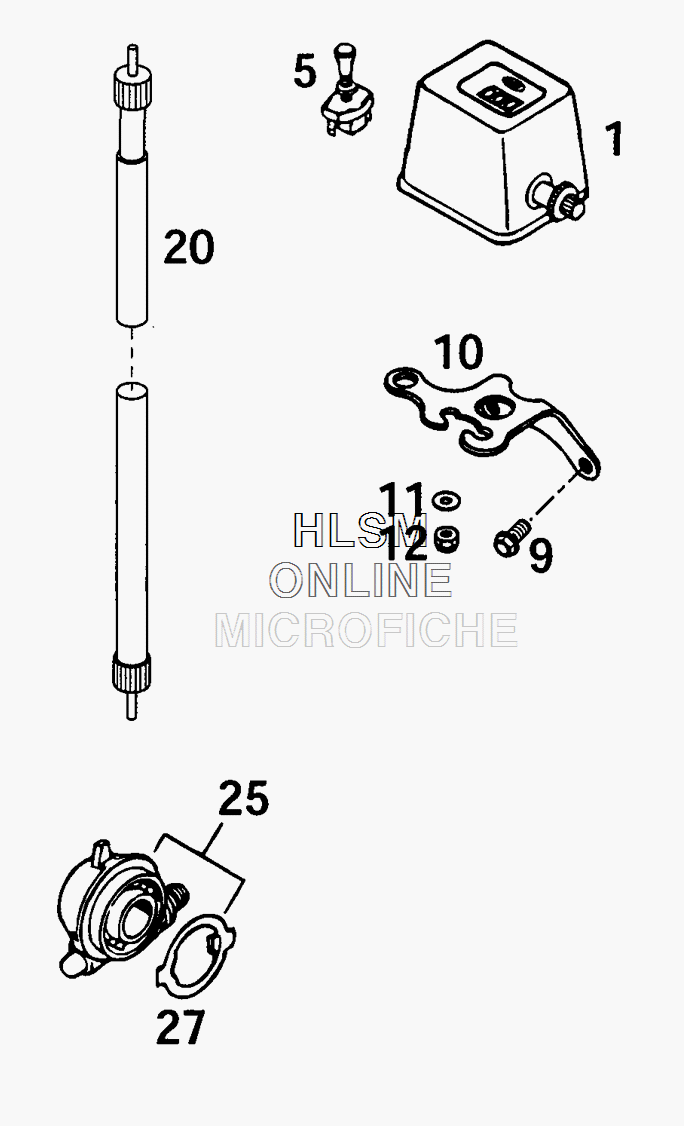

SPEEDOMETER ODOMETER для Ktm 380 MXC - 2001 года выпуска
-
№АртикулНазвание
-
158011180000 ODOMETERODOMETER
-
555011599000 PULL SWITCH LOOSEPULL SWITCH LOOSE
-
90015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
1054611120200 SPEEDOMETER BRACKET VDO/ODOSPEEDOMETER BRACKET VDO/ODO
-
110125040003 WASHER DIN0125-A 4,0WASHER DIN0125-A 4,0
-
120985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
2058414055200 SPEEDOM.CABLE M12/M12 960MMSPEEDOM.CABLE M12/M12 960MM
-
2550314050000 SPEEDOMETER DRIVE 748220 (3.0)SPEEDOMETER DRIVE 748220 (3.0)
-
2750314053000 DRIV.DOG F.SPEEDOM.DRIVEDRIV.DOG F.SPEEDOM.DRIVE
