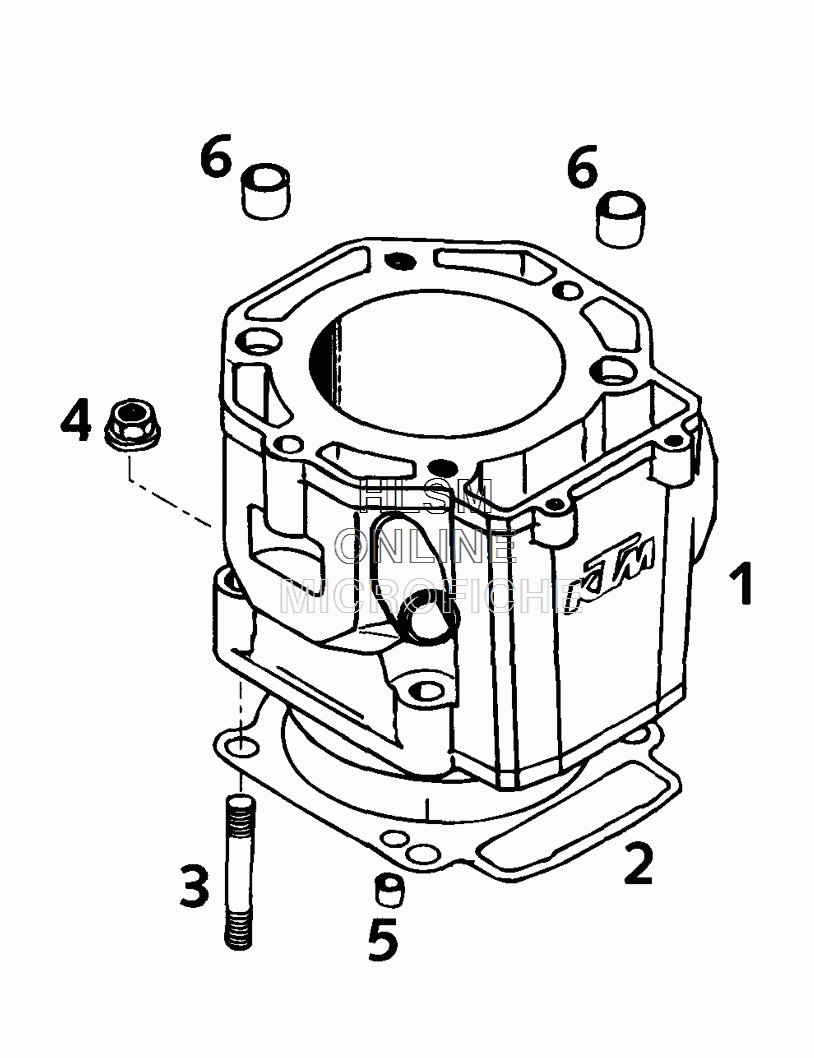

CYLINDER для Ktm LC4 640 Adventure R - 2001 года выпуска
-
№АртикулНазвание
-
158330005100 CYLINDER 101MM BLACKCYLINDER 101MM BLACK
-
258030030100 CYL. BASE GASKET 0,7MM BLACKCYL. BASE GASKET 0,7MM BLACK
-
30835100456 STUD DIN0835-M10X45 (ZINC COATED)STUD DIN0835-M10X45 (ZINC COATED)
-
40331100003 COLLAR NUT DIN6923-M10 WS=15COLLAR NUT DIN6923-M10 WS=15
-
549030090000 DOWEL 9,8X7X10DOWEL 9,8X7X10
-
658330023000 DOWEL 17,0 X 14 X9,5DOWEL 17,0 X 14 X9,5
