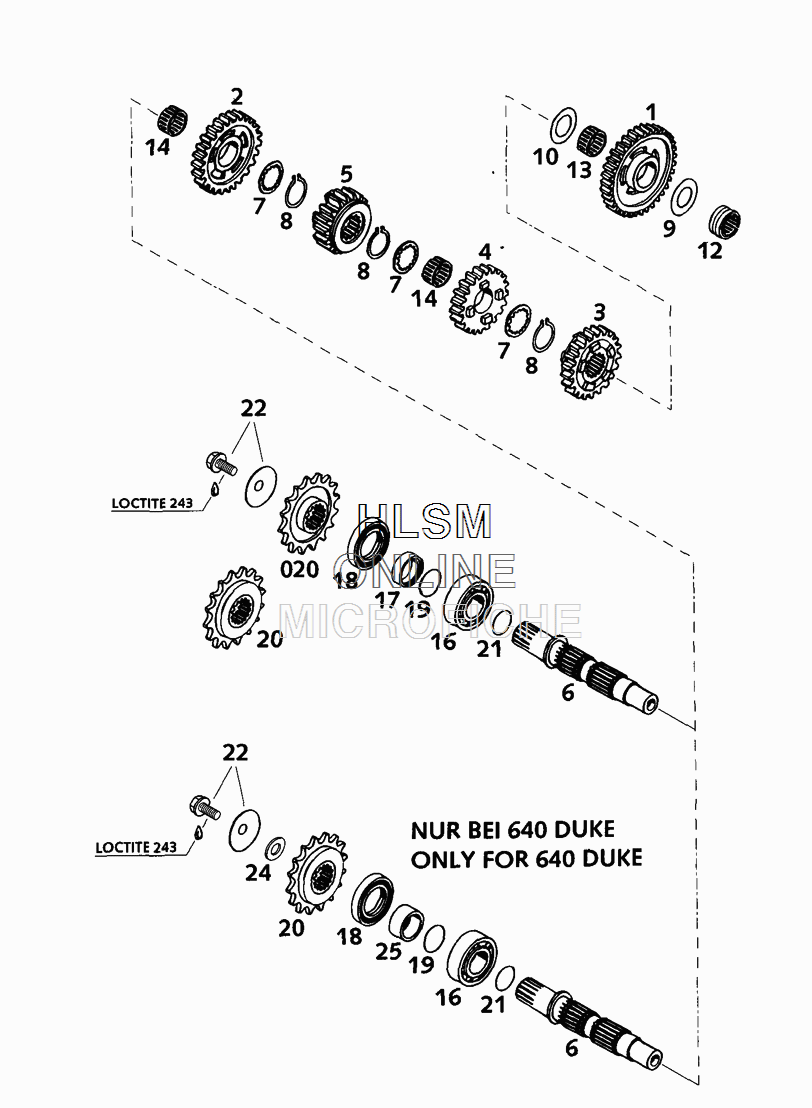

TRANSMISSIONS - COUNTERSHAFT для Ktm LC4 640 Adventure R - 2001 года выпуска
-
№АртикулНазвание
-
156533005300 IDLER GEAR 1.G 35-T (1M3)IDLER GEAR 1.G 35-T (1M3)
-
258333113010 IDLER GEAR 2.G 24-T "10"IDLER GEAR 2.G 24-T "10"
-
358333007003 SLIDING GEAR 3.G 21-T "03"SLIDING GEAR 3.G 21-T "03"
-
458333009005 IDLER GEAR 4.G 19-T "05"IDLER GEAR 4.G 19-T "05"
-
558333011009 SLIDING GEAR 5.G 18-T "09"SLIDING GEAR 5.G 18-T "09"
-
658333003000 COUNTERSHAFTCOUNTERSHAFT
-
756533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
956533015000 STOP DISK 20,2 X 35 X 1STOP DISK 20,2 X 35 X 1
-
1056533018300 STOP DISK 22,2 X 35 X 1,5STOP DISK 22,2 X 35 X 1,5
-
1256533093000 NEEDLE BEARING RNA 4902 KSENEEDLE BEARING RNA 4902 KSE
-
1356533098000 NEEDLE BEARING K 22 X 26 X 13HNEEDLE BEARING K 22 X 26 X 13H
-
1456533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
1649030023000 CYL.ROLL BEARING NJ205 C3CYL.ROLL BEARING NJ205 C3
-
1758033017000 SPACER BUSHING 25 X 32 X 9SPACER BUSHING 25 X 32 X 9
-
180760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
190770250021 O-RING 25,00X2,00 SILICONO-RING 25,00X2,00 SILICON
-
2058033029014 ENGINE SPROCKET 14 TENGINE SPROCKET 14 T
-
2058033029015 ENGINE SPROCKET 15 TENGINE SPROCKET 15 T
-
2058033029016 ENGINE SPROCKET 16 TENGINE SPROCKET 16 T
-
2058033029017 ENGINE SPROCKET 17 TENGINE SPROCKET 17 T
-
2058033029115 ENGINE SPROCKET 15 T DAMPEDENGINE SPROCKET 15 T DAMPED
-
2058033029116 ENGINE SPROCKET 16 T DAMPEDENGINE SPROCKET 16 T DAMPED
-
2058033029117 ENGINE SPROCKET 17 T DAMPEDENGINE SPROCKET 17 T DAMPED
-
210770220010 O-RING 22,00X1,00 NBR 70O-RING 22,00X1,00 NBR 70
-
2259033034044 SCREW+SPRING WASHERSCREW+SPRING WASHER
-
240125100003 WASHER DIN0125-A10,5 (ONLY FOR 640 DUKE)WASHER DIN0125-A10,5 (ONLY FOR 640 DUKE)
-
2554633014100 SPACER BUSHING 12 MM (ONLY FOR 640 DUKE)SPACER BUSHING 12 MM (ONLY FOR 640 DUKE)
