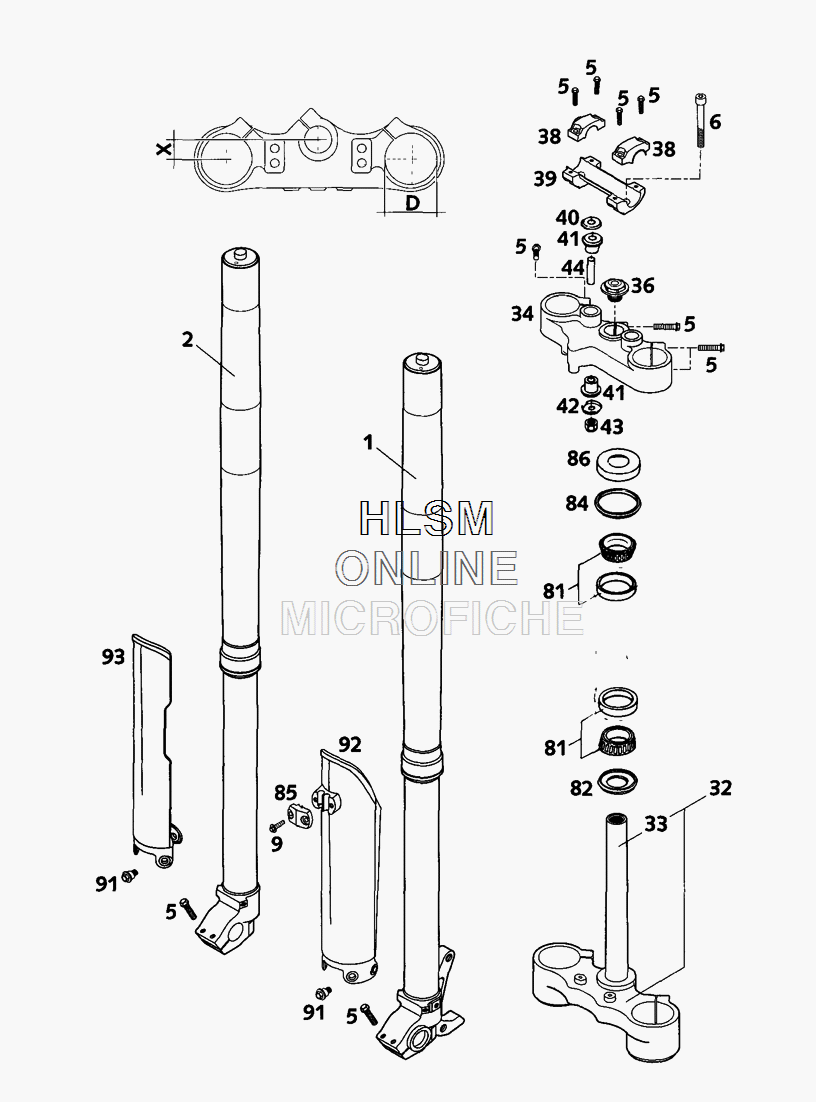

FRONT FORK для Ktm LC4 640 Adventure R - 2001 года выпуска
-
№АртикулНазвание
-
11418V704LS FORK LEG L/S USD 48FORK LEG L/S USD 48
-
21418V704RS FORK LEG R/S USD 48FORK LEG R/S USD 48
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
90017060203 SPECIAL SCREW T60 6X20SPECIAL SCREW T60 6X20
-
3258201032018 BOT.TRIPLE CLAMP USD 48BOT.TRIPLE CLAMP USD 48
-
3350101033100 FORK TUBE L=244FORK TUBE L=244
-
3458401034218 TOP TRIPLE CLAMP X=18MM/D=54MMTOP TRIPLE CLAMP X=18MM/D=54MM
-
3650301036000 STEER.HEAD SCREW M20X1,5 SW=27STEER.HEAD SCREW M20X1,5 SW=27
-
3850301038000 HANDLEBAR CLAMP D=22MMHANDLEBAR CLAMP D=22MM
-
3859001038200 HANDLEBAR CLAMP D=28MM (SX)HANDLEBAR CLAMP D=28MM (SX)
-
3959001039000 HANDLEBAR SUPPORT 22M 2THANDLEBAR SUPPORT 22M 2T
-
3959001039100 HANDLEBAR SUPPORT 28MM (SX)HANDLEBAR SUPPORT 28MM (SX)
-
4056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
4156401040000 RUBBER BUSHINGRUBBER BUSHING
-
4256401142000 WASHER 10,5X31WASHER 10,5X31
-
430985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
4456401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
8154201081000 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8558201085000 CLAMP FSPEED CABLE D=8MM 2001 (BLACK)CLAMP FSPEED CABLE D=8MM 2001 (BLACK)
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 SW=8SPECIAL SCREW M6X12,5 SW=8
-
9259001092100 FORK PROTECTION L/S BLACKFORK PROTECTION L/S BLACK
-
9359001093100 FORK PROTECTION R/S BLACKFORK PROTECTION R/S BLACK
