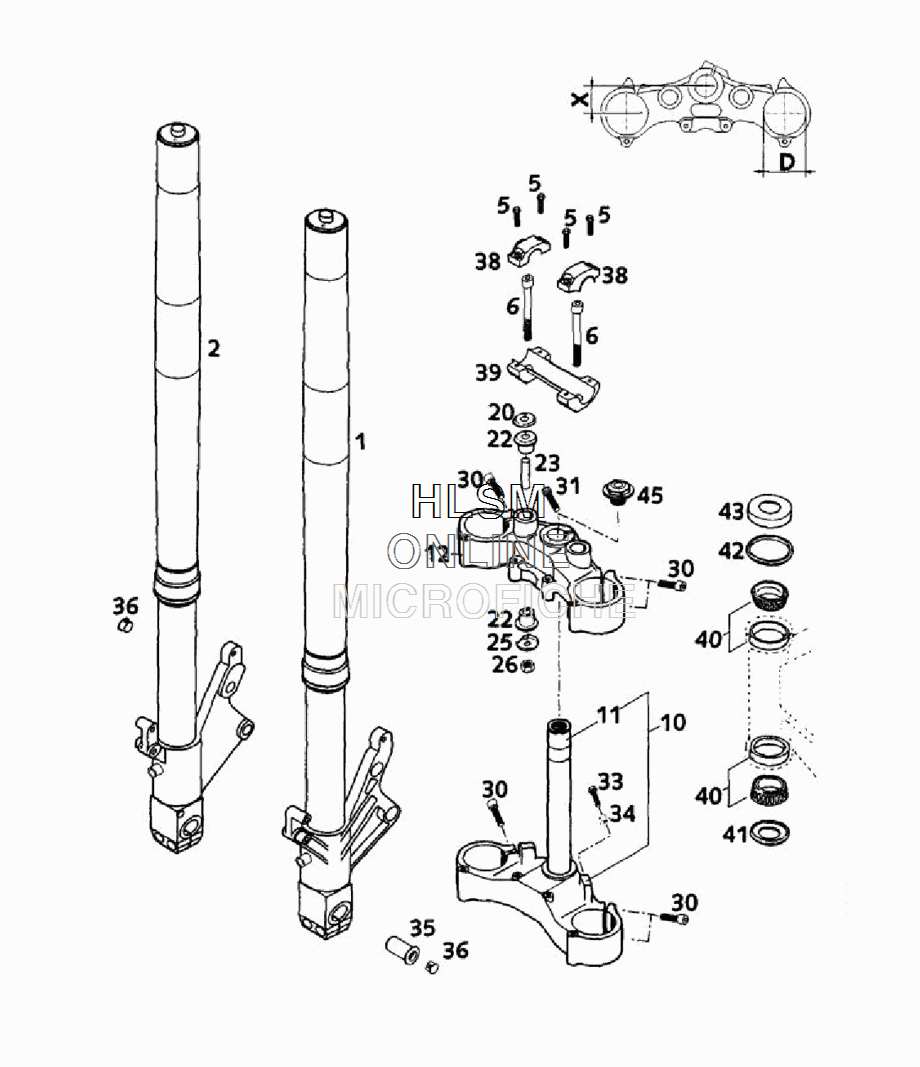

FRONT FORK для Ktm LC4 640 Duke II - 2001 года выпуска
-
№АртикулНазвание
-
10518U795LS FORK LEG L/S WPFORK LEG L/S WP
-
10518V798LS FORK LEG WP L/S (BLACK)FORK LEG WP L/S (BLACK)
-
20518U795RS FORK LEG R/S WPFORK LEG R/S WP
-
20518V798RS FORK LEG WP R/S (BLACK)FORK LEG WP R/S (BLACK)
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
60984100703 AH SCREW DIN6912-M10X70AH SCREW DIN6912-M10X70
-
1058701032000 BOT.TRIPLE CLAMP X=35MM/D=54MM (BLACK)BOT.TRIPLE CLAMP X=35MM/D=54MM (BLACK)
-
1150101033100 FORK TUBE L=244FORK TUBE L=244
-
1258701034000 TOP TRIPLE CLAMP X=35MM/D=54MM (BLACK)TOP TRIPLE CLAMP X=35MM/D=54MM (BLACK)
-
2056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
2256401040000 RUBBER BUSHINGRUBBER BUSHING
-
2356401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
2556401142000 WASHER 10,5X31WASHER 10,5X31
-
260985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
300912080353 AH SCREW DIN0912-M 8X35AH SCREW DIN0912-M 8X35
-
310912080253 AH SCREW DIN0912-M 8X25AH SCREW DIN0912-M 8X25
-
330933070253 HH SCREW DIN0933-M 7X25HH SCREW DIN0933-M 7X25
-
340934070003 HEXAGON NUT DIN0934-M 7HEXAGON NUT DIN0934-M 7
-
3558309082000 AXLE NUT M17 X 1,5AXLE NUT M17 X 1,5
-
3658301098000 PLASTIC CAP 3/8 2663PLASTIC CAP 3/8 2663
-
3859001038200 HANDLEBAR CLAMP D=28MMHANDLEBAR CLAMP D=28MM
-
3959001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
4054201081000 TAPERED ROLLER BEARINGTAPERED ROLLER BEARING
-
4154601084100 O-RING SUPPORT W SEALING LIPO-RING SUPPORT W SEALING LIP
-
4254601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
4354201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
4550301036000 STEER.HEAD SCREW M20X1,5 SW=27STEER.HEAD SCREW M20X1,5 SW=27
