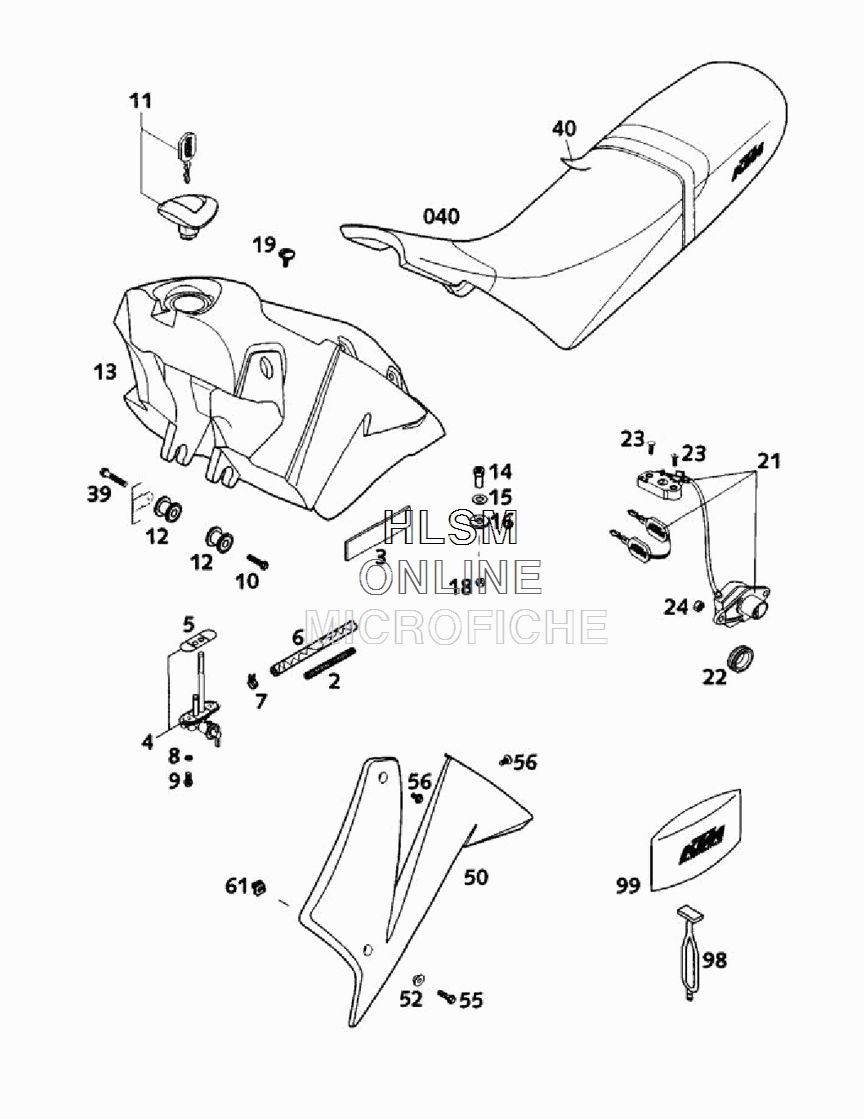

TANK - SEAT - COVER для Ktm LC4 640 Duke II - 2001 года выпуска
-
№АртикулНазвание
-
258036006100 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
354601097000 RUBBER STRIP 85X25X3 MMRUBBER STRIP 85X25X3 MM
-
451107004000 FUEL COCK CPL.MIKUNI CK-69FUEL COCK CPL.MIKUNI CK-69
-
558307106100 GASKET FUEL COCK MIKUNIGASKET FUEL COCK MIKUNI
-
654435024001 HOSE ID 7,5 PER METERHOSE ID 7,5 PER METER
-
758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
80603061001 CU-SEAL RING DIN7603- 6X10X1CU-SEAL RING DIN7603- 6X10X1
-
90015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
100015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
1158407008100 TANK PLUG LC4 USA (WITH TANK AERATION)TANK PLUG LC4 USA (WITH TANK AERATION)
-
1258307113250 TANK BUSHING CPL. 12 X 34 X 25TANK BUSHING CPL. 12 X 34 X 25
-
1358407013144 FUEL TANK CPL.11 LI. BLACKFUEL TANK CPL.11 LI. BLACK
-
1458307014000 SPECIAL NUT M8SPECIAL NUT M8
-
1558307019000 WASHER 10,5 X 25 X 1,5WASHER 10,5 X 25 X 1,5
-
1651005067100 INSOLATE WASHER 12X28X3INSOLATE WASHER 12X28X3
-
180934080003 HEXAGON NUT 01N0934-M 8HEXAGON NUT 01N0934-M 8
-
1958407011000 SCREW FOR SEATSCREW FOR SEAT
-
2158707050000 SEAT LOCKSEAT LOCK
-
2258707050050 RUBBER SLEEVE F.SEAT LOCKRUBBER SLEEVE F.SEAT LOCK
-
230991050253 FLAT HEAD SCREW DIN7991-M 5X25FLAT HEAD SCREW DIN7991-M 5X25
-
390015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
04058707040200 SEAT TITAN/BLACKSEAT TITAN/BLACK
-
04058707040300 SEAT LIME/BLACKSEAT LIME/BLACK
-
04058707040500 SEAT RED/BLACKSEAT RED/BLACK
-
4058707040050 SEAT COVER TITAN/SCHW.SEAT COVER TITAN/SCHW.
-
4058707040150 SEAT COVER LIME/BLACKSEAT COVER LIME/BLACK
-
4058707040550 SEAT COVER RED/BLACKSEAT COVER RED/BLACK
-
5058408050000 SPOILER L/S TITAN/METALSPOILER L/S TITAN/METAL
-
505840805000036 SPOILER L/S LIME/METALSPOILER L/S LIME/METAL
-
505840805000045 SPOILER L/S (RED)SPOILER L/S (RED)
-
5058408051000 SPOILER R/S TITAN/METALSPOILER R/S TITAN/METAL
-
505840805100036 SPOILER R/S LIME/METALSPOILER R/S LIME/METAL
-
505840805100045 SPOILER R/S (RED)SPOILER R/S (RED)
-
5250308052000 BUSH FOR SPOILER 6X11X16X5BUSH FOR SPOILER 6X11X16X5
-
550015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
560014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6150235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
9850303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
9958729099000 TOOL SET DUKETOOL SET DUKE
