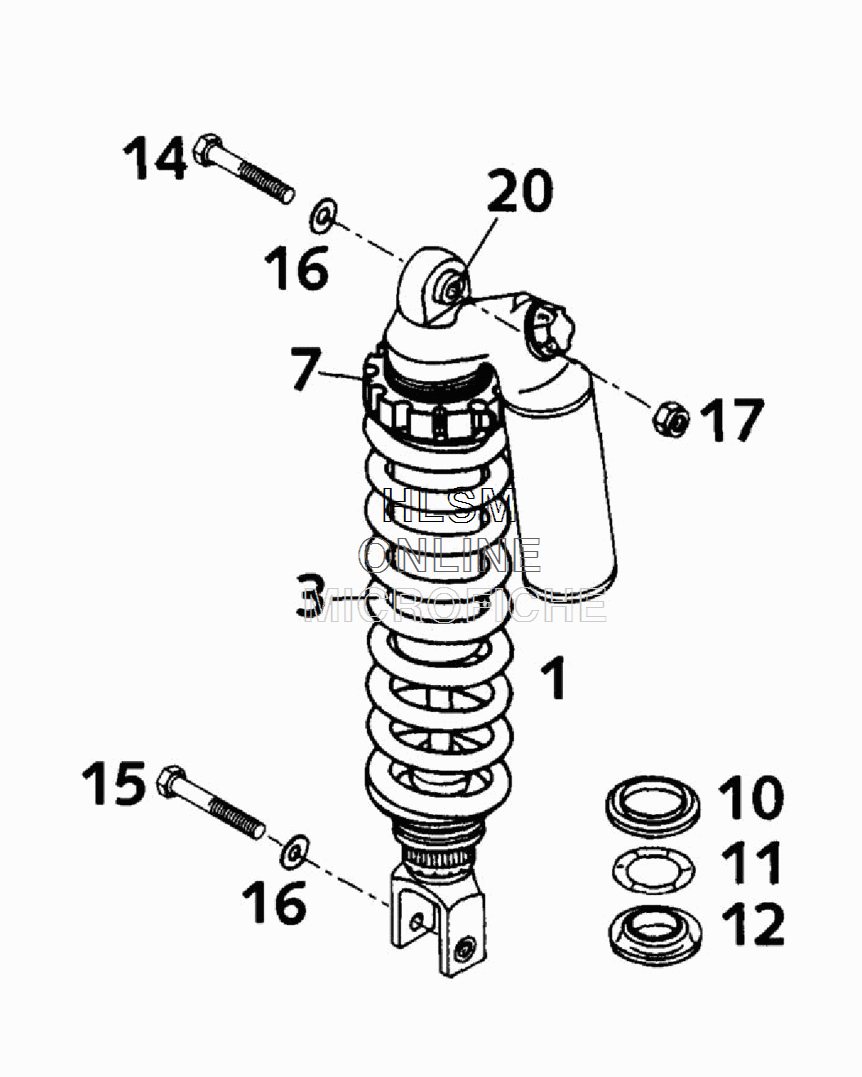

SHOCK ABSORBER для Ktm LC4 640 Duke II - 2001 года выпуска
-
№АртикулНазвание
-
158404010000 MONOSHOCK WP 118Q785MONOSHOCK WP 118Q785
-
358304011070 SPRING WP 70-260SPRING WP 70-260
-
758304109000 ADJUSTING RINGADJUSTING RING
-
1058304017000 RING FOR SHOCK ABSORBERRING FOR SHOCK ABSORBER
-
1158304090000 O-RING 32 X 8O-RING 32 X 8
-
1258304018000 O-RING CARRIER 14MM HIGHO-RING CARRIER 14MM HIGH
-
1456503086000 SPECIAL SCREW M10X47 10.9SPECIAL SCREW M10X47 10.9
-
1556503093000 SPECIAL SCREW M10X55 10.9SPECIAL SCREW M10X55 10.9
-
160125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1754310086100 SELF LOCKING NUT M10 CU WS=14SELF LOCKING NUT M10 CU WS=14
-
2054204020100 BUSHING CPL. D=24MM B=24MMBUSHING CPL. D=24MM B=24MM
