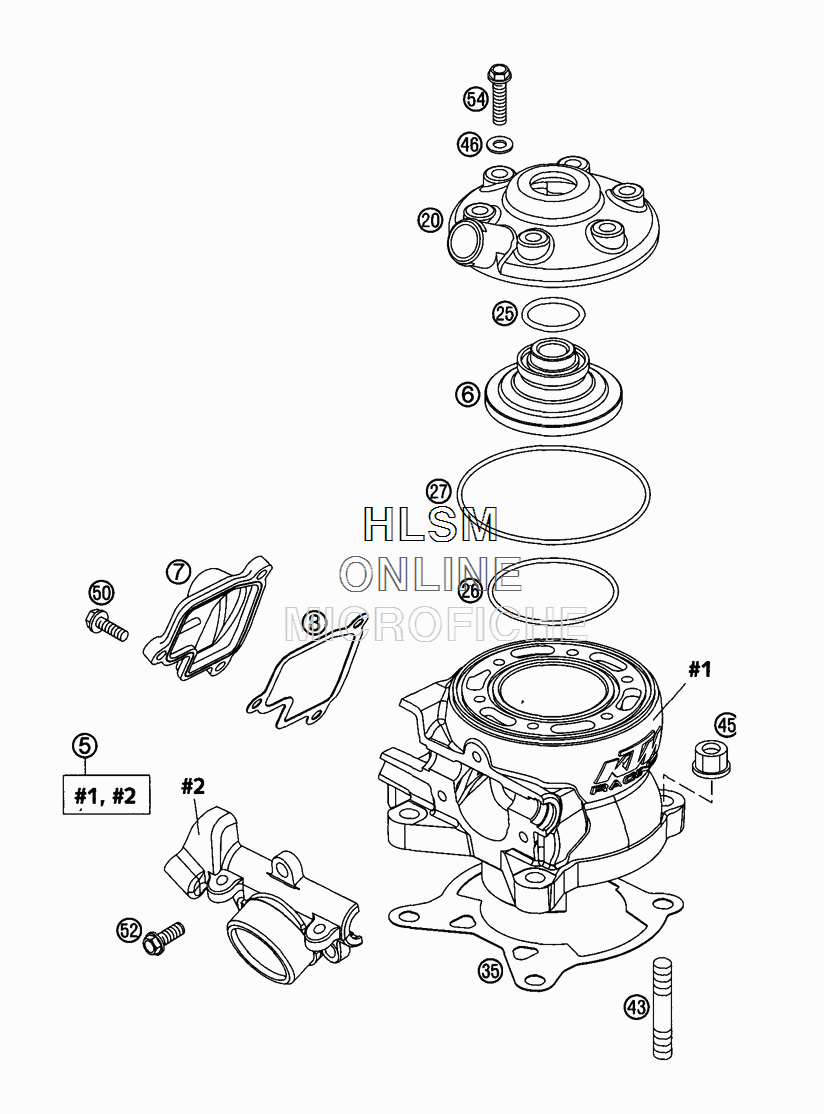

CYLINDER для Ktm 85 SX - 2003 года выпуска
-
№АртикулНазвание
-
547030005044 CYLINDER W. FLANGECYLINDER W. FLANGE
-
647030106000 CYLINDER HEAD INSERTCYLINDER HEAD INSERT
-
747037007000 CONTROL COVERCONTROL COVER
-
847037008000 GASKET FOR CONTROL COVERGASKET FOR CONTROL COVER
-
2047030006000 CYLINDER HEADCYLINDER HEAD
-
250770220025 O-RING 22,00X2,5 VITON 75SHO-RING 22,00X2,5 VITON 75SH
-
260770540020 O-RING 54X2 VITONO-RING 54X2 VITON
-
270770820020 O-RING 82X2 SILICONEO-RING 82X2 SILICONE
-
3547030035000 CYLINDER BASE GASKETCYLINDER BASE GASKET
-
430835080220 STUD DIN0835- M8X22STUD DIN0835- M8X22
-
4546030045000 COLLAR NUT M8 WS=10COLLAR NUT M8 WS=10
-
460603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
500015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
520015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
540015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
