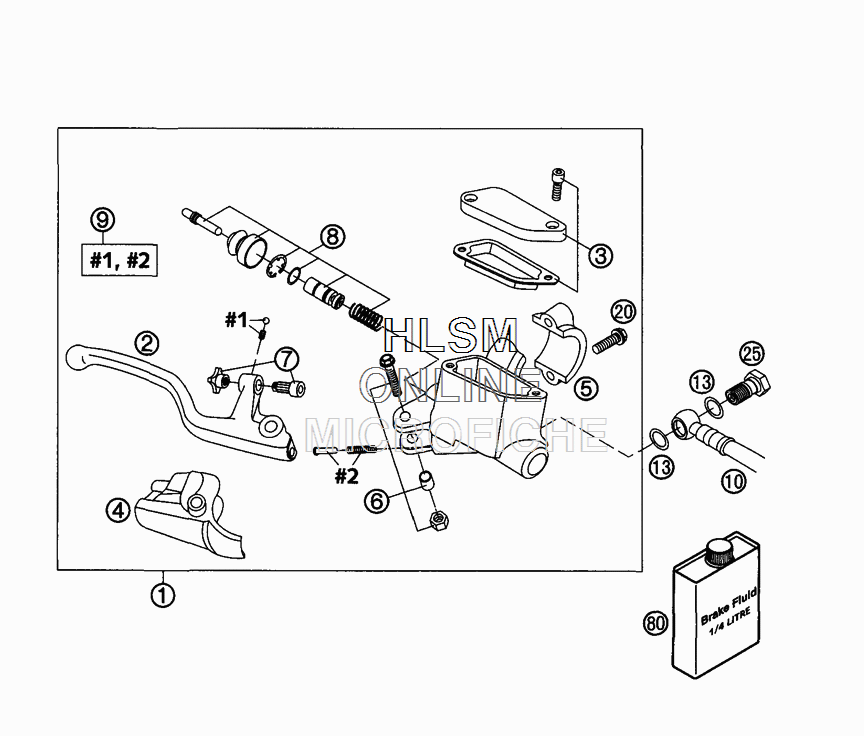

HAND BRAKE CYLINDER для Ktm 85 SX - 2003 года выпуска
-
№АртикулНазвание
-
147013001000 HAND BRAKE CYL. CPL.HAND BRAKE CYL. CPL.
-
247013002000 BRAKE LEVER LOOSEBRAKE LEVER LOOSE
-
347013003000 CYLINDER COVER CPL.CYLINDER COVER CPL.
-
447013004000 PROTECTION COVERPROTECTION COVER
-
547013005000 CLAMP FOR BRAKE CYLINDERCLAMP FOR BRAKE CYLINDER
-
647013006000 SCREW+BUSHING+NUTSCREW+BUSHING+NUT
-
747013007000 ADJUSTING SCREW CPL.ADJUSTING SCREW CPL.
-
847013008000 REP.SET PISTON FRONTREP.SET PISTON FRONT
-
947013009000 BALL+SPRING+SPRING GUIDEBALL+SPRING+SPRING GUIDE
-
1047013010000 BRAKE HOSE FRONTBRAKE HOSE FRONT
-
130770080019 O-RING 8,00X1,00 EPDMO-RING 8,00X1,00 EPDM
-
200015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2547013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
