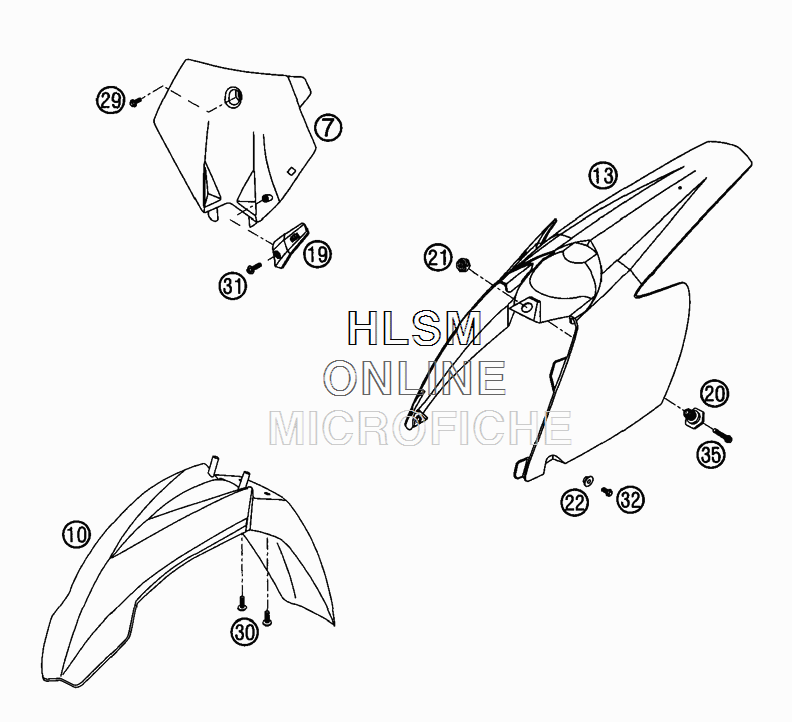

MASK W/ FENDERS для Ktm 85 SX - 2003 года выпуска
-
№АртикулНазвание
-
74700800700004 NUMBER PLATENUMBER PLATE
-
104700801000004 FENDER FRONTFENDER FRONT
-
134700801300004 REAR PARTREAR PART
-
1954808019000 BRAKE HOSE GUIDE BLACKBRAKE HOSE GUIDE BLACK
-
2054807048000 BUSHING FOR SEAT FASTENINGBUSHING FOR SEAT FASTENING
-
2150314057050 COLLAR NUT M12X1 WS=17 H=5MMCOLLAR NUT M12X1 WS=17 H=5MM
-
2250308052000 BUSH FOR SPOILER 6X11X16X5BUSH FOR SPOILER 6X11X16X5
-
290014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
300014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
310017060204 SPECIAL SCR. T60 6X20 ALU WS=6SPECIAL SCR. T60 6X20 ALU WS=6
-
320015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
350015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR KEIHIN PWK 28
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST CONTROL
- EXHAUST SYSTEM
- FORK FORK
- FORK LEGS - 43
- FRAME - SUB FRAME
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROL
- IGNITION SYSTEM
- KICKSTARTER
- • MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- REED VALVE CASE
- SEAT - TANK - SPOILER
- SHIFTING MECHANISM
- SHOCK ABSORBER - DIASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
