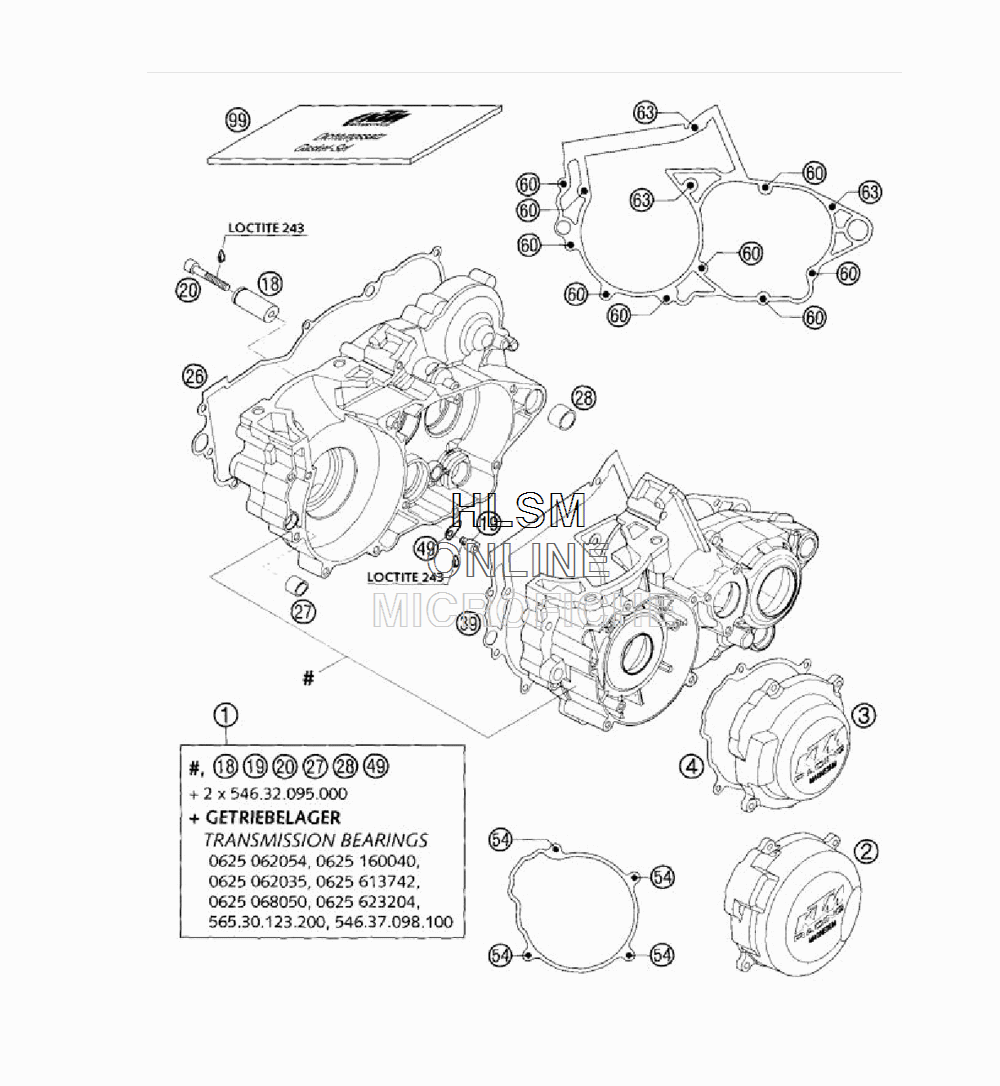

ENGINE CASE для Ktm 250 SX - 2004 года выпуска
-
№АртикулНазвание
-
154830000044 ENGINE CASE CPL. WITH BEAR.ENGINE CASE CPL. WITH BEAR.
-
254830002000 IGNITION COVERIGNITION COVER
-
35483000210098 IGNITION COVER SXIGNITION COVER SX
-
454830040000 IGNITI.COVER GASKETIGNITI.COVER GASKET
-
1859033018000 BUSHING PINBUSHING PIN
-
190912060083 AH SCREW DIN0912-M 6X 8AH SCREW DIN0912-M 6X 8
-
200912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
2654830024000 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2854830027000 DOWEL 21X12DOWEL 21X12
-
3954830039000 ENGINE CASE GASKETENGINE CASE GASKET
-
4954634049000 RETAINING PLATERETAINING PLATE
-
540014050163 HH COLLAR SCREW M 5X16 WS=6HH COLLAR SCREW M 5X16 WS=6
-
600015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
630015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
9954830099000 GASKET SETGASKET SET
